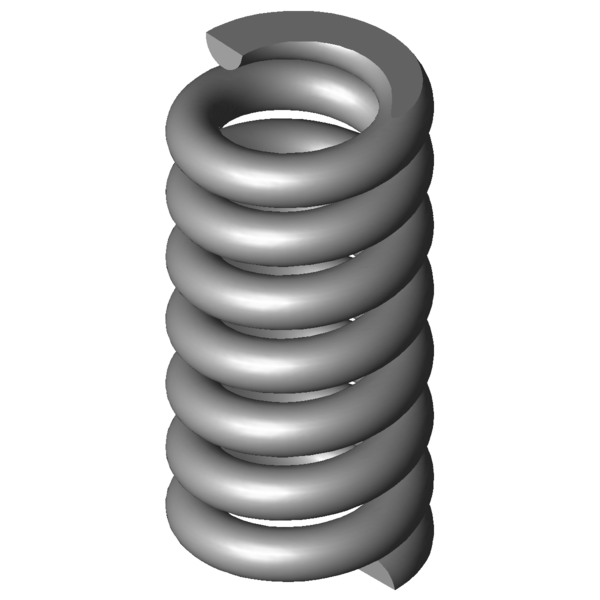

Home » Products » Compression springs » vd-339t Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339T Stainless steel Ø 4.5 x 17.5 x 44.9 mm Scaled prices - Compression spring VD-339T Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0700 EUR 175 2.0700 EUR 250 2.0700 EUR 350 2.0700 EUR Compression spring Buy Product image Compression spring VD-339T Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339T Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 17.5 mm Mean coil diameter De 22 mm Outer coil diameter Dd 12.1 mm maximum diameter of mandrel Dh 23.1 mm minimum diameter of bush L0 44.9 mm unstressed spring length Lk mm buckling length Fn 987.624 N maximum force in static use Ln 36.79 mm Minimum length in static use sn 8.11 mm Maximum spring deflection in static use Fndyn 802.171 N maximum force in dynamic use Lndyn 38.31 mm Minimum length in dynamic use shdyn 2.74 mm Maximum stroke in dynamic use S 7.345 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 121.725 N/mm Spring rate Weight 51.8376 g weight of one spring Fntol 114.9 N (+/-) tolerance of maximum force in static use Fndtol 130 N (+/-) tolerance of maximum dynamic force Detol 0.66 mm (+/-) tolerances of outer coil diameter L0tol 2.24 mm (+/-) tolerance of unstressed spring length Price group #AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339T Stainless steel Ø 4.5 x 17.5 x 44.9 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339T Stainless steel Ø 4.5 x 17.5 x 44.9 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339T Stainless steel Ø 4.5 x 17.5 x 44.9 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339T Stainless steel Ø 4.5 x 17.5 x 44.9 mm force-path-calculation Compression spring VD-339T Inquiry formular Compression spring VD-339T Stainless steel Ø 4.5 x 17.5 x 44.9 mm Inquiry formular Compression spring VD-339T Similar compression springs to Compression spring VD-339T Stainless steel Ø 4.5 x 17.5 x 44.9 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339T 1.4310 4.5 22 44.9 987.624 36.79 8.11 5.5 121.725 100.0 | 100.0 | 100.0 | 100.0 D-339T EN 10270-1 4.5 22 44.9 1149.877 36.79 8.11 5.5 141.723 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-274A 22.5 40 7.768 1.4310 144.137 21.45 18.56 38.8 | 80.8 | 29.1 | 6.4 VD-263VB 20 41.1 8.029 1.4310 172.303 19.64 21.46 37.4 | 77.9 | 27.6 | 6.6 VD-283A-05 18 45 8.741 1.4310 84.018 35.39 9.61 44.2 | 79.1 | 46.4 | 7.2 VD-288ZA 21.5 45 20.352 1.4310 405.192 25.09 19.91 48.5 | 88.1 | 40.9 | 16.7 VD-304A 23.2 42 20.852 1.4310 317.138 26.79 15.21 48.8 | 86.5 | 42.7 | 17.1 VD-305 23.2 49.5 20.852 1.4310 473.531 26.79 22.71 48.2 | 85.5 | 41.8 | 17.1 VD-288Z-51 21 41.4 22.096 1.4310 361.468 25.04 16.36 48.7 | 84.8 | 43.1 | 18.1 VD-288X-05 19.4 44 22.961 1.4310 418.243 25.78 18.22 48.6 | 83.5 | 43.4 | 18.8 VD-313K-01 25 43 29.992 1.4310 451.258 27.95 15.05 54.1 | 87.9 | 49.8 | 24.6 VD-313A-05 19.5 44 36.159 1.4310 437.244 31.91 12.09 57.3 | 86.7 | 55.7 | 29.7 VD-336 24 49 50.909 1.4310 813.273 33.03 15.98 66.4 | 90.7 | 66.5 | 41.8 VD-339A-01 21.5 50 64.301 1.4310 813.639 37.35 12.65 72.7 | 92.1 | 73.2 | 52.8 VD-339A-02 21 40 82.897 1.4310 597.184 32.8 7.2 78.0 | 91.1 | 74.6 | 68.1 VD-339C 20 40.6 99.432 1.4310 782.727 32.73 7.87 86.6 | 90.1 | 88.1 | 81.7 VD-339T 22 44.9 121.725 1.4310 987.624 36.79 8.11 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202081; Compression spring VD-339T Country of origin: DE, German; Compression spring VD-339T Product image - Compression springs VD-339T QR-Code: Compression spring VD-339T
