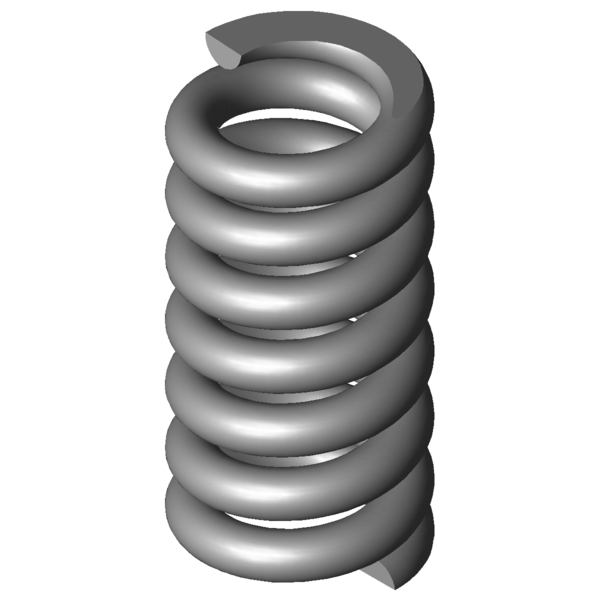

Home » Products » Compression springs » vd-339c Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339C Stainless steel Ø 4 x 16 x 40.6 mm Scaled prices - Compression spring VD-339C Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0700 EUR 175 2.0700 EUR 250 2.0700 EUR 350 2.0700 EUR Compression spring Buy Product image Compression spring VD-339C Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339C Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 16 mm Mean coil diameter De 20 mm Outer coil diameter Dd 11.2 mm maximum diameter of mandrel Dh 21 mm minimum diameter of bush L0 40.6 mm unstressed spring length Lk mm buckling length Fn 782.727 N maximum force in static use Ln 32.73 mm Minimum length in static use sn 7.87 mm Maximum spring deflection in static use Fndyn 646.307 N maximum force in dynamic use Lndyn 34.1 mm Minimum length in dynamic use shdyn 2.61 mm Maximum stroke in dynamic use S 6.655 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 99.432 N/mm Spring rate Weight 37.4474 g weight of one spring Fntol 106.1 N (+/-) tolerance of maximum force in static use Fndtol 103.7 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.8 mm (+/-) tolerance of unstressed spring length Price group #AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339C Stainless steel Ø 4 x 16 x 40.6 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339C Stainless steel Ø 4 x 16 x 40.6 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339C Stainless steel Ø 4 x 16 x 40.6 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339C Stainless steel Ø 4 x 16 x 40.6 mm force-path-calculation Compression spring VD-339C Inquiry formular Compression spring VD-339C Stainless steel Ø 4 x 16 x 40.6 mm Inquiry formular Compression spring VD-339C Similar compression springs to Compression spring VD-339C Stainless steel Ø 4 x 16 x 40.6 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339C 1.4310 4 20 40.6 782.727 32.73 7.87 5.5 99.432 100.0 | 100.0 | 100.0 | 100.0 D-339C EN 10270-1 4 20 40.6 911.318 32.73 7.87 5.5 115.767 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-280 18.5 41 15.172 1.4310 303.9 20.97 20.03 46.3 | 84.7 | 39.1 | 15.3 VD-288Q 20 39.5 19.217 1.4310 309.174 23.41 16.09 50.9 | 89.1 | 44.2 | 19.3 VD-288ZA 21.5 45 20.352 1.4310 405.192 25.09 19.91 50.7 | 86.1 | 45.6 | 20.5 VD-304A 23.2 42 20.852 1.4310 317.138 26.79 15.21 51.6 | 87.6 | 46.1 | 21.0 VD-288Z-51 21 41.4 22.096 1.4310 361.468 25.04 16.36 52.9 | 89.4 | 47.1 | 22.2 VD-288X-05 19.4 44 22.961 1.4310 418.243 25.78 18.22 52.9 | 87.3 | 48.3 | 23.1 VD-288Z-56 20 39.5 24.043 1.4310 308.548 26.67 12.83 55.1 | 90.8 | 50.4 | 24.2 VD-288ZB 19.5 40 26.296 1.4310 351.926 26.62 13.38 56.2 | 90.3 | 51.9 | 26.4 VD-288X-04 19.4 38 30.615 1.4310 468.411 22.7 15.3 58.0 | 87.7 | 55.6 | 30.8 VD-313A-05 19.5 44 36.159 1.4310 437.244 31.91 12.09 62.5 | 90.8 | 60.5 | 36.4 VD-310 19.2 40 40.727 1.4310 553.076 26.42 13.58 65.6 | 91.5 | 64.3 | 40.9 VD-313A-04 19.5 38 44.377 1.4310 478.333 27.22 10.78 67.6 | 91.2 | 67.1 | 44.6 VD-339A-02 21 40 82.897 1.4310 597.184 32.8 7.2 88.4 | 97.9 | 83.9 | 83.4 VD-313P 18 36.8 89.489 1.4310 657.276 29.46 7.34 89.6 | 90.2 | 88.6 | 90.0 VD-339C 20 40.6 99.432 1.4310 782.727 32.73 7.87 100.0 | 100.0 | 100.0 | 100.0 VD-339E-01 19 35 147.49 1.4310 1005.926 28.18 6.82 81.1 | 93.7 | 82.2 | 67.4 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring VD-339C Country of origin: DE, German; Compression spring VD-339C Product image - Compression springs VD-339C QR-Code: Compression spring VD-339C
