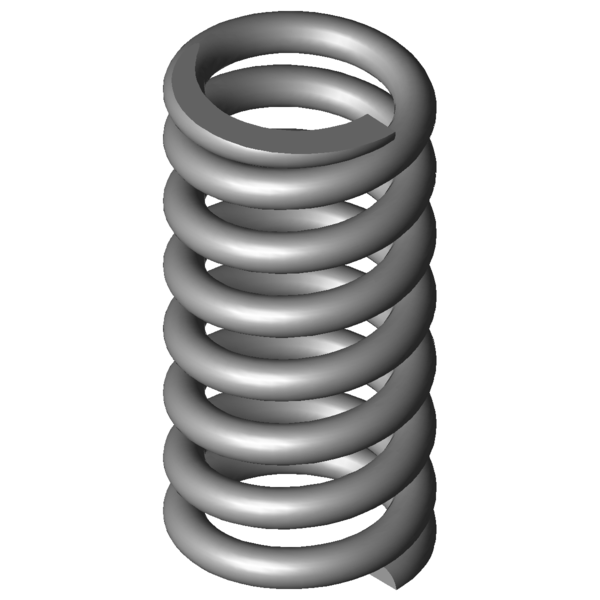

Home » Products » Compression springs » vd-288zb Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288ZB Stainless steel Ø 3 x 16.5 x 40 mm Scaled prices - Compression spring VD-288ZB Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-288ZB Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288ZB Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3 mm Wire diameter Di mm Inner coil diameter D 16.5 mm Mean coil diameter De 19.5 mm Outer coil diameter Dd 12.7 mm maximum diameter of mandrel Dh 20.4 mm minimum diameter of bush L0 40 mm unstressed spring length Lk mm buckling length Fn 351.926 N maximum force in static use Ln 26.62 mm Minimum length in static use sn 13.38 mm Maximum spring deflection in static use Fndyn 317.393 N maximum force in dynamic use Lndyn 27.93 mm Minimum length in dynamic use shdyn 5.56 mm Maximum stroke in dynamic use S 6.167 mm pitch of spring n 6 pc. number of active coils nt pc. total number of coils R 26.296 N/mm Spring rate Weight 23.1706 g weight of one spring Fntol 34.75 N (+/-) tolerance of maximum force in static use Fndtol 34.15 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 0.91 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288ZB Stainless steel Ø 3 x 16.5 x 40 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288ZB Stainless steel Ø 3 x 16.5 x 40 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288ZB Stainless steel Ø 3 x 16.5 x 40 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288ZB Stainless steel Ø 3 x 16.5 x 40 mm force-path-calculation Compression spring VD-288ZB Inquiry formular Compression spring VD-288ZB Stainless steel Ø 3 x 16.5 x 40 mm Inquiry formular Compression spring VD-288ZB Similar compression springs to Compression spring VD-288ZB Stainless steel Ø 3 x 16.5 x 40 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288ZB 1.4310 3 19.5 40 351.926 26.62 13.38 6 26.296 100.0 | 100.0 | 100.0 | 100.0 D-288ZB EN 10270-1 3 19.5 40 409.743 26.62 13.38 6 30.616 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-232O 18 45 3.601 1.4310 101.571 16.79 28.21 44.1 | 80.4 | 38.1 | 13.7 VD-247D-05 20 43.5 4.001 1.4310 99.391 18.66 24.84 47.2 | 85.4 | 41.1 | 15.2 VD-247B 20.5 41 4.02 1.4310 94.428 17.51 23.49 47.9 | 86.4 | 41.9 | 15.3 VD-232K 20 34.1 4.353 1.4310 98.401 11.5 22.6 47.0 | 80.9 | 43.6 | 16.6 VD-232P 16 40 4.935 1.4310 110.739 17.56 22.44 48.3 | 80.7 | 45.5 | 18.8 VD-240 22 41 5 1.4310 134 14.2 26.8 49.1 | 84.3 | 44.0 | 19.0 VD-274A 22.5 40 7.768 1.4310 144.137 21.45 18.56 58.7 | 90.0 | 56.5 | 29.5 VD-263VB 20 41.1 8.029 1.4310 172.303 19.64 21.46 58.9 | 90.5 | 55.7 | 30.5 VD-278C 19.5 35 12.649 1.4310 176.092 21.08 13.92 70.5 | 90.3 | 73.1 | 48.1 VD-280 18.5 41 15.172 1.4310 303.9 20.97 20.03 75.4 | 91.9 | 76.6 | 57.7 VD-288Q 20 39.5 19.217 1.4310 309.174 23.41 16.09 85.0 | 96.5 | 85.5 | 73.1 VD-288Z-51 21 41.4 22.096 1.4310 361.468 25.04 16.36 90.0 | 96.5 | 89.6 | 84.0 VD-288X-05 19.4 44 22.961 1.4310 418.243 25.78 18.22 87.3 | 95.7 | 78.8 | 87.3 VD-288Z-56 20 39.5 24.043 1.4310 308.548 26.67 12.83 94.0 | 98.8 | 91.8 | 91.4 VD-288ZB 19.5 40 26.296 1.4310 351.926 26.62 13.38 100.0 | 100.0 | 100.0 | 100.0 VD-288X-04 19.4 38 30.615 1.4310 468.411 22.7 15.3 88.1 | 97.1 | 81.3 | 85.9 VD-313A-05 19.5 44 36.159 1.4310 437.244 31.91 12.09 84.0 | 93.9 | 85.4 | 72.7 VD-310 19.2 40 40.727 1.4310 553.076 26.42 13.58 81.0 | 97.4 | 81.1 | 64.6 VD-313A-04 19.5 38 44.377 1.4310 478.333 27.22 10.78 77.2 | 95.3 | 77.1 | 59.3 VD-313A-03 19.5 32 57.429 1.4310 543.593 22.53 9.47 68.0 | 90.3 | 67.8 | 45.8 VD-339A-02 21 40 82.897 1.4310 597.184 32.8 7.2 59.1 | 89.3 | 56.4 | 31.7 VD-313P 18 36.8 89.489 1.4310 657.276 29.46 7.34 57.6 | 89.2 | 54.2 | 29.4 VD-339C 20 40.6 99.432 1.4310 782.727 32.73 7.87 56.2 | 90.3 | 51.9 | 26.4 VD-339E-01 19 35 147.49 1.4310 1005.926 28.18 6.82 49.2 | 86.6 | 43.0 | 17.8 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-288ZB Country of origin: DE, German; Compression spring VD-288ZB Product image - Compression springs VD-288ZB QR-Code: Compression spring VD-288ZB
