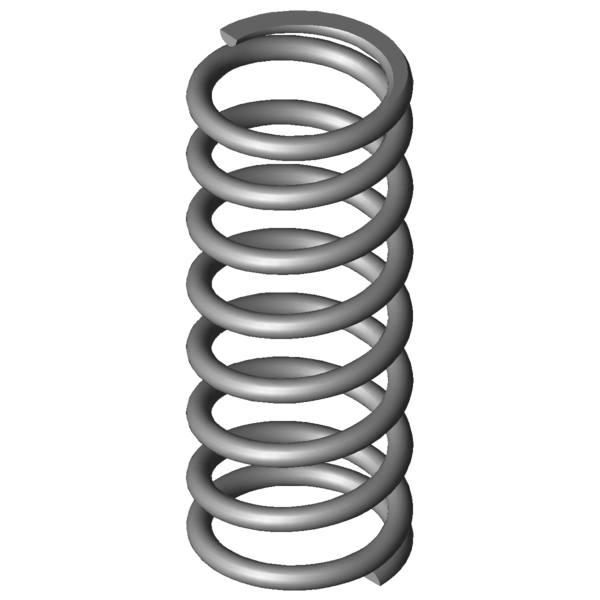

Home » Products » Compression springs » vd-232p Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-232P Stainless steel Ø 1.8 x 14.2 x 40 mm Scaled prices - Compression spring VD-232P Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-232P Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-232P Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.8 mm Wire diameter Di mm Inner coil diameter D 14.2 mm Mean coil diameter De 16 mm Outer coil diameter Dd 11.9 mm maximum diameter of mandrel Dh 16.7 mm minimum diameter of bush L0 40 mm unstressed spring length Lk mm buckling length Fn 110.739 N maximum force in static use Ln 17.56 mm Minimum length in static use sn 22.44 mm Maximum spring deflection in static use Fndyn 105.173 N maximum force in dynamic use Lndyn 18.69 mm Minimum length in dynamic use shdyn 9.03 mm Maximum stroke in dynamic use S 5.877 mm pitch of spring n 6.5 pc. number of active coils nt pc. total number of coils R 4.935 N/mm Spring rate Weight 7.6273 g weight of one spring Fntol 7.59 N (+/-) tolerance of maximum force in static use Fndtol 7.51 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 1.2 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-232P Stainless steel Ø 1.8 x 14.2 x 40 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-232P Stainless steel Ø 1.8 x 14.2 x 40 mm Metal spring characteristic download pdf file CAD data Compression spring VD-232P Stainless steel Ø 1.8 x 14.2 x 40 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-232P Stainless steel Ø 1.8 x 14.2 x 40 mm force-path-calculation Compression spring VD-232P Inquiry formular Compression spring VD-232P Stainless steel Ø 1.8 x 14.2 x 40 mm Inquiry formular Compression spring VD-232P Similar compression springs to Compression spring VD-232P Stainless steel Ø 1.8 x 14.2 x 40 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-232P 1.4310 1.8 16 40 110.739 17.56 22.44 6.5 4.935 100.0 | 100.0 | 100.0 | 100.0 D-232P EN 10270-1 1.8 16 40 128.932 17.56 22.44 6.5 5.746 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145E 17 44.6 0.61 1.4310 22.831 7.19 37.41 44.2 | 79.8 | 40.3 | 12.4 VD-179J-12 15.9 42 0.719 1.4310 22.633 10.5 31.5 48.5 | 85.2 | 45.8 | 14.6 VD-179J-02 14 42.3 1.085 1.4310 34.935 10.1 32.2 51.2 | 81.1 | 50.6 | 22.0 VD-180M-22 15 40 1.255 1.4310 36.402 11 29 55.8 | 86.8 | 55.1 | 25.4 VD-181 17.25 40.5 1.49 1.4310 44.703 10.5 30 58.3 | 87.0 | 57.6 | 30.2 VD-185D 15 36 1.494 1.4310 36.904 11.3 24.7 58.9 | 84.4 | 62.1 | 30.3 VD-190D 13 40 1.549 1.4310 37.808 15.6 24.4 59.3 | 83.6 | 63.1 | 31.4 VD-207J-20 16 35 1.816 1.4310 31.091 17.88 17.12 59.8 | 90.3 | 52.2 | 36.8 VD-187 13.75 41.5 1.989 1.4310 57.074 12.8 28.7 63.0 | 83.9 | 64.9 | 40.3 VD-207J-02 16.5 35 2.386 1.4310 51.754 13.31 21.69 69.8 | 89.3 | 71.7 | 48.4 VD-206F 15 39 2.43 1.4310 64.726 12.36 26.64 70.1 | 89.7 | 71.3 | 49.2 VD-217C 17 43.3 2.855 1.4310 83.35 14.1 29.2 75.2 | 91.8 | 76.1 | 57.8 VD-207J-35 14 40.6 3.024 1.4310 72.737 16.55 24.05 76.9 | 89.8 | 79.5 | 61.3 VD-219A 14.1 38 3.454 1.4310 64.229 19.41 18.59 77.0 | 90.7 | 70.4 | 70.0 VD-232P 16 40 4.935 1.4310 110.739 17.56 22.44 100.0 | 100.0 | 100.0 | 100.0 VD-252A-05 14.8 44 7.417 1.4310 141.63 24.91 19.09 79.8 | 91.1 | 81.6 | 66.5 VD-252AA 15 40 8.496 1.4310 157.604 21.45 18.55 76.4 | 94.6 | 76.5 | 58.1 VD-252A-04 14.8 38 8.901 1.4310 147.564 21.42 16.58 74.1 | 92.5 | 74.5 | 55.4 VD-257C-01 14 39 9.532 1.4310 146.615 23.62 15.38 71.8 | 91.7 | 72.0 | 51.8 VD-254A 14.5 39 11.028 1.4310 215.591 19.45 19.55 68.9 | 92.7 | 69.2 | 44.8 VD-263O-01 15 42 11.499 1.4310 184.905 25.92 16.08 66.3 | 90.3 | 65.8 | 42.9 VD-280 18.5 41 15.172 1.4310 303.9 20.97 20.03 60.2 | 85.3 | 62.8 | 32.5 VD-263V-13 15.2 44 15.381 1.4310 223.305 29.48 14.52 58.7 | 87.0 | 57.1 | 32.1 VD-263V-12 15.2 38 17.303 1.4310 194.851 26.74 11.26 56.8 | 88.3 | 53.5 | 28.5 VD-285A 15 40 20.588 1.4310 222.932 29.17 10.83 53.8 | 88.6 | 49.0 | 24.0 VD-288T-05 15 44 34.845 1.4310 402.191 32.46 11.54 45.5 | 83.0 | 39.5 | 14.2 VD-288T-04 15 38 42.312 1.4310 435.045 27.72 10.28 43.9 | 84.3 | 35.6 | 11.7 VD-288Z-05 15.5 44 52.979 1.4310 525.801 34.08 9.92 41.3 | 81.9 | 32.6 | 9.3 VD-288Z-04 15.5 38 62.789 1.4310 519.915 29.72 8.28 40.1 | 83.3 | 29.1 | 7.9 Number of similar metal springs: 28 Customs tariff number: 73202081; Compression spring VD-232P Country of origin: DE, German; Compression spring VD-232P Product image - Compression springs VD-232P QR-Code: Compression spring VD-232P
