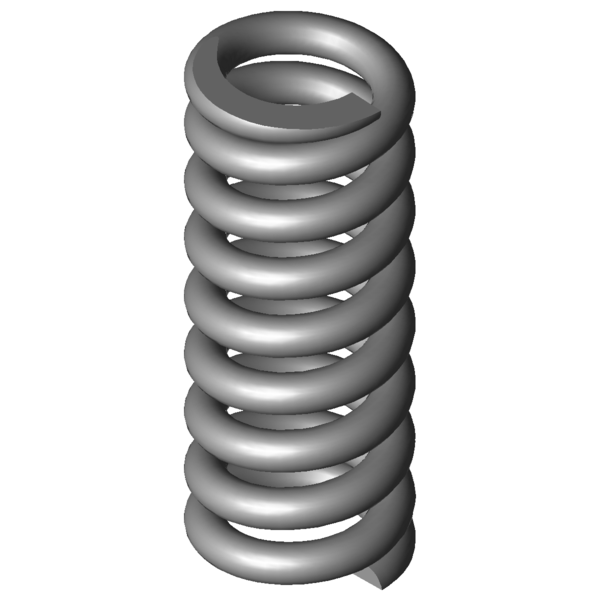

Home » Products » Compression springs » vd-288t-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288T-04 Stainless steel Ø 2.8 x 12.2 x 38 mm Scaled prices - Compression spring VD-288T-04 Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-288T-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288T-04 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 12.2 mm Mean coil diameter De 15 mm Outer coil diameter Dd 8.8 mm maximum diameter of mandrel Dh 15.7 mm minimum diameter of bush L0 38 mm unstressed spring length Lk mm buckling length Fn 435.045 N maximum force in static use Ln 27.72 mm Minimum length in static use sn 10.28 mm Maximum spring deflection in static use Fndyn 381.653 N maximum force in dynamic use Lndyn 28.98 mm Minimum length in dynamic use shdyn 3.12 mm Maximum stroke in dynamic use S 5.029 mm pitch of spring n 7 pc. number of active coils nt pc. total number of coils R 42.312 N/mm Spring rate Weight 16.7895 g weight of one spring Fntol 48.24 N (+/-) tolerance of maximum force in static use Fndtol 47.3 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.8 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288T-04 Stainless steel Ø 2.8 x 12.2 x 38 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288T-04 Stainless steel Ø 2.8 x 12.2 x 38 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288T-04 Stainless steel Ø 2.8 x 12.2 x 38 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288T-04 Stainless steel Ø 2.8 x 12.2 x 38 mm force-path-calculation Compression spring VD-288T-04 Inquiry formular Compression spring VD-288T-04 Stainless steel Ø 2.8 x 12.2 x 38 mm Inquiry formular Compression spring VD-288T-04 Similar compression springs to Compression spring VD-288T-04 Stainless steel Ø 2.8 x 12.2 x 38 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288T-04 1.4310 2.8 15 38 435.045 27.72 10.28 7 42.312 100.0 | 100.0 | 100.0 | 100.0 D-288T-04 EN 10270-1 2.8 15 38 506.516 27.72 10.28 7 49.263 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-252AA 15 40 8.496 1.4310 157.604 21.45 18.55 51.6 | 88.8 | 45.8 | 20.1 VD-252A-04 14.8 38 8.901 1.4310 147.564 21.42 16.58 53.0 | 90.0 | 48.0 | 21.0 VD-257C-01 14 39 9.532 1.4310 146.615 23.62 15.38 53.4 | 87.4 | 50.3 | 22.5 VD-254A 14.5 39 11.028 1.4310 215.591 19.45 19.55 55.2 | 88.5 | 51.1 | 26.1 VD-263O-01 15 42 11.499 1.4310 184.905 25.92 16.08 56.7 | 89.7 | 53.2 | 27.2 VD-252A-03 14.8 32 12.138 1.4310 184.786 16.78 15.22 56.2 | 84.8 | 55.0 | 28.7 VD-254 14.5 33 13.033 1.4310 211.853 16.74 16.26 57.2 | 85.0 | 56.0 | 30.8 VD-263V-13 15.2 44 15.381 1.4310 223.305 29.48 14.52 62.6 | 90.3 | 61.1 | 36.3 VD-263V 14.6 35 15.874 1.4310 177.288 23.83 11.17 64.6 | 89.9 | 66.4 | 37.5 VD-263V-12 15.2 38 17.303 1.4310 194.851 26.74 11.26 67.9 | 94.8 | 68.0 | 40.9 VD-285A 15 40 20.588 1.4310 222.932 29.17 10.83 72.2 | 94.8 | 73.1 | 48.6 VD-263V-11 15.2 32 21.297 1.4310 199.643 22.63 9.37 69.5 | 89.5 | 68.5 | 50.3 VD-285 15 32 31.818 1.4310 361.435 20.64 11.36 84.4 | 91.2 | 86.8 | 75.2 VD-288T-05 15 44 34.845 1.4310 402.191 32.46 11.54 89.5 | 95.5 | 90.8 | 82.4 VD-288T-04 15 38 42.312 1.4310 435.045 27.72 10.28 100.0 | 100.0 | 100.0 | 100.0 VD-288T-03 15 32 49.364 1.4310 367.346 24.56 7.44 86.3 | 94.7 | 78.4 | 85.7 VD-288Z-04 15.5 38 62.789 1.4310 519.915 29.72 8.28 81.7 | 95.7 | 82.1 | 67.4 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring VD-288T-04 Country of origin: DE, German; Compression spring VD-288T-04 Product image - Compression springs VD-288T-04 QR-Code: Compression spring VD-288T-04
