Compression spring VD-288Z-05 Stainless steel Ø 3.1 x 12.4 x 44 mm

Scaled prices - Compression spring VD-288Z-05

Quantity	Single price [EUR]
1	5.9700 EUR
2	4.2100 EUR
3	4.0100 EUR
7	3.2100 EUR
17	1.7700 EUR
37	1.3500 EUR
75	1.1900 EUR
125	0.9703 EUR
175	0.8890 EUR
250	0.8202 EUR
350	0.7705 EUR
450	0.7136 EUR

Compression spring Buy

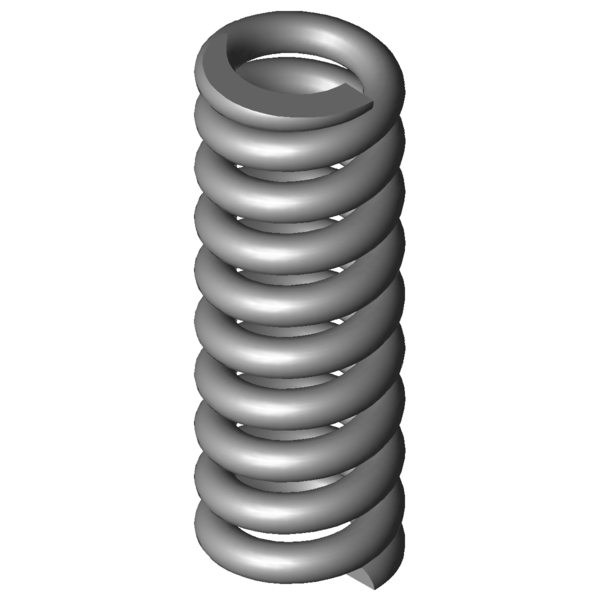

Product image Compression spring VD-288Z-05

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-288Z-05

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	3.1	mm	Wire diameter
Di		mm	Inner coil diameter
D	12.4	mm	Mean coil diameter
De	15.5	mm	Outer coil diameter
Dd	8.5	mm	maximum diameter of mandrel
Dh	16.5	mm	minimum diameter of bush
L0	44	mm	unstressed spring length
Lk		mm	buckling length
Fn	525.801	N	maximum force in static use
Ln	34.08	mm	Minimum length in static use
sn	9.92	mm	Maximum spring deflection in static use
Fndyn	444.49	N	maximum force in dynamic use
Lndyn	35.61	mm	Minimum length in dynamic use
shdyn	3.29	mm	Maximum stroke in dynamic use
S	5.113	mm	pitch of spring
n	8	pc.	number of active coils
nt		pc.	total number of coils
R	52.979	N/mm	Spring rate
Weight	23.2416	g	weight of one spring
Fntol	65.85	N	(+/-) tolerance of maximum force in static use
Fndtol	64.42	N	(+/-) tolerance of maximum dynamic force
Detol	0.4	mm	(+/-) tolerances of outer coil diameter
L0tol	0.9	mm	(+/-) tolerance of unstressed spring length
Price group	P	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-288Z-05 Stainless steel Ø 3.1 x 12.4 x 44 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-288Z-05 Stainless steel Ø 3.1 x 12.4 x 44 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-288Z-05 Stainless steel Ø 3.1 x 12.4 x 44 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-288Z-05 Stainless steel Ø 3.1 x 12.4 x 44 mm

force-path-calculation Compression spring VD-288Z-05

Inquiry formular Compression spring VD-288Z-05 Stainless steel Ø 3.1 x 12.4 x 44 mm

Inquiry formular Compression spring VD-288Z-05

Similar compression springs to Compression spring VD-288Z-05 Stainless steel Ø 3.1 x 12.4 x 44 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-288Z-05	1.4310	3.1	15.5	44	525.801	34.08	9.92	8	52.979	100.0 \| 100.0 \| 100.0 \| 100.0
D-288Z-05	EN 10270-1	3.1	15.5	44	612.183	34.08	9.92	8	61.682	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-257D	14	46.4	8.528	1.4310	174.608	25.93	20.47	46.7 \| 83.2 \| 40.8 \| 16.1
VD-263P	15	48.9	10.288	1.4310	210.384	28.45	20.45	49.9 \| 85.9 \| 44.3 \| 19.4
VD-263O-01	15	42	11.499	1.4310	184.905	25.92	16.08	52.6 \| 87.7 \| 48.4 \| 21.7
VD-263V-13	15.2	44	15.381	1.4310	223.305	29.48	14.52	58.7 \| 91.8 \| 55.4 \| 29.0
VD-263V-12	15.2	38	17.303	1.4310	194.851	26.74	11.26	60.8 \| 87.3 \| 62.6 \| 32.6
VD-283A-16	15.5	49	18.303	1.4310	361.721	29.24	19.76	61.4 \| 90.1 \| 59.5 \| 34.5
VD-286	15	47.5	20.588	1.4310	377.344	29.17	18.33	63.9 \| 90.0 \| 62.9 \| 38.8
VD-285A	15	40	20.588	1.4310	222.932	29.17	10.83	65.1 \| 89.4 \| 67.0 \| 38.8
VD-288ZC	17.5	45	29.06	1.4310	341.719	33.24	11.76	74.6 \| 94.4 \| 74.7 \| 54.8
VD-288T-05	15	44	34.845	1.4310	402.191	32.46	11.54	80.9 \| 95.7 \| 81.2 \| 65.8
VD-288W	14	45.9	40.296	1.4310	419.143	35.5	10.4	85.3 \| 92.2 \| 87.5 \| 76.0
VD-313AC	17	46	41.073	1.4310	366.417	37.08	8.92	84.0 \| 94.6 \| 79.8 \| 77.5
VD-288T-04	15	38	42.312	1.4310	435.045	27.72	10.28	86.9 \| 91.2 \| 89.6 \| 79.8
VD-288Z-06	15.5	51	43.47	1.4310	470.649	40.17	10.83	89.3 \| 95.4 \| 90.6 \| 82.0
VD-288Z-05	15.5	44	52.979	1.4310	525.801	34.08	9.92	100.0 \| 100.0 \| 100.0 \| 100.0
VD-288Z-04	15.5	38	62.789	1.4310	519.915	29.72	8.28	90.3 \| 95.5 \| 91.2 \| 84.4

Number of similar metal springs: 15

Customs tariff number: 73202081; Compression spring VD-288Z-05

Country of origin: DE, German; Compression spring VD-288Z-05
