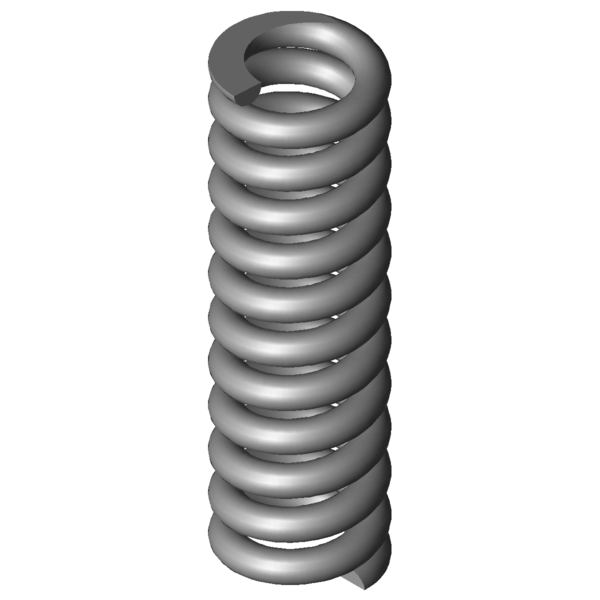

Home » Products » Compression springs » vd-288z-06 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288Z-06 Stainless steel Ø 3.1 x 12.4 x 51 mm Scaled prices - Compression spring VD-288Z-06 Quantity Single price [EUR] 1 6.0600 EUR 2 4.2700 EUR 3 4.0700 EUR 7 3.2700 EUR 17 1.9600 EUR 37 1.5300 EUR 75 1.4100 EUR 125 1.1143 EUR 175 1.0455 EUR 250 0.9455 EUR 350 0.8716 EUR 450 0.8148 EUR Compression spring Buy Product image Compression spring VD-288Z-06 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288Z-06 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.1 mm Wire diameter Di mm Inner coil diameter D 12.4 mm Mean coil diameter De 15.5 mm Outer coil diameter Dd 8.5 mm maximum diameter of mandrel Dh 16.5 mm minimum diameter of bush L0 51 mm unstressed spring length Lk mm buckling length Fn 470.649 N maximum force in static use Ln 40.17 mm Minimum length in static use sn 10.83 mm Maximum spring deflection in static use Fndyn 389.052 N maximum force in dynamic use Lndyn 42.05 mm Minimum length in dynamic use shdyn 4.74 mm Maximum stroke in dynamic use S 4.913 mm pitch of spring n 9.75 pc. number of active coils nt pc. total number of coils R 43.47 N/mm Spring rate Weight 27.3088 g weight of one spring Fntol 62.15 N (+/-) tolerance of maximum force in static use Fndtol 60.72 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 1.05 mm (+/-) tolerance of unstressed spring length Price group Q - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288Z-06 Stainless steel Ø 3.1 x 12.4 x 51 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288Z-06 Stainless steel Ø 3.1 x 12.4 x 51 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288Z-06 Stainless steel Ø 3.1 x 12.4 x 51 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288Z-06 Stainless steel Ø 3.1 x 12.4 x 51 mm force-path-calculation Compression spring VD-288Z-06 Inquiry formular Compression spring VD-288Z-06 Stainless steel Ø 3.1 x 12.4 x 51 mm Inquiry formular Compression spring VD-288Z-06 Similar compression springs to Compression spring VD-288Z-06 Stainless steel Ø 3.1 x 12.4 x 51 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288Z-06 1.4310 3.1 15.5 51 470.649 40.17 10.83 9.75 43.47 100.0 | 100.0 | 100.0 | 100.0 D-288Z-06 EN 10270-1 3.1 15.5 51 547.97 40.17 10.83 9.75 50.611 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-257DA 14 50 7.716 1.4310 167.948 28.23 21.77 48.3 | 84.3 | 42.7 | 17.8 VD-255 14.5 49.5 8.433 1.4310 215.462 23.95 25.55 49.5 | 85.0 | 44.1 | 19.4 VD-263P-01 15 53 9.308 1.4310 204.946 30.98 22.02 51.9 | 88.0 | 46.4 | 21.4 VD-263P 15 48.9 10.288 1.4310 210.384 28.45 20.45 53.5 | 87.9 | 48.8 | 23.7 VD-263V-14 15.2 51 12.584 1.4310 201.772 34.97 16.03 58.7 | 91.8 | 55.2 | 29.0 VD-286A 15 55 12.963 1.4310 150.492 43.39 11.61 60.8 | 90.0 | 62.6 | 29.8 VD-283A-17 15.5 59 14.817 1.4310 356.492 34.94 24.06 61.2 | 89.0 | 60.4 | 34.1 VD-263V-13 15.2 44 15.381 1.4310 223.305 29.48 14.52 61.2 | 87.3 | 61.0 | 35.4 VD-283A-10 16.5 52 16.608 1.4310 365.381 30 22 64.2 | 90.9 | 63.4 | 38.2 VD-283A-16 15.5 49 18.303 1.4310 361.721 29.24 19.76 66.7 | 92.2 | 65.8 | 42.1 VD-286 15 47.5 20.588 1.4310 377.344 29.17 18.33 69.1 | 90.2 | 69.6 | 47.4 VD-288ZD 17.5 50 25.831 1.4310 344.948 36.65 13.35 77.0 | 94.5 | 77.2 | 59.5 VD-288Z-62 17 49.8 30.387 1.4310 453.285 34.88 14.92 83.2 | 95.2 | 84.4 | 69.9 VD-288T-06 15 51 31.177 1.4310 479.584 35.62 15.38 83.9 | 95.7 | 84.3 | 71.8 VD-288Z-06 15.5 51 43.47 1.4310 470.649 40.17 10.83 100.0 | 100.0 | 100.0 | 100.0 VD-288Z-05 15.5 44 52.979 1.4310 525.801 34.08 9.92 89.3 | 95.4 | 90.6 | 82.0 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring VD-288Z-06 Country of origin: DE, German; Compression spring VD-288Z-06 Product image - Compression springs VD-288Z-06 QR-Code: Compression spring VD-288Z-06
