Compression spring VD-255 Stainless steel Ø 2 x 12.5 x 49.5 mm

Scaled prices - Compression spring VD-255

Quantity	Single price [EUR]
1	5.2700 EUR
2	3.7200 EUR
3	3.5400 EUR
7	2.5100 EUR
17	1.2200 EUR
37	0.9000 EUR
75	0.7300 EUR
125	0.5070 EUR
175	0.4444 EUR
250	0.4132 EUR
350	0.3853 EUR
450	0.3536 EUR

Compression spring Buy

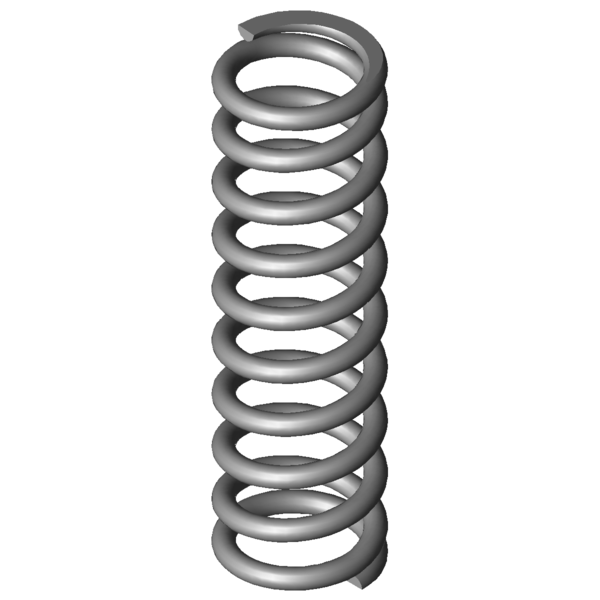

Product image Compression spring VD-255

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-255

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1	-	N	prestressed spring force
L1	-	mm	Prestressed spring length
s1	-	mm	Prestressed spring deflection
F2	-	N	Loaded spring force
L2	-	mm	Loaded spring length
s2	-	mm	Loaded spring deflection
d	2	mm	Wire diameter
Di	-	mm	Inner coil diameter
D	12.5	mm	Mean coil diameter
De	14.5	mm	Outer coil diameter
Dd	10	mm	maximum diameter of mandrel
Dh	15.2	mm	minimum diameter of bush
L0	49.5	mm	unstressed spring length
Lk		mm	buckling length
Fn	215.462	N	maximum force in static use
Ln	23.95	mm	Minimum length in static use
sn	25.55	mm	Maximum spring deflection in static use
Fndyn	174.14	N	maximum force in dynamic use
Lndyn	28.85	mm	Minimum length in dynamic use
shdyn	5.32	mm	Maximum stroke in dynamic use
S	5.588	mm	pitch of spring
n	8.5	pc.	number of active coils
nt	-	pc.	total number of coils
R	8.433	N/mm	Spring rate
Weight	10.2395	g	weight of one spring
Fntol	13.32	N	(+/-) tolerance of maximum force in static use
Fndtol	13.1	N	(+/-) tolerance of maximum dynamic force
Detol	0.3	mm	(+/-) tolerances of outer coil diameter
L0tol	1.19	mm	(+/-) tolerance of unstressed spring length
Price group	K	-	price group
F1tol	-	N	(+/-) tolerance of prestressed spring force
F2tol	-	N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-255 Stainless steel Ø 2 x 12.5 x 49.5 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-255 Stainless steel Ø 2 x 12.5 x 49.5 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-255 Stainless steel Ø 2 x 12.5 x 49.5 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-255 Stainless steel Ø 2 x 12.5 x 49.5 mm

force-path-calculation Compression spring VD-255

Inquiry formular Compression spring VD-255 Stainless steel Ø 2 x 12.5 x 49.5 mm

Inquiry formular Compression spring VD-255
