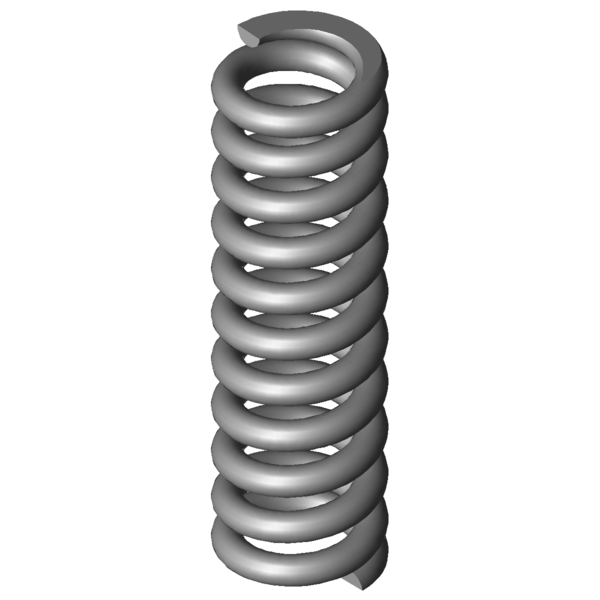

Home » Products » Compression springs » vd-288t-06 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288T-06 Stainless steel Ø 2.8 x 12.2 x 51 mm Scaled prices - Compression spring VD-288T-06 Quantity Single price [EUR] 1 6.0600 EUR 2 4.2700 EUR 3 4.0700 EUR 7 3.2700 EUR 17 1.9600 EUR 37 1.5300 EUR 75 1.4100 EUR 125 1.1143 EUR 175 1.0455 EUR 250 0.9455 EUR 350 0.8716 EUR 450 0.8148 EUR Compression spring Buy Product image Compression spring VD-288T-06 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288T-06 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 12.2 mm Mean coil diameter De 15 mm Outer coil diameter Dd 8.8 mm maximum diameter of mandrel Dh 15.7 mm minimum diameter of bush L0 51 mm unstressed spring length Lk mm buckling length Fn 479.584 N maximum force in static use Ln 35.62 mm Minimum length in static use sn 15.38 mm Maximum spring deflection in static use Fndyn 417.774 N maximum force in dynamic use Lndyn 37.6 mm Minimum length in dynamic use shdyn 3.46 mm Maximum stroke in dynamic use S 5.074 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 31.177 N/mm Spring rate Weight 21.4533 g weight of one spring Fntol 45.77 N (+/-) tolerance of maximum force in static use Fndtol 44.84 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 1.03 mm (+/-) tolerance of unstressed spring length Price group Q - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288T-06 Stainless steel Ø 2.8 x 12.2 x 51 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288T-06 Stainless steel Ø 2.8 x 12.2 x 51 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288T-06 Stainless steel Ø 2.8 x 12.2 x 51 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288T-06 Stainless steel Ø 2.8 x 12.2 x 51 mm force-path-calculation Compression spring VD-288T-06 Inquiry formular Compression spring VD-288T-06 Stainless steel Ø 2.8 x 12.2 x 51 mm Inquiry formular Compression spring VD-288T-06 Similar compression springs to Compression spring VD-288T-06 Stainless steel Ø 2.8 x 12.2 x 51 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288T-06 1.4310 2.8 15 51 479.584 35.62 15.38 9.5 31.177 100.0 | 100.0 | 100.0 | 100.0 D-288T-06 EN 10270-1 2.8 15 51 558.372 35.62 15.38 9.5 36.299 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-252A-30 15 52 7.497 1.4310 207.288 24.35 27.65 54.4 | 89.8 | 49.4 | 24.0 VD-257DA 14 50 7.716 1.4310 167.948 28.23 21.77 55.1 | 87.6 | 52.8 | 24.7 VD-255 14.5 49.5 8.433 1.4310 215.462 23.95 25.55 56.0 | 88.4 | 52.6 | 27.0 VD-257D 14 46.4 8.528 1.4310 174.608 25.93 20.47 56.1 | 85.2 | 55.8 | 27.4 VD-263P-01 15 53 9.308 1.4310 204.946 30.98 22.02 59.2 | 91.6 | 56.3 | 29.8 VD-257E-10 13 50 10.018 1.4310 219.856 28.05 21.95 58.5 | 85.4 | 58.0 | 32.1 VD-263P 15 48.9 10.288 1.4310 210.384 28.45 20.45 61.3 | 91.5 | 59.5 | 33.0 VD-263V-14 15.2 51 12.584 1.4310 201.772 34.97 16.03 68.1 | 94.8 | 69.0 | 40.4 VD-286A 15 55 12.963 1.4310 150.492 43.39 11.61 63.0 | 94.0 | 53.4 | 41.6 VD-263V-13 15.2 44 15.381 1.4310 223.305 29.48 14.52 70.0 | 90.2 | 70.5 | 49.3 VD-283A-10 16.5 52 16.608 1.4310 365.381 30 22 73.0 | 92.8 | 73.0 | 53.3 VD-283A-16 15.5 49 18.303 1.4310 361.721 29.24 19.76 76.5 | 94.0 | 76.6 | 58.7 VD-286 15 47.5 20.588 1.4310 377.344 29.17 18.33 80.5 | 94.1 | 81.3 | 66.0 VD-288Z-62 17 49.8 30.387 1.4310 453.285 34.88 14.92 95.4 | 93.1 | 95.8 | 97.4 VD-288T-06 15 51 31.177 1.4310 479.584 35.62 15.38 100.0 | 100.0 | 100.0 | 100.0 VD-288T-05 15 44 34.845 1.4310 402.191 32.46 11.54 88.1 | 95.4 | 79.4 | 89.5 VD-288W 14 45.9 40.296 1.4310 419.143 35.5 10.4 83.1 | 94.4 | 77.5 | 77.4 VD-288Z-06 15.5 51 43.47 1.4310 470.649 40.17 10.83 83.9 | 95.7 | 84.3 | 71.8 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring VD-288T-06 Country of origin: DE, German; Compression spring VD-288T-06 Product image - Compression springs VD-288T-06 QR-Code: Compression spring VD-288T-06
