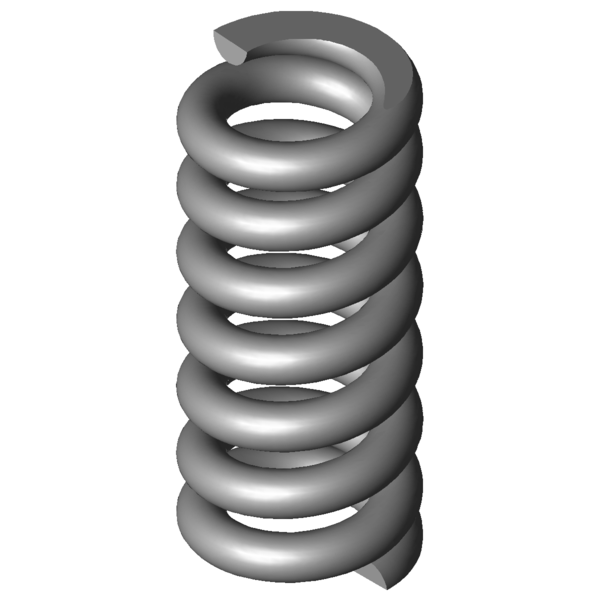

Home » Products » Compression springs » vd-339t-10 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339T-10 Stainless steel Ø 4.5 x 17.5 x 50 mm Scaled prices - Compression spring VD-339T-10 Quantity Single price [EUR] 1 13.3600 EUR 2 10.6400 EUR 3 6.1500 EUR 7 4.0000 EUR 17 2.6100 EUR 37 2.2000 EUR 75 2.1400 EUR 125 2.1400 EUR 175 2.1400 EUR 250 2.1400 EUR 350 2.1400 EUR Compression spring Buy Product image Compression spring VD-339T-10 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339T-10 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 17.5 mm Mean coil diameter De 22 mm Outer coil diameter Dd 12.1 mm maximum diameter of mandrel Dh 23.1 mm minimum diameter of bush L0 50 mm unstressed spring length Lk mm buckling length Fn 1491.136 N maximum force in static use Ln 37.75 mm Minimum length in static use sn 12.25 mm Maximum spring deflection in static use Fndyn 1059.011 N maximum force in dynamic use Lndyn 41.3 mm Minimum length in dynamic use shdyn 1.55 mm Maximum stroke in dynamic use S 8.273 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 121.725 N/mm Spring rate Weight 51.8376 g weight of one spring Fntol 187.2 N (+/-) tolerance of maximum force in static use Fndtol 165.6 N (+/-) tolerance of maximum dynamic force Detol 0.66 mm (+/-) tolerances of outer coil diameter L0tol 2.5 mm (+/-) tolerance of unstressed spring length Price group #AF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339T-10 Stainless steel Ø 4.5 x 17.5 x 50 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339T-10 Stainless steel Ø 4.5 x 17.5 x 50 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339T-10 Stainless steel Ø 4.5 x 17.5 x 50 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339T-10 Stainless steel Ø 4.5 x 17.5 x 50 mm force-path-calculation Compression spring VD-339T-10 Inquiry formular Compression spring VD-339T-10 Stainless steel Ø 4.5 x 17.5 x 50 mm Inquiry formular Compression spring VD-339T-10 Similar compression springs to Compression spring VD-339T-10 Stainless steel Ø 4.5 x 17.5 x 50 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339T-10 1.4310 4.5 22 50 1491.136 37.75 12.25 5.5 121.725 100.0 | 100.0 | 100.0 | 100.0 D-339T-10 EN 10270-1 4.5 22 50 1729.023 37.8 12.2 5.5 141.723 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-273A-04 24 52 6.253 1.4310 189.779 21.65 30.35 37.6 | 81.1 | 26.5 | 5.1 VD-275 22.5 54 7.768 1.4310 252.891 21.45 32.56 38.5 | 82.0 | 27.3 | 6.4 VD-308A-01 22 56 18.411 1.4310 404.254 34.04 21.96 47.8 | 86.8 | 41.4 | 15.1 VD-288ZA 21.5 45 20.352 1.4310 405.192 25.09 19.91 48.6 | 84.8 | 44.4 | 16.7 VD-305 23.2 49.5 20.852 1.4310 473.531 26.79 22.71 49.4 | 88.3 | 42.8 | 17.1 VD-304A 23.2 42 20.852 1.4310 317.138 26.79 15.21 50.4 | 83.3 | 50.9 | 17.1 VD-288X-06 19.4 51 21.195 1.4310 467.351 28.95 22.05 48.1 | 83.6 | 43.4 | 17.4 VD-288Z-51 21 41.4 22.096 1.4310 361.468 25.04 16.36 49.8 | 81.6 | 49.6 | 18.2 VD-310A 19.2 54 23.579 1.4310 306.998 40.98 13.02 53.5 | 83.7 | 57.3 | 19.4 VD-288ZD 17.5 50 25.831 1.4310 344.948 36.65 13.35 53.6 | 82.1 | 57.4 | 21.2 VD-313L 25 48.2 27.266 1.4310 495.429 30.03 18.17 53.6 | 88.1 | 50.3 | 22.4 VD-313A-06 19.5 51 30.509 1.4310 439.503 36.59 14.41 56.3 | 86.7 | 57.2 | 25.1 VD-336 24 49 50.909 1.4310 813.273 33.03 15.98 66.8 | 92.9 | 65.6 | 41.8 VD-339A-01 21.5 50 64.301 1.4310 813.639 37.35 12.65 74.7 | 95.5 | 75.7 | 52.8 VD-339T-10 22 50 121.725 1.4310 1491.136 37.75 12.25 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202081; Compression spring VD-339T-10 Country of origin: DE, German; Compression spring VD-339T-10 Product image - Compression springs VD-339T-10 QR-Code: Compression spring VD-339T-10
