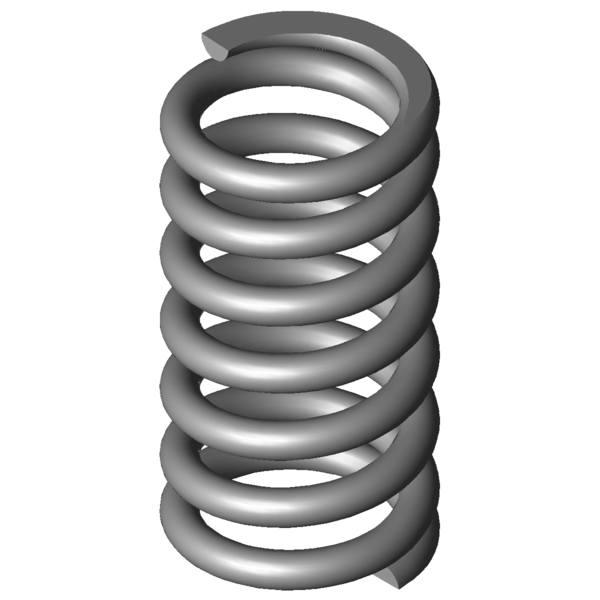

Home » Products » Compression springs » vd-313l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313L Stainless steel Ø 3.6 x 21.4 x 48.2 mm Scaled prices - Compression spring VD-313L Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.8670 EUR 175 1.8647 EUR 250 1.8186 EUR 350 1.7923 EUR Compression spring Buy Product image Compression spring VD-313L Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313L Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.6 mm Wire diameter Di mm Inner coil diameter D 21.4 mm Mean coil diameter De 25 mm Outer coil diameter Dd 17 mm maximum diameter of mandrel Dh 26 mm minimum diameter of bush L0 48.2 mm unstressed spring length Lk mm buckling length Fn 495.429 N maximum force in static use Ln 30.03 mm Minimum length in static use sn 18.17 mm Maximum spring deflection in static use Fndyn 453.971 N maximum force in dynamic use Lndyn 31.55 mm Minimum length in dynamic use shdyn 5.45 mm Maximum stroke in dynamic use S 8.109 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 27.266 N/mm Spring rate Weight 40.5696 g weight of one spring Fntol 41.78 N (+/-) tolerance of maximum force in static use Fndtol 41.05 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.04 mm (+/-) tolerance of unstressed spring length Price group AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313L Stainless steel Ø 3.6 x 21.4 x 48.2 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313L Stainless steel Ø 3.6 x 21.4 x 48.2 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313L Stainless steel Ø 3.6 x 21.4 x 48.2 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313L Stainless steel Ø 3.6 x 21.4 x 48.2 mm force-path-calculation Compression spring VD-313L Inquiry formular Compression spring VD-313L Stainless steel Ø 3.6 x 21.4 x 48.2 mm Inquiry formular Compression spring VD-313L Similar compression springs to Compression spring VD-313L Stainless steel Ø 3.6 x 21.4 x 48.2 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313L 1.4310 3.6 25 48.2 495.429 30.03 18.17 5.5 27.266 100.0 | 100.0 | 100.0 | 100.0 D-313L EN 10270-1 3.6 25 48.2 576.821 30.03 18.17 5.5 31.745 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-245 21 45 3.711 1.4310 101.725 17.59 27.41 44.9 | 77.6 | 43.4 | 13.6 VD-239A-10 23.5 43 4.025 1.4310 121.093 12.91 30.09 45.6 | 79.6 | 42.4 | 14.8 VD-263J 24 39.2 5.653 1.4310 142.427 14 25.2 50.2 | 79.5 | 50.4 | 20.7 VD-269 27.5 49 6.25 1.4310 204.375 16.3 32.7 52.5 | 86.2 | 48.4 | 22.9 VD-273A-04 24 52 6.253 1.4310 189.779 21.65 30.35 52.7 | 86.0 | 49.1 | 22.9 VD-288L 30 47 7.636 1.4310 223.221 17.77 29.23 55.9 | 86.2 | 53.6 | 28.0 VD-275 22.5 54 7.768 1.4310 252.891 21.45 32.56 54.9 | 82.9 | 53.4 | 28.5 VD-288Z-42 27 55.1 9.322 1.4310 273.742 25.73 29.37 60.2 | 87.8 | 58.6 | 34.2 VD-299A 28.2 50.8 10.676 1.4310 250.134 27.37 23.43 64.7 | 90.8 | 64.0 | 39.2 VD-299 28.2 42.5 16.777 1.4310 381.759 19.75 22.75 76.2 | 88.6 | 78.5 | 61.5 VD-288ZA 21.5 45 20.352 1.4310 405.192 25.09 19.91 82.9 | 87.6 | 86.5 | 74.6 VD-305 23.2 49.5 20.852 1.4310 473.531 26.79 22.71 85.8 | 93.0 | 87.8 | 76.5 VD-304A 23.2 42 20.852 1.4310 317.138 26.79 15.21 80.0 | 89.6 | 73.9 | 76.5 VD-313L-02 25 57 21.423 1.4310 444.403 36.26 20.74 87.4 | 94.9 | 88.7 | 78.6 VD-313L 25 48.2 27.266 1.4310 495.429 30.03 18.17 100.0 | 100.0 | 100.0 | 100.0 VD-313K-01 25 43 29.992 1.4310 451.258 27.95 15.05 91.4 | 96.4 | 87.0 | 90.9 VD-336 24 49 50.909 1.4310 813.273 33.03 15.98 74.3 | 94.8 | 74.4 | 53.6 VD-360A 30 50 63.636 1.4310 554.83 41.28 8.72 65.1 | 83.9 | 68.6 | 42.9 VD-339A-01 21.5 50 64.301 1.4310 813.639 37.35 12.65 66.1 | 90.8 | 65.3 | 42.4 VD-339T-10 22 50 121.725 1.4310 1491.136 37.75 12.25 53.6 | 88.1 | 50.3 | 22.4 VD-339T 22 44.9 121.725 1.4310 987.624 36.79 8.11 52.3 | 87.1 | 47.4 | 22.4 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-313L Country of origin: DE, German; Compression spring VD-313L Product image - Compression springs VD-313L QR-Code: Compression spring VD-313L
