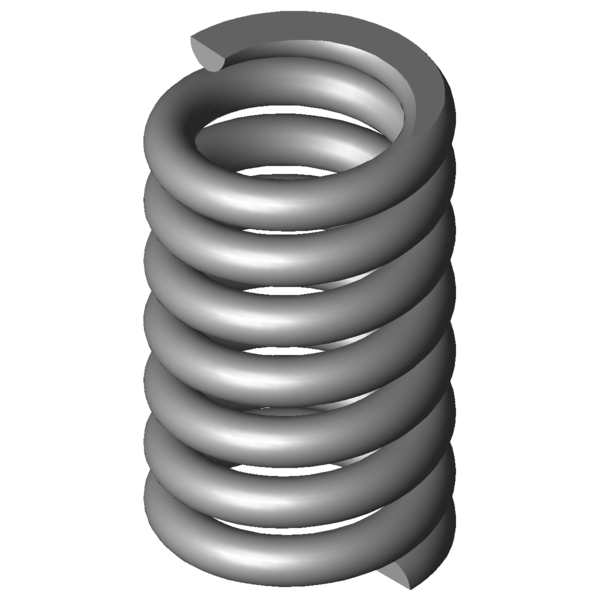

Home » Products » Compression springs » vd-360a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-360A Stainless steel Ø 5 x 25 x 50 mm Scaled prices - Compression spring VD-360A Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0700 EUR 175 2.0700 EUR 250 2.0700 EUR 350 2.0700 EUR Compression spring Buy Product image Compression spring VD-360A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-360A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 30 mm Outer coil diameter Dd 19.1 mm maximum diameter of mandrel Dh 31 mm minimum diameter of bush L0 50 mm unstressed spring length Lk mm buckling length Fn 554.83 N maximum force in static use Ln 41.28 mm Minimum length in static use sn 8.72 mm Maximum spring deflection in static use Fndyn 434.636 N maximum force in dynamic use Lndyn 43.17 mm Minimum length in dynamic use shdyn 6.83 mm Maximum stroke in dynamic use S 8.182 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 63.636 N/mm Spring rate Weight 91.4243 g weight of one spring Fntol 92.89 N (+/-) tolerance of maximum force in static use Fndtol 90.79 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.12 mm (+/-) tolerance of unstressed spring length Price group #AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-360A Stainless steel Ø 5 x 25 x 50 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-360A Stainless steel Ø 5 x 25 x 50 mm Metal spring characteristic download pdf file CAD data Compression spring VD-360A Stainless steel Ø 5 x 25 x 50 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-360A Stainless steel Ø 5 x 25 x 50 mm force-path-calculation Compression spring VD-360A Inquiry formular Compression spring VD-360A Stainless steel Ø 5 x 25 x 50 mm Inquiry formular Compression spring VD-360A Similar compression springs to Compression spring VD-360A Stainless steel Ø 5 x 25 x 50 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-360A 1.4310 5 30 50 554.83 41.28 8.72 5.5 63.636 78.5 | 89.1 | 68.9 | 77.5 D-360A EN 10270-1 5 30 50 645.98 41.28 8.72 5.5 74.091 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288Z-42 27 55.1 9.322 1.4310 273.742 25.73 29.37 44.8 | 80.2 | 39.5 | 14.6 VD-298B 33 43 9.906 1.4310 226.081 20.18 22.82 52.0 | 88.4 | 47.6 | 20.1 VD-299A 28.2 50.8 10.676 1.4310 250.134 27.37 23.43 47.8 | 85.5 | 41.2 | 16.8 VD-313J-02 31.6 53.9 12.173 1.4310 281.47 30.78 23.12 50.0 | 86.6 | 44.2 | 19.1 VD-299 28.2 42.5 16.777 1.4310 381.759 19.75 22.75 59.5 | 85.8 | 58.6 | 34.0 VD-313J-07 28.6 56 17.102 1.4310 437.589 30.41 25.59 56.3 | 85.5 | 56.5 | 26.9 VD-305 23.2 49.5 20.852 1.4310 473.531 26.79 22.71 58.3 | 80.1 | 61.9 | 32.8 VD-331 29 60.5 26.065 1.4310 704.052 33.49 27.01 61.0 | 86.4 | 55.5 | 41.0 VD-313L 25 48.2 27.266 1.4310 495.429 30.03 18.17 65.1 | 83.9 | 68.6 | 42.9 VD-330 29 41 40.96 1.4310 687.296 24.22 16.78 89.0 | 92.6 | 91.3 | 83.1 VD-355 37 51 47.684 1.4310 985.851 30.33 20.67 72.4 | 93.0 | 49.2 | 75.0 VD-339O 32 41.7 49.294 1.4310 714.4 27.21 14.49 100.0 | 100.0 | 100.0 | 100.0 VD-336 24 49 50.909 1.4310 813.273 33.03 15.98 75.8 | 86.0 | 61.4 | 80.0 VD-359A-01 34 48 56.058 1.4310 840.347 33.01 14.99 89.7 | 90.3 | 90.8 | 87.9 VD-360A 30 50 63.636 1.4310 554.83 41.28 8.72 78.5 | 89.1 | 68.9 | 77.5 VD-360 30 41 100 1.4310 1109.375 29.91 11.09 71.3 | 94.0 | 70.5 | 49.3 VD-364P 28 55.5 127.805 1.4310 1337.561 45.03 10.47 67.9 | 91.4 | 62.4 | 49.8 VD-389O 34 48.3 304.959 1.4310 2074.71 41.5 6.8 46.1 | 81.6 | 40.7 | 16.2 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring VD-360A Country of origin: DE, German; Compression spring VD-360A Product image - Compression springs VD-360A QR-Code: Compression spring VD-360A
