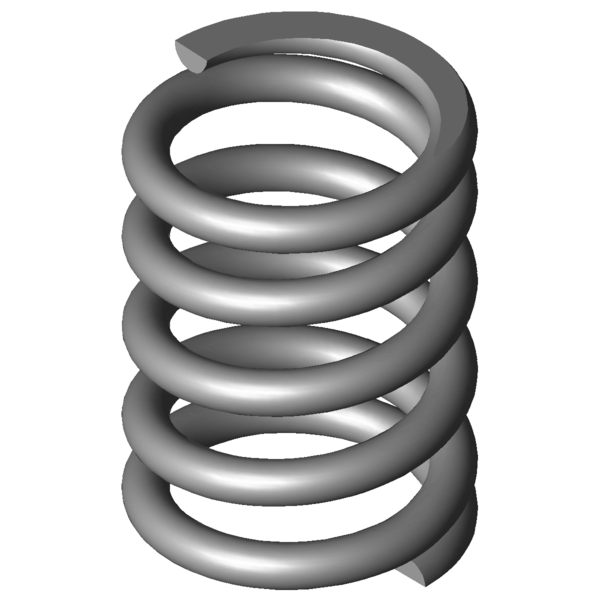

Home » Products » Compression springs » vd-355 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-355 Stainless steel Ø 5 x 32 x 51 mm Scaled prices - Compression spring VD-355 Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0700 EUR 175 2.0700 EUR 250 2.0700 EUR 350 2.0700 EUR Compression spring Buy Product image Compression spring VD-355 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-355 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 37 mm Outer coil diameter Dd 26 mm maximum diameter of mandrel Dh 38.2 mm minimum diameter of bush L0 51 mm unstressed spring length Lk mm buckling length Fn 985.851 N maximum force in static use Ln 30.33 mm Minimum length in static use sn 20.67 mm Maximum spring deflection in static use Fndyn 902.176 N maximum force in dynamic use Lndyn 32.08 mm Minimum length in dynamic use shdyn 3.47 mm Maximum stroke in dynamic use S 13.143 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 47.684 N/mm Spring rate Weight 85.8169 g weight of one spring Fntol 74.2 N (+/-) tolerance of maximum force in static use Fndtol 73 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.03 mm (+/-) tolerance of unstressed spring length Price group #AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-355 Stainless steel Ø 5 x 32 x 51 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-355 Stainless steel Ø 5 x 32 x 51 mm Metal spring characteristic download pdf file CAD data Compression spring VD-355 Stainless steel Ø 5 x 32 x 51 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-355 Stainless steel Ø 5 x 32 x 51 mm force-path-calculation Compression spring VD-355 Inquiry formular Compression spring VD-355 Stainless steel Ø 5 x 32 x 51 mm Inquiry formular Compression spring VD-355 Similar compression springs to Compression spring VD-355 Stainless steel Ø 5 x 32 x 51 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-355 1.4310 5 37 51 985.851 30.33 20.67 3.5 47.684 100.0 | 100.0 | 100.0 | 100.0 D-355 EN 10270-1 5 37 51 1147.813 30.33 20.67 3.5 55.517 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288K-11 33 50 4.882 1.4310 147.06 19.87 30.13 44.4 | 81.1 | 41.8 | 10.2 VD-288Z-11 37 57.4 5.152 1.4310 194.89 19.57 37.83 43.7 | 83.0 | 37.2 | 10.8 VD-288Z-20 33 48.3 7.5 1.4310 218.813 19.13 29.18 47.8 | 81.3 | 46.5 | 15.7 VD-288L 30 47 7.636 1.4310 223.221 17.77 29.23 46.4 | 76.4 | 46.7 | 16.0 VD-294 35.2 58.5 8 1.4310 304.8 20.4 38.1 47.2 | 82.1 | 42.6 | 16.8 VD-313F 40 61.7 8.707 1.4310 337.011 22.99 38.71 48.1 | 82.4 | 43.8 | 18.3 VD-298B 33 43 9.906 1.4310 226.081 20.18 22.82 52.2 | 79.2 | 56.8 | 20.8 VD-299A 28.2 50.8 10.676 1.4310 250.134 27.37 23.43 53.0 | 79.9 | 56.8 | 22.4 VD-313J-02 31.6 53.9 12.173 1.4310 281.47 30.78 23.12 56.2 | 84.0 | 59.0 | 25.5 VD-325A 36 61 12.429 1.4310 331.705 34.31 26.69 56.2 | 87.0 | 55.5 | 26.1 VD-325 36 53.5 19.531 1.4310 561.641 24.74 28.76 65.4 | 90.9 | 64.4 | 40.9 VD-324A 36 41 19.531 1.4310 317.5 24.74 16.26 60.8 | 85.9 | 55.4 | 40.9 VD-339N-03 41 52 21.082 1.4310 508.076 27.9 24.1 68.5 | 92.8 | 68.7 | 44.2 VD-355A 37 63 30.344 1.4310 639.061 41.94 21.06 79.6 | 93.7 | 81.5 | 63.6 VD-355 37 51 47.684 1.4310 985.851 30.33 20.67 100.0 | 100.0 | 100.0 | 100.0 VD-359A-01 34 48 56.058 1.4310 840.347 33.01 14.99 86.4 | 95.3 | 78.9 | 85.1 VD-360A 30 50 63.636 1.4310 554.83 41.28 8.72 72.4 | 93.0 | 49.2 | 75.0 VD-364J-08 42 44 65.863 1.4310 1116.375 27.05 16.95 82.0 | 88.4 | 85.2 | 72.4 VD-364K 38 48.6 66.641 1.4310 1027.386 33.18 15.42 83.8 | 94.5 | 85.3 | 71.6 VD-364R-02 39 51 83.257 1.4310 1476.864 33.26 17.74 75.8 | 93.7 | 76.3 | 57.3 VD-364R-90 39 47 90.158 1.4310 986.968 36.05 10.95 73.2 | 90.1 | 76.4 | 52.9 VD-385 38.3 50 120.186 1.4310 1477.281 37.71 12.29 64.7 | 91.3 | 63.1 | 39.7 VD-389A-02 39 51 149.497 1.4310 1642.595 40.01 10.99 59.4 | 89.8 | 56.6 | 31.9 VD-414AA 42 53 260.533 1.4310 1417.659 47.56 5.44 49.5 | 82.3 | 47.9 | 18.3 VD-389O 34 48.3 304.959 1.4310 2074.71 41.5 6.8 47.3 | 86.0 | 40.2 | 15.6 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-355 Country of origin: DE, German; Compression spring VD-355 Product image - Compression springs VD-355 QR-Code: Compression spring VD-355
