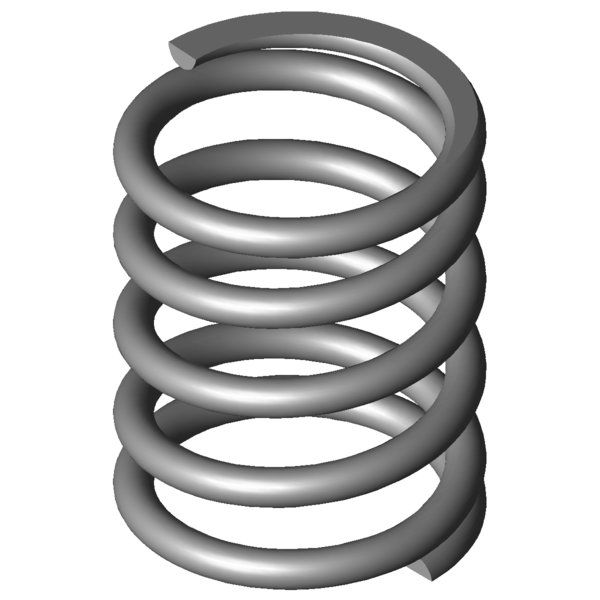

Home » Products » Compression springs » vd-339n-03 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339N-03 Stainless steel Ø 4.5 x 36.5 x 52 mm Scaled prices - Compression spring VD-339N-03 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-339N-03 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339N-03 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 36.5 mm Mean coil diameter De 41 mm Outer coil diameter Dd 31.2 mm maximum diameter of mandrel Dh 41.9 mm minimum diameter of bush L0 52 mm unstressed spring length Lk mm buckling length Fn 508.076 N maximum force in static use Ln 27.9 mm Minimum length in static use sn 24.1 mm Maximum spring deflection in static use Fndyn 474.345 N maximum force in dynamic use Lndyn 29.5 mm Minimum length in dynamic use shdyn 8.9 mm Maximum stroke in dynamic use S 13.571 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 21.082 N/mm Spring rate Weight 79.2868 g weight of one spring Fntol 39.67 N (+/-) tolerance of maximum force in static use Fndtol 39.2 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 1.5 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339N-03 Stainless steel Ø 4.5 x 36.5 x 52 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339N-03 Stainless steel Ø 4.5 x 36.5 x 52 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339N-03 Stainless steel Ø 4.5 x 36.5 x 52 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339N-03 Stainless steel Ø 4.5 x 36.5 x 52 mm force-path-calculation Compression spring VD-339N-03 Inquiry formular Compression spring VD-339N-03 Stainless steel Ø 4.5 x 36.5 x 52 mm Inquiry formular Compression spring VD-339N-03 Similar compression springs to Compression spring VD-339N-03 Stainless steel Ø 4.5 x 36.5 x 52 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339N-03 1.4310 4.5 41 52 508.076 27.9 24.1 3.5 21.082 100.0 | 100.0 | 100.0 | 100.0 D-339N-03 EN 10270-1 4.5 41 52 592.036 27.88 24.12 3.5 24.545 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206A-20 34 54 0.149 1.4310 5.043 20.21 33.79 35.7 | 70.1 | 36.2 | 0.7 VD-263D-12 42 45 0.433 1.4310 6.221 30.65 14.35 36.7 | 77.7 | 30.4 | 2.1 VD-234L 30 50 1.822 1.4310 66.039 13.76 36.24 39.9 | 71.3 | 39.7 | 8.6 VD-263VH 46 60 1.846 1.4310 85.355 13.75 46.25 40.1 | 77.1 | 34.5 | 8.8 VD-289C-06 48 48 4.535 1.4310 143.129 16.44 31.56 52.2 | 82.9 | 52.3 | 21.5 VD-288K-11 33 50 4.882 1.4310 147.06 19.87 30.13 52.4 | 79.6 | 54.5 | 23.2 VD-288Z-11 37 57.4 5.152 1.4310 194.89 19.57 37.83 52.7 | 82.5 | 51.0 | 24.4 VD-288Z-20 33 48.3 7.5 1.4310 218.813 19.13 29.18 59.5 | 80.0 | 62.8 | 35.6 VD-294 35.2 58.5 8 1.4310 304.8 20.4 38.1 60.5 | 82.0 | 61.6 | 37.9 VD-313F 40 61.7 8.707 1.4310 337.011 22.99 38.71 77.2 | 85.6 | 81.2 | 64.9 VD-313J-02 31.6 53.9 12.173 1.4310 281.47 30.78 23.12 72.6 | 84.5 | 75.7 | 57.7 VD-325A 36 61 12.429 1.4310 331.705 34.31 26.69 74.7 | 87.3 | 77.8 | 59.0 VD-349A-02 50 50 18.466 1.4310 379.471 29.45 20.55 85.7 | 89.4 | 80.0 | 87.6 VD-325 36 53.5 19.531 1.4310 561.641 24.74 28.76 90.4 | 91.3 | 87.1 | 92.6 VD-339N-03 41 52 21.082 1.4310 508.076 27.9 24.1 100.0 | 100.0 | 100.0 | 100.0 VD-364J-20 48 45 46.356 1.4310 892.36 25.75 19.25 66.2 | 84.6 | 68.4 | 45.5 VD-355 37 51 47.684 1.4310 985.851 30.33 20.67 68.5 | 92.8 | 68.7 | 44.2 VD-354B 37 43 47.684 1.4310 604.382 30.33 12.67 66.7 | 87.6 | 68.3 | 44.2 VD-359A-01 34 48 56.058 1.4310 840.347 33.01 14.99 62.4 | 88.4 | 61.3 | 37.6 VD-379B 46.3 47 61.535 1.4310 542.226 38.19 8.81 60.9 | 83.5 | 65.1 | 34.3 VD-380 46.3 60 61.535 1.4310 1342.181 38.19 21.81 60.2 | 82.2 | 64.2 | 34.3 VD-364R-03 39 64 63.667 1.4310 1532.695 39.93 24.07 51.3 | 84.9 | 47.8 | 21.1 VD-364J-08 42 44 65.863 1.4310 1116.375 27.05 16.95 59.3 | 88.0 | 57.9 | 32.0 VD-364K 38 48.6 66.641 1.4310 1027.386 33.18 15.42 59.2 | 89.3 | 56.7 | 31.6 VD-364R-02 39 51 83.257 1.4310 1476.864 33.26 17.74 56.5 | 90.3 | 54.0 | 25.3 VD-364R-90 39 47 90.158 1.4310 986.968 36.05 10.95 52.9 | 86.8 | 48.5 | 23.4 VD-385 38.3 50 120.186 1.4310 1477.281 37.71 12.29 49.1 | 87.0 | 42.7 | 17.5 VD-389A-03 39 64 139.53 1.4310 2483.639 46.2 17.8 41.4 | 81.4 | 33.3 | 9.6 VD-389A-02 39 51 149.497 1.4310 1642.595 40.01 10.99 46.4 | 86.8 | 38.3 | 14.1 VD-414AA 42 53 260.533 1.4310 1417.659 47.56 5.44 40.4 | 84.0 | 29.2 | 8.1 Number of similar metal springs: 29 Customs tariff number: 73202081; Compression spring VD-339N-03 Country of origin: DE, German; Compression spring VD-339N-03 Product image - Compression springs VD-339N-03 QR-Code: Compression spring VD-339N-03
