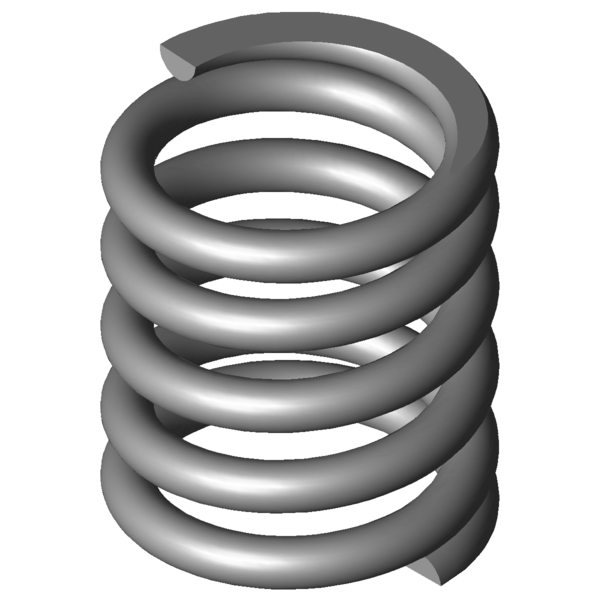

Home » Products » Compression springs » vd-354b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-354B Stainless steel Ø 5 x 32 x 43 mm Scaled prices - Compression spring VD-354B Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0700 EUR 175 2.0700 EUR 250 2.0700 EUR 350 2.0700 EUR Compression spring Buy Product image Compression spring VD-354B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-354B Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 37 mm Outer coil diameter Dd 26 mm maximum diameter of mandrel Dh 38.2 mm minimum diameter of bush L0 43 mm unstressed spring length Lk mm buckling length Fn 604.382 N maximum force in static use Ln 30.33 mm Minimum length in static use sn 12.67 mm Maximum spring deflection in static use Fndyn 536.442 N maximum force in dynamic use Lndyn 31.75 mm Minimum length in dynamic use shdyn 7.8 mm Maximum stroke in dynamic use S 10.857 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 47.684 N/mm Spring rate Weight 85.8169 g weight of one spring Fntol 67.56 N (+/-) tolerance of maximum force in static use Fndtol 66.37 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.03 mm (+/-) tolerance of unstressed spring length Price group #AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-354B Stainless steel Ø 5 x 32 x 43 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-354B Stainless steel Ø 5 x 32 x 43 mm Metal spring characteristic download pdf file CAD data Compression spring VD-354B Stainless steel Ø 5 x 32 x 43 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-354B Stainless steel Ø 5 x 32 x 43 mm force-path-calculation Compression spring VD-354B Inquiry formular Compression spring VD-354B Stainless steel Ø 5 x 32 x 43 mm Inquiry formular Compression spring VD-354B Similar compression springs to Compression spring VD-354B Stainless steel Ø 5 x 32 x 43 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-354B 1.4310 5 37 43 604.382 30.33 12.67 3.5 47.684 100.0 | 100.0 | 100.0 | 100.0 D-354B EN 10270-1 5 37 43 703.673 30.33 12.67 3.5 55.517 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263Z-10 34.5 44 4.636 1.4310 145.568 12.6 31.4 40.8 | 80.3 | 32.2 | 9.7 VD-288K-11 33 50 4.882 1.4310 147.06 19.87 30.13 40.2 | 77.1 | 33.2 | 10.2 VD-288Z-20 33 48.3 7.5 1.4310 218.813 19.13 29.18 45.0 | 79.4 | 39.8 | 15.7 VD-288L 30 47 7.636 1.4310 223.221 17.77 29.23 44.1 | 76.2 | 40.1 | 16.0 VD-298B 33 43 9.906 1.4310 226.081 20.18 22.82 50.5 | 84.4 | 46.5 | 20.8 VD-288Z-31 28 40 12.96 1.4310 276.777 18.64 21.36 52.0 | 76.2 | 52.6 | 27.2 VD-299 28.2 42.5 16.777 1.4310 381.759 19.75 22.75 58.1 | 79.7 | 59.4 | 35.2 VD-324A 36 41 19.531 1.4310 317.5 24.74 16.26 65.7 | 90.9 | 65.2 | 40.9 VD-325 36 53.5 19.531 1.4310 561.641 24.74 28.76 65.1 | 85.9 | 68.5 | 40.9 VD-339N-03 41 52 21.082 1.4310 508.076 27.9 24.1 66.7 | 87.6 | 68.3 | 44.2 VD-313J-06 28.6 38.9 26.874 1.4310 454.935 21.97 16.93 70.4 | 79.9 | 75.1 | 56.3 VD-313K-01 25 43 29.992 1.4310 451.258 27.95 15.05 74.0 | 79.9 | 79.4 | 62.9 VD-339N-02 41 35 32.794 1.4310 452.56 21.2 13.8 79.8 | 87.2 | 83.3 | 68.7 VD-330 29 41 40.96 1.4310 687.296 24.22 16.78 84.1 | 84.6 | 81.7 | 85.9 VD-354B 37 43 47.684 1.4310 604.382 30.33 12.67 100.0 | 100.0 | 100.0 | 100.0 VD-339O 32 41.7 49.294 1.4310 714.4 27.21 14.49 91.3 | 91.2 | 86.0 | 96.8 VD-364R-80 46 42 50.625 1.4310 278.438 36.5 5.5 75.4 | 87.1 | 44.7 | 94.2 VD-359A-01 34 48 56.058 1.4310 840.347 33.01 14.99 85.7 | 93.8 | 78.2 | 85.1 VD-364J-08 42 44 65.863 1.4310 1116.375 27.05 16.95 76.4 | 92.2 | 64.4 | 72.4 VD-364K 38 48.6 66.641 1.4310 1027.386 33.18 15.42 78.1 | 92.3 | 70.5 | 71.6 VD-364R-02 39 51 83.257 1.4310 1476.864 33.26 17.74 67.3 | 88.5 | 56.2 | 57.3 VD-364R-90 39 47 90.158 1.4310 986.968 36.05 10.95 72.2 | 89.9 | 73.8 | 52.9 VD-360 30 41 100 1.4310 1109.375 29.91 11.09 70.3 | 92.1 | 71.0 | 47.7 VD-385 38.3 50 120.186 1.4310 1477.281 37.71 12.29 65.3 | 87.3 | 69.0 | 39.7 VD-389A-02 39 51 149.497 1.4310 1642.595 40.01 10.99 59.4 | 84.6 | 61.8 | 31.9 VD-364O 28 39.3 200.837 1.4310 1333.91 32.66 6.64 52.9 | 86.0 | 48.9 | 23.7 VD-389O 34 48.3 304.959 1.4310 2074.71 41.5 6.8 47.1 | 84.1 | 41.4 | 15.6 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring VD-354B Country of origin: DE, German; Compression spring VD-354B Product image - Compression springs VD-354B QR-Code: Compression spring VD-354B
