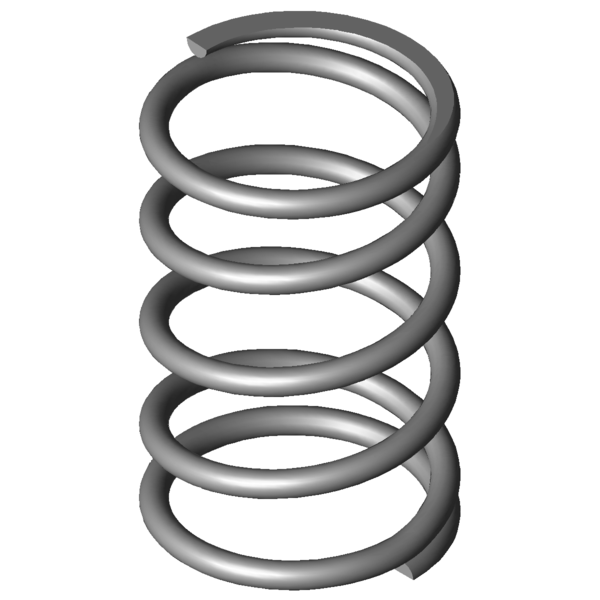

Home » Products » Compression springs » vd-288l Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288L Stainless steel Ø 2.8 x 27.2 x 47 mm Scaled prices - Compression spring VD-288L Quantity Single price [EUR] 1 6.0600 EUR 2 4.2700 EUR 3 4.0700 EUR 7 3.2700 EUR 17 1.9600 EUR 37 1.5300 EUR 75 1.4100 EUR 125 1.1143 EUR 175 1.0455 EUR 250 0.9455 EUR 350 0.8716 EUR 450 0.8148 EUR Compression spring Buy Product image Compression spring VD-288L Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288L Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 27.2 mm Mean coil diameter De 30 mm Outer coil diameter Dd 23.6 mm maximum diameter of mandrel Dh 31.3 mm minimum diameter of bush L0 47 mm unstressed spring length Lk mm buckling length Fn 223.221 N maximum force in static use Ln 17.77 mm Minimum length in static use sn 29.23 mm Maximum spring deflection in static use Fndyn 214.19 N maximum force in dynamic use Lndyn 18.95 mm Minimum length in dynamic use shdyn 8.31 mm Maximum stroke in dynamic use S 12.629 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 7.636 N/mm Spring rate Weight 22.8754 g weight of one spring Fntol 18.58 N (+/-) tolerance of maximum force in static use Fndtol 15.43 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.31 mm (+/-) tolerance of unstressed spring length Price group Q - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288L Stainless steel Ø 2.8 x 27.2 x 47 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288L Stainless steel Ø 2.8 x 27.2 x 47 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288L Stainless steel Ø 2.8 x 27.2 x 47 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288L Stainless steel Ø 2.8 x 27.2 x 47 mm force-path-calculation Compression spring VD-288L Inquiry formular Compression spring VD-288L Stainless steel Ø 2.8 x 27.2 x 47 mm Inquiry formular Compression spring VD-288L Similar compression springs to Compression spring VD-288L Stainless steel Ø 2.8 x 27.2 x 47 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288L 1.4310 2.8 30 47 223.221 17.77 29.23 3.5 7.636 100.0 | 100.0 | 100.0 | 100.0 D-288L EN 10270-1 2.8 30 47 259.893 17.77 29.23 3.5 8.89 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DB 24 44.5 0.131 1.4310 4.195 12.41 32.09 39.4 | 70.1 | 46.5 | 1.7 VD-207JL 26.5 45 0.81 1.4310 27.57 10.96 34.04 46.3 | 79.2 | 49.1 | 10.6 VD-207K-01 28 55 0.89 1.4310 38.604 11.65 43.35 44.2 | 78.6 | 42.4 | 11.7 VD-233E-22 30 42 1.82 1.4310 59.072 9.55 32.45 51.5 | 81.7 | 48.8 | 23.8 VD-234L 30 50 1.822 1.4310 66.039 13.76 36.24 55.8 | 88.5 | 55.1 | 23.9 VD-234K-01 30 34.5 2.834 1.4310 68.594 10.3 24.2 62.8 | 90.0 | 61.2 | 37.1 VD-268B 31 45 4.219 1.4310 120.943 16.33 28.67 73.2 | 87.2 | 77.1 | 55.2 VD-263Z-10 34.5 44 4.636 1.4310 145.568 12.6 31.4 76.6 | 90.0 | 79.2 | 60.7 VD-288K-11 33 50 4.882 1.4310 147.06 19.87 30.13 80.1 | 95.0 | 81.4 | 63.9 VD-269 27.5 49 6.25 1.4310 204.375 16.3 32.7 88.2 | 92.3 | 90.5 | 81.8 VD-288Z-20 33 48.3 7.5 1.4310 218.813 19.13 29.18 97.0 | 93.9 | 98.9 | 98.2 VD-288L 30 47 7.636 1.4310 223.221 17.77 29.23 100.0 | 100.0 | 100.0 | 100.0 VD-288Z-42 27 55.1 9.322 1.4310 273.742 25.73 29.37 87.3 | 89.5 | 90.5 | 81.9 VD-298B 33 43 9.906 1.4310 226.081 20.18 22.82 85.2 | 90.0 | 88.4 | 77.1 VD-299A 28.2 50.8 10.676 1.4310 250.134 27.37 23.43 82.5 | 91.3 | 84.7 | 71.5 VD-313J-02 31.6 53.9 12.173 1.4310 281.47 30.78 23.12 76.2 | 86.6 | 79.2 | 62.7 VD-288Z-31 28 40 12.96 1.4310 276.777 18.64 21.36 70.0 | 90.6 | 60.4 | 58.9 VD-299 28.2 42.5 16.777 1.4310 381.759 19.75 22.75 61.5 | 87.2 | 51.9 | 45.5 VD-313J-07 28.6 56 17.102 1.4310 437.589 30.41 25.59 66.5 | 85.7 | 69.3 | 44.7 VD-313J-06 28.6 38.9 26.874 1.4310 454.935 21.97 16.93 58.9 | 86.8 | 61.6 | 28.4 VD-313L 25 48.2 27.266 1.4310 495.429 30.03 18.17 55.9 | 86.2 | 53.6 | 28.0 VD-313K-01 25 43 29.992 1.4310 451.258 27.95 15.05 53.4 | 84.2 | 50.5 | 25.5 VD-330 29 41 40.96 1.4310 687.296 24.22 16.78 53.1 | 83.2 | 57.4 | 18.6 VD-339O 32 41.7 49.294 1.4310 714.4 27.21 14.49 49.3 | 79.2 | 53.3 | 15.5 VD-336 24 49 50.909 1.4310 813.273 33.03 15.98 46.0 | 82.0 | 41.1 | 15.0 VD-359A-01 34 48 56.058 1.4310 840.347 33.01 14.99 44.4 | 80.7 | 38.9 | 13.6 VD-360A 30 50 63.636 1.4310 554.83 41.28 8.72 43.5 | 83.3 | 35.0 | 12.0 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring VD-288L Country of origin: DE, German; Compression spring VD-288L Product image - Compression springs VD-288L QR-Code: Compression spring VD-288L
