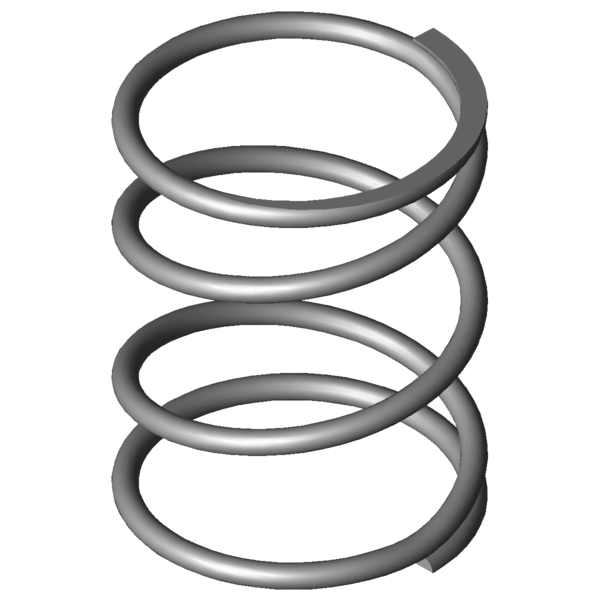

Home » Products » Compression springs » vd-263z-10 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-263Z-10 Stainless steel Ø 2.5 x 32 x 44 mm Scaled prices - Compression spring VD-263Z-10 Quantity Single price [EUR] 1 5.1600 EUR 2 3.6400 EUR 3 3.4700 EUR 7 2.4200 EUR 17 1.1500 EUR 37 0.8500 EUR 75 0.6800 EUR 125 0.4859 EUR 175 0.4196 EUR 250 0.3695 EUR 350 0.3536 EUR 450 0.3284 EUR Compression spring Buy Product image Compression spring VD-263Z-10 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-263Z-10 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 34.5 mm Outer coil diameter Dd 28.7 mm maximum diameter of mandrel Dh 35.3 mm minimum diameter of bush L0 44 mm unstressed spring length Lk mm buckling length Fn 145.568 N maximum force in static use Ln 12.6 mm Minimum length in static use sn 31.4 mm Maximum spring deflection in static use Fndyn 140.932 N maximum force in dynamic use Lndyn 13.6 mm Minimum length in dynamic use shdyn 8.3 mm Maximum stroke in dynamic use S 18.44 mm pitch of spring n 2.25 pc. number of active coils nt pc. total number of coils R 4.636 N/mm Spring rate Weight 16.5783 g weight of one spring Fntol 11.9 N (+/-) tolerance of maximum force in static use Fndtol 11.9 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 2.1 mm (+/-) tolerance of unstressed spring length Price group J - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-263Z-10 Stainless steel Ø 2.5 x 32 x 44 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-263Z-10 Stainless steel Ø 2.5 x 32 x 44 mm Metal spring characteristic download pdf file CAD data Compression spring VD-263Z-10 Stainless steel Ø 2.5 x 32 x 44 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-263Z-10 Stainless steel Ø 2.5 x 32 x 44 mm force-path-calculation Compression spring VD-263Z-10 Inquiry formular Compression spring VD-263Z-10 Stainless steel Ø 2.5 x 32 x 44 mm Inquiry formular Compression spring VD-263Z-10 Similar compression springs to Compression spring VD-263Z-10 Stainless steel Ø 2.5 x 32 x 44 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-263Z-10 1.4310 2.5 34.5 44 145.568 12.6 31.4 2.25 4.636 100.0 | 100.0 | 100.0 | 100.0 D-263Z-10 EN 10270-1 2.5 34.5 44 169.644 12.57 31.43 2.25 5.398 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206A-20 34 54 0.149 1.4310 5.043 20.21 33.79 43.4 | 78.7 | 48.2 | 3.2 VD-263D-12 42 45 0.433 1.4310 6.221 30.65 14.35 41.2 | 89.3 | 25.0 | 9.4 VD-207JL 26.5 45 0.81 1.4310 27.57 10.96 34.04 50.4 | 78.2 | 55.6 | 17.5 VD-233E-22 30 42 1.82 1.4310 59.072 9.55 32.45 64.2 | 84.8 | 68.7 | 39.3 VD-234L 30 50 1.822 1.4310 66.039 13.76 36.24 63.4 | 85.0 | 66.0 | 39.3 VD-268B 31 45 4.219 1.4310 120.943 16.33 28.67 91.4 | 95.9 | 87.2 | 91.0 VD-263Z-10 34.5 44 4.636 1.4310 145.568 12.6 31.4 100.0 | 100.0 | 100.0 | 100.0 VD-288K-11 33 50 4.882 1.4310 147.06 19.87 30.13 94.5 | 91.0 | 97.5 | 95.0 VD-288Z-20 33 48.3 7.5 1.4310 218.813 19.13 29.18 77.2 | 90.0 | 79.7 | 61.8 VD-288L 30 47 7.636 1.4310 223.221 17.77 29.23 76.6 | 90.0 | 79.2 | 60.7 VD-298B 33 43 9.906 1.4310 226.081 20.18 22.82 68.6 | 90.5 | 68.5 | 46.8 VD-288Z-31 28 40 12.96 1.4310 276.777 18.64 21.36 60.4 | 85.1 | 60.3 | 35.8 VD-299 28.2 42.5 16.777 1.4310 381.759 19.75 22.75 56.1 | 85.5 | 55.3 | 27.6 VD-324A 36 41 19.531 1.4310 317.5 24.74 16.26 52.1 | 83.8 | 48.8 | 23.7 VD-325 36 53.5 19.531 1.4310 561.641 24.74 28.76 54.2 | 80.2 | 58.8 | 23.7 VD-313J-06 28.6 38.9 26.874 1.4310 454.935 21.97 16.93 46.8 | 80.3 | 43.0 | 17.3 VD-330 29 41 40.96 1.4310 687.296 24.22 16.78 42.8 | 79.9 | 37.3 | 11.3 VD-354B 37 43 47.684 1.4310 604.382 30.33 12.67 40.8 | 80.3 | 32.2 | 9.7 VD-355 37 51 47.684 1.4310 985.851 30.33 20.67 42.2 | 76.5 | 40.3 | 9.7 VD-339O 32 41.7 49.294 1.4310 714.4 27.21 14.49 41.2 | 81.0 | 33.3 | 9.4 VD-359A-01 34 48 56.058 1.4310 840.347 33.01 14.99 40.3 | 80.1 | 32.5 | 8.3 VD-360A 30 50 63.636 1.4310 554.83 41.28 8.72 36.4 | 75.0 | 27.0 | 7.3 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring VD-263Z-10 Country of origin: DE, German; Compression spring VD-263Z-10 Product image - Compression springs VD-263Z-10 QR-Code: Compression spring VD-263Z-10
