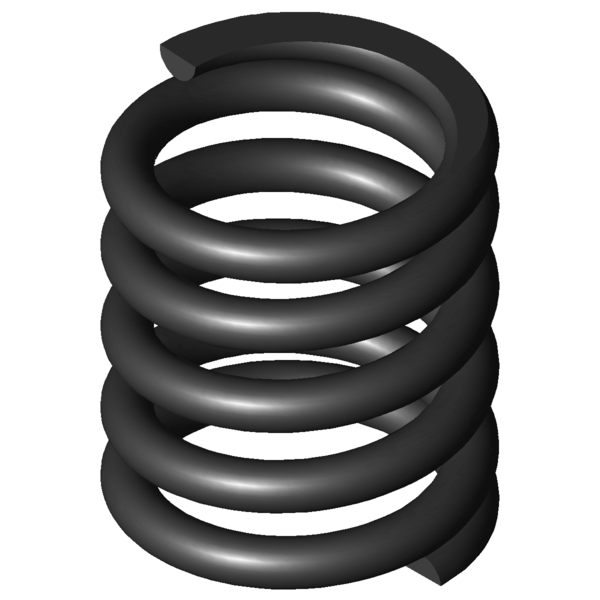

Home » Products » Compression springs » d-354b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-354B Spring steel Ø 5 x 32 x 43 mm Scaled prices - Compression spring D-354B Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 1.8300 EUR 37 1.5400 EUR 75 1.5100 EUR 125 1.4634 EUR 175 1.4586 EUR 250 1.4345 EUR 350 1.4116 EUR Compression spring Buy Product image Compression spring D-354B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-354B Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 37 mm Outer coil diameter Dd 26 mm maximum diameter of mandrel Dh 38.2 mm minimum diameter of bush L0 43 mm unstressed spring length Lk mm buckling length Fn 703.673 N maximum force in static use Ln 30.33 mm Minimum length in static use sn 12.67 mm Maximum spring deflection in static use Fndyn 624.572 N maximum force in dynamic use Lndyn 31.75 mm Minimum length in dynamic use shdyn 10.04 mm Maximum stroke in dynamic use S 10.857 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 55.517 N/mm Spring rate Weight 85.8169 g weight of one spring Fntol 67.56 N (+/-) tolerance of maximum force in static use Fndtol 66.37 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.03 mm (+/-) tolerance of unstressed spring length Price group AB - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-354B Spring steel Ø 5 x 32 x 43 mm Datasheet download pdf file Metal spring characteristic Compression spring D-354B Spring steel Ø 5 x 32 x 43 mm Metal spring characteristic download pdf file CAD data Compression spring D-354B Spring steel Ø 5 x 32 x 43 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-354B Spring steel Ø 5 x 32 x 43 mm force-path-calculation Compression spring D-354B Inquiry formular Compression spring D-354B Spring steel Ø 5 x 32 x 43 mm Inquiry formular Compression spring D-354B Similar compression springs to Compression spring D-354B Spring steel Ø 5 x 32 x 43 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-354B EN 10270-1 5 37 43 703.673 30.33 12.67 3.5 55.517 100.0 | 100.0 | 100.0 | 100.0 VD-354B 1.4310 5 37 43 604.382 30.33 12.67 3.5 47.684 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263Z-10 34.5 44 5.398 EN 10270-1 169.644 12.57 31.43 40.8 | 80.3 | 32.2 | 9.7 D-288K-11 33 50 5.684 EN 10270-1 171.22 19.87 30.13 40.2 | 77.1 | 33.2 | 10.2 D-288Z-20 33 48.3 8.732 EN 10270-1 254.76 19.13 29.18 45.0 | 79.4 | 39.8 | 15.7 D-288L 30 47 8.89 EN 10270-1 259.893 17.77 29.23 44.1 | 76.2 | 40.1 | 16.0 D-298B 33 43 11.533 EN 10270-1 263.223 20.18 22.82 50.5 | 84.4 | 46.5 | 20.8 D-288Z-31 28 40 15.089 EN 10270-1 322.248 18.64 21.36 52.0 | 76.2 | 52.6 | 27.2 D-299 28.2 42.5 19.533 EN 10270-1 444.477 19.75 22.75 58.1 | 79.7 | 59.4 | 35.2 D-324A 36 41 22.74 EN 10270-1 369.661 24.74 16.26 65.7 | 90.9 | 65.2 | 40.9 D-325 36 53.5 22.74 EN 10270-1 653.91 24.74 28.76 65.1 | 85.9 | 68.5 | 40.9 D-339N-03 41 52 24.545 EN 10270-1 592.036 27.88 24.12 66.7 | 87.6 | 68.3 | 44.2 D-313J-06 28.6 38.9 31.289 EN 10270-1 529.675 21.97 16.93 70.4 | 79.9 | 75.1 | 56.3 D-313K-01 25 43 34.919 EN 10270-1 525.394 27.95 15.05 74.0 | 79.9 | 79.4 | 62.9 D-339N-02 41 35 38.182 EN 10270-1 529.2 21.14 13.86 79.8 | 87.2 | 83.3 | 68.7 D-330 29 41 47.689 EN 10270-1 800.209 24.22 16.78 84.1 | 84.6 | 81.7 | 85.9 D-354B 37 43 55.517 EN 10270-1 703.673 30.33 12.67 100.0 | 100.0 | 100.0 | 100.0 D-339O 32 41.7 57.392 EN 10270-1 831.766 27.21 14.49 91.3 | 91.2 | 86.0 | 96.8 D-364R-80 46 42 58.942 EN 10270-1 324.181 36.5 5.5 75.4 | 87.1 | 44.7 | 94.2 D-359A-01 34 48 65.267 EN 10270-1 978.405 33.01 14.99 85.7 | 93.8 | 78.2 | 85.1 D-364J-08 42 44 76.683 EN 10270-1 1301.313 27.03 16.97 76.3 | 92.2 | 64.4 | 72.4 D-364K 38 48.6 77.589 EN 10270-1 1196.171 33.18 15.42 78.1 | 92.3 | 70.5 | 71.6 D-364R-02 39 51 96.935 EN 10270-1 1719.492 33.26 17.74 67.3 | 88.5 | 56.2 | 57.3 D-364R-90 39 47 104.969 EN 10270-1 1149.113 36.05 10.95 72.2 | 89.9 | 73.8 | 52.9 D-360 30 41 116.429 EN 10270-1 1291.629 29.91 11.09 70.3 | 92.1 | 71.0 | 47.7 D-385 38.3 50 139.93 EN 10270-1 1719.977 37.71 12.29 65.3 | 87.3 | 69.0 | 39.7 D-389A-02 39 51 174.057 EN 10270-1 1912.45 40.01 10.99 59.4 | 84.6 | 61.8 | 31.9 D-364O 28 39.3 233.831 EN 10270-1 1553.052 32.66 6.64 52.9 | 86.0 | 48.9 | 23.7 D-389O 34 48.3 355.059 EN 10270-1 2415.555 41.5 6.8 47.1 | 84.1 | 41.4 | 15.6 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring D-354B Country of origin: DE, German; Compression spring D-354B Product image - Compression springs D-354B QR-Code: Compression spring D-354B
