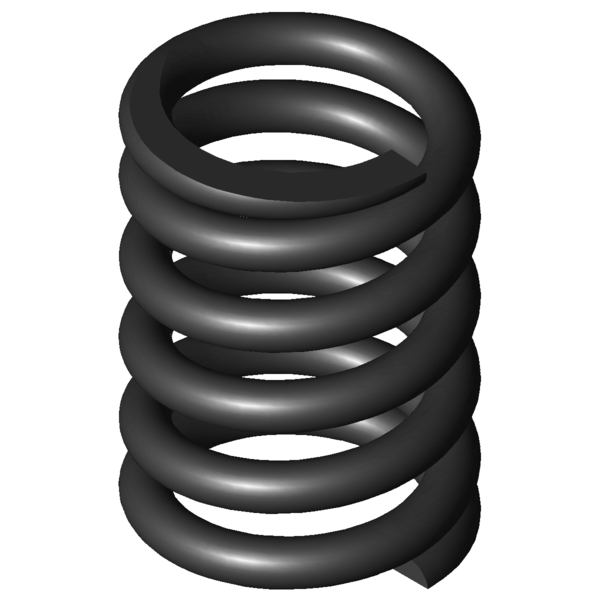

Home » Products » Compression springs » d-359a-01 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-359A-01 Spring steel Ø 5 x 29 x 48 mm Scaled prices - Compression spring D-359A-01 Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 1.8300 EUR 37 1.5400 EUR 75 1.5100 EUR 125 1.4634 EUR 175 1.4586 EUR 250 1.4345 EUR 350 1.4116 EUR Compression spring Buy Product image Compression spring D-359A-01 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-359A-01 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 29 mm Mean coil diameter De 34 mm Outer coil diameter Dd 23.1 mm maximum diameter of mandrel Dh 35.2 mm minimum diameter of bush L0 48 mm unstressed spring length Lk mm buckling length Fn 978.405 N maximum force in static use Ln 33.01 mm Minimum length in static use sn 14.99 mm Maximum spring deflection in static use Fndyn 880.452 N maximum force in dynamic use Lndyn 34.51 mm Minimum length in dynamic use shdyn 8 mm Maximum stroke in dynamic use S 10.75 mm pitch of spring n 4 pc. number of active coils nt pc. total number of coils R 65.267 N/mm Spring rate Weight 84.8417 g weight of one spring Fntol 83.5 N (+/-) tolerance of maximum force in static use Fndtol 82 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 1.02 mm (+/-) tolerance of unstressed spring length Price group AB - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-359A-01 Spring steel Ø 5 x 29 x 48 mm Datasheet download pdf file Metal spring characteristic Compression spring D-359A-01 Spring steel Ø 5 x 29 x 48 mm Metal spring characteristic download pdf file CAD data Compression spring D-359A-01 Spring steel Ø 5 x 29 x 48 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-359A-01 Spring steel Ø 5 x 29 x 48 mm force-path-calculation Compression spring D-359A-01 Inquiry formular Compression spring D-359A-01 Spring steel Ø 5 x 29 x 48 mm Inquiry formular Compression spring D-359A-01 Similar compression springs to Compression spring D-359A-01 Spring steel Ø 5 x 29 x 48 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-359A-01 EN 10270-1 5 34 48 978.405 33.01 14.99 4 65.267 100.0 | 100.0 | 100.0 | 100.0 VD-359A-01 1.4310 5 34 48 840.347 33.01 14.99 4 56.058 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-269 27.5 49 7.277 EN 10270-1 234.313 16.8 32.2 40.9 | 76.3 | 35.3 | 11.1 D-288Z-20 33 48.3 8.732 EN 10270-1 254.76 19.13 29.18 45.9 | 85.5 | 38.7 | 13.4 D-288L 30 47 8.89 EN 10270-1 259.893 17.77 29.23 44.4 | 80.7 | 38.9 | 13.6 D-294 35.2 58.5 9.314 EN 10270-1 354.874 20.4 38.1 44.3 | 80.9 | 37.8 | 14.3 D-298B 33 43 11.533 EN 10270-1 263.223 20.18 22.82 49.2 | 83.5 | 46.3 | 17.7 D-299A 28.2 50.8 12.43 EN 10270-1 291.228 27.37 23.43 48.8 | 80.5 | 46.9 | 19.0 D-313J-02 31.6 53.9 14.172 EN 10270-1 327.711 30.78 23.12 51.8 | 84.7 | 49.2 | 21.7 D-299 28.2 42.5 19.533 EN 10270-1 444.477 19.75 22.75 54.7 | 78.5 | 55.7 | 29.9 D-325 36 53.5 22.74 EN 10270-1 653.91 24.74 28.76 60.8 | 88.1 | 59.5 | 34.8 D-324A 36 41 22.74 EN 10270-1 369.661 24.74 16.26 62.1 | 86.6 | 65.0 | 34.8 D-313L 25 48.2 31.745 EN 10270-1 576.821 30.03 18.17 67.0 | 81.7 | 70.7 | 48.6 D-355 37 51 55.517 EN 10270-1 1147.813 30.33 20.67 86.4 | 95.3 | 78.9 | 85.1 D-354B 37 43 55.517 EN 10270-1 703.673 30.33 12.67 85.7 | 93.8 | 78.2 | 85.1 D-339O 32 41.7 57.392 EN 10270-1 831.766 27.21 14.49 89.7 | 90.3 | 90.8 | 87.9 D-359A-01 34 48 65.267 EN 10270-1 978.405 33.01 14.99 100.0 | 100.0 | 100.0 | 100.0 D-360A 30 50 74.091 EN 10270-1 645.98 41.28 8.72 81.7 | 94.7 | 62.1 | 88.1 D-364K 38 48.6 77.589 EN 10270-1 1196.171 33.18 15.42 88.9 | 93.0 | 89.5 | 84.1 D-364R-02 39 51 96.935 EN 10270-1 1719.492 33.26 17.74 75.7 | 89.2 | 70.7 | 67.3 D-364R-90 39 47 104.969 EN 10270-1 1149.113 36.05 10.95 76.9 | 89.5 | 79.1 | 62.2 D-360 30 41 116.429 EN 10270-1 1291.629 29.91 11.09 74.0 | 91.2 | 74.9 | 56.0 D-385 38.3 50 139.93 EN 10270-1 1719.977 37.71 12.29 68.0 | 88.0 | 69.4 | 46.6 D-389A-02 39 51 174.057 EN 10270-1 1912.45 40.01 10.99 61.7 | 85.3 | 62.2 | 37.5 D-389O 34 48.3 355.059 EN 10270-1 2415.555 41.5 6.8 50.5 | 90.3 | 42.9 | 18.4 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring D-359A-01 Country of origin: DE, German; Compression spring D-359A-01 Product image - Compression springs D-359A-01 QR-Code: Compression spring D-359A-01
