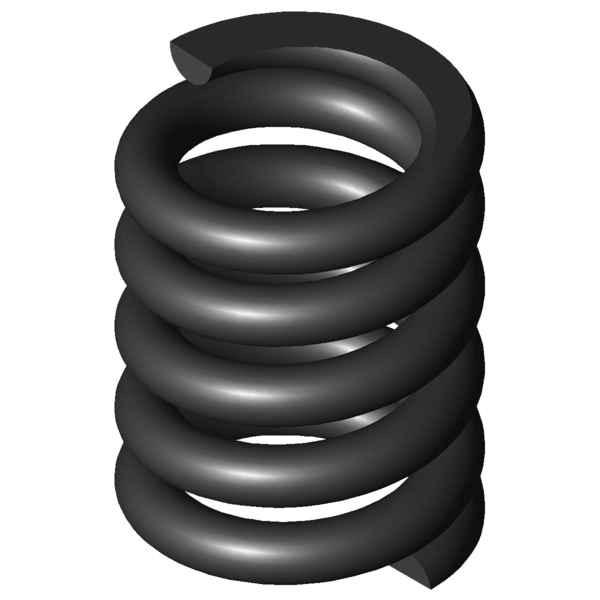

Home » Products » Compression springs » d-389a-02 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-389A-02 Spring steel Ø 6.7 x 32.3 x 51 mm Scaled prices - Compression spring D-389A-02 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.1813 EUR 175 2.1735 EUR 250 2.1481 EUR 350 2.0967 EUR Compression spring Buy Product image Compression spring D-389A-02 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-389A-02 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 6.7 mm Wire diameter Di mm Inner coil diameter D 32.3 mm Mean coil diameter De 39 mm Outer coil diameter Dd 24.6 mm maximum diameter of mandrel Dh 40.2 mm minimum diameter of bush L0 51 mm unstressed spring length Lk mm buckling length Fn 1912.45 N maximum force in static use Ln 40.01 mm Minimum length in static use sn 10.99 mm Maximum spring deflection in static use Fndyn 1637.875 N maximum force in dynamic use Lndyn 41.59 mm Minimum length in dynamic use shdyn 5.94 mm Maximum stroke in dynamic use S 12.657 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 174.057 N/mm Spring rate Weight 155.5375 g weight of one spring Fntol 197 N (+/-) tolerance of maximum force in static use Fndtol 193 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 0.97 mm (+/-) tolerance of unstressed spring length Price group AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-389A-02 Spring steel Ø 6.7 x 32.3 x 51 mm Datasheet download pdf file Metal spring characteristic Compression spring D-389A-02 Spring steel Ø 6.7 x 32.3 x 51 mm Metal spring characteristic download pdf file CAD data Compression spring D-389A-02 Spring steel Ø 6.7 x 32.3 x 51 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-389A-02 Spring steel Ø 6.7 x 32.3 x 51 mm force-path-calculation Compression spring D-389A-02 Inquiry formular Compression spring D-389A-02 Spring steel Ø 6.7 x 32.3 x 51 mm Inquiry formular Compression spring D-389A-02 Similar compression springs to Compression spring D-389A-02 Spring steel Ø 6.7 x 32.3 x 51 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-389A-02 EN 10270-1 6.7 39 51 1912.45 40.01 10.99 3.5 174.057 67.7 | 91.6 | 66.9 | 44.6 VD-389A-02 1.4310 6.7 39 51 1642.595 40.01 10.99 3.5 149.497 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-339N-03 41 52 24.545 EN 10270-1 592.036 27.88 24.12 59.2 | 89.3 | 56.7 | 31.6 D-355A 37 63 35.329 EN 10270-1 744.049 41.94 21.06 49.8 | 83.5 | 45.5 | 20.3 D-355 37 51 55.517 EN 10270-1 1147.813 30.33 20.67 83.8 | 94.5 | 85.3 | 71.6 D-354B 37 43 55.517 EN 10270-1 703.673 30.33 12.67 78.1 | 92.3 | 70.5 | 71.6 D-359A-01 34 48 65.267 EN 10270-1 978.405 33.01 14.99 88.9 | 93.0 | 89.5 | 84.1 D-379B 46.3 47 71.644 EN 10270-1 631.306 38.19 8.81 78.7 | 88.7 | 55.0 | 92.4 D-360A 30 50 74.091 EN 10270-1 645.98 41.28 8.72 79.9 | 89.0 | 55.3 | 95.5 D-364R-03 39 64 74.127 EN 10270-1 1784.495 39.93 24.07 66.9 | 88.8 | 69.5 | 42.6 D-364J-08 42 44 76.683 EN 10270-1 1301.313 27.03 16.97 94.6 | 93.7 | 91.4 | 98.9 D-364K 38 48.6 77.589 EN 10270-1 1196.171 33.18 15.42 100.0 | 100.0 | 100.0 | 100.0 D-364R-02 39 51 96.935 EN 10270-1 1719.492 33.26 17.74 84.7 | 95.9 | 78.2 | 80.0 D-364R-90 39 47 104.969 EN 10270-1 1149.113 36.05 10.95 84.2 | 95.3 | 83.5 | 73.9 D-385 38.3 50 139.93 EN 10270-1 1719.977 37.71 12.29 74.9 | 94.6 | 74.6 | 55.4 D-389A-03 39 64 162.453 EN 10270-1 2810.439 46.7 17.3 84.1 | 93.2 | 65.8 | 93.4 D-389A-02 39 51 174.057 EN 10270-1 1912.45 40.01 10.99 67.7 | 91.6 | 66.9 | 44.6 D-414AA 42 53 303.335 EN 10270-1 1650.56 47.56 5.44 54.4 | 83.6 | 53.9 | 25.6 D-389O 34 48.3 355.059 EN 10270-1 2415.555 41.5 6.8 52.6 | 89.1 | 46.8 | 21.8 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring D-389A-02 Country of origin: DE, German; Compression spring D-389A-02 Product image - Compression springs D-389A-02 QR-Code: Compression spring D-389A-02
