Compression spring D-389A-03 Spring steel Ø 6.7 x 32.3 x 64 mm

Scaled prices - Compression spring D-389A-03

Quantity	Single price [EUR]
1	13.5300 EUR
2	10.7800 EUR
3	6.2300 EUR
7	4.2800 EUR
17	2.7100 EUR
37	2.3100 EUR
75	2.2200 EUR
125	2.1813 EUR
175	2.1735 EUR
250	2.1481 EUR
350	2.0967 EUR

Compression spring Buy

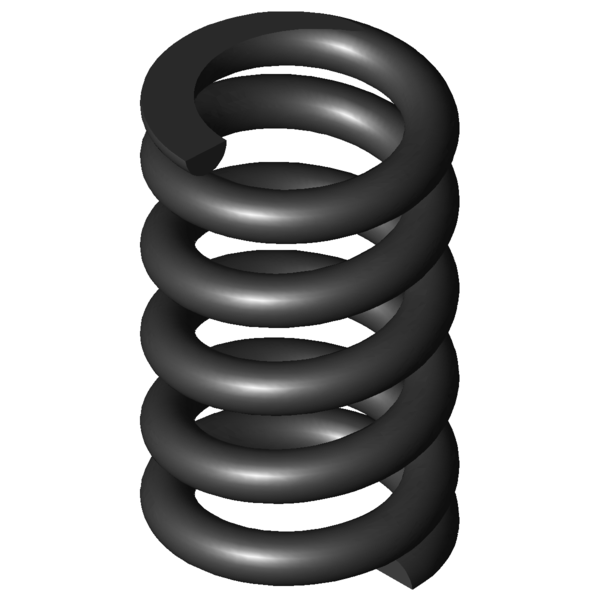

Product image Compression spring D-389A-03

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-389A-03

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	6.7	mm	Wire diameter
Di		mm	Inner coil diameter
D	32.3	mm	Mean coil diameter
De	39	mm	Outer coil diameter
Dd	24.6	mm	maximum diameter of mandrel
Dh	40.2	mm	minimum diameter of bush
L0	64	mm	unstressed spring length
Lk		mm	buckling length
Fn	2810.439	N	maximum force in static use
Ln	46.7	mm	Minimum length in static use
sn	17.3	mm	Maximum spring deflection in static use
Fndyn	2144.381	N	maximum force in dynamic use
Lndyn	50.8	mm	Minimum length in dynamic use
shdyn	5.02	mm	Maximum stroke in dynamic use
S	15.28	mm	pitch of spring
n	3.75	pc.	number of active coils
nt		pc.	total number of coils
R	162.453	N/mm	Spring rate
Weight	162.6073	g	weight of one spring
Fntol	212	N	(+/-) tolerance of maximum force in static use
Fndtol	160	N	(+/-) tolerance of maximum dynamic force
Detol	0.5	mm	(+/-) tolerances of outer coil diameter
L0tol	1.01	mm	(+/-) tolerance of unstressed spring length
Price group	AG	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-389A-03 Spring steel Ø 6.7 x 32.3 x 64 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-389A-03 Spring steel Ø 6.7 x 32.3 x 64 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-389A-03 Spring steel Ø 6.7 x 32.3 x 64 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-389A-03 Spring steel Ø 6.7 x 32.3 x 64 mm

force-path-calculation Compression spring D-389A-03

Inquiry formular Compression spring D-389A-03 Spring steel Ø 6.7 x 32.3 x 64 mm

Inquiry formular Compression spring D-389A-03
