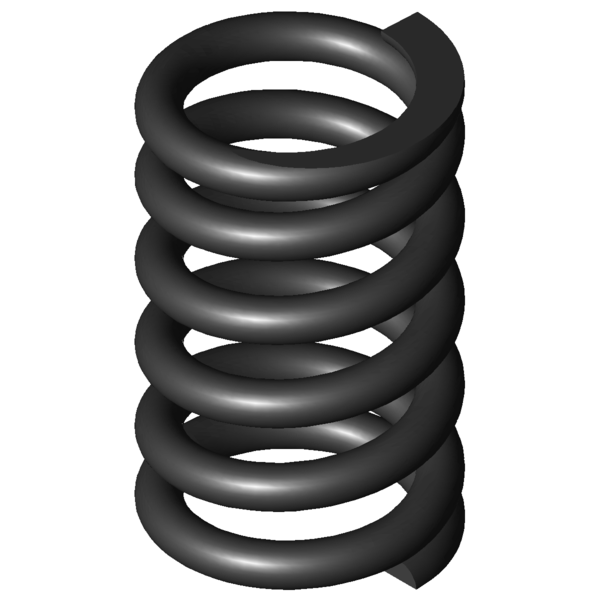

Home » Products » Compression springs » d-364r-03 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364R-03 Spring steel Ø 5.8 x 33.2 x 64 mm Scaled prices - Compression spring D-364R-03 Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 2.1700 EUR 37 1.8100 EUR 75 1.7400 EUR 125 1.7081 EUR 175 1.7063 EUR 250 1.6746 EUR 350 1.6471 EUR Compression spring Buy Product image Compression spring D-364R-03 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364R-03 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.8 mm Wire diameter Di mm Inner coil diameter D 33.2 mm Mean coil diameter De 39 mm Outer coil diameter Dd 26.4 mm maximum diameter of mandrel Dh 40.4 mm minimum diameter of bush L0 64 mm unstressed spring length Lk mm buckling length Fn 1784.495 N maximum force in static use Ln 39.93 mm Minimum length in static use sn 24.07 mm Maximum spring deflection in static use Fndyn 1452.889 N maximum force in dynamic use Lndyn 44.4 mm Minimum length in dynamic use shdyn 7.69 mm Maximum stroke in dynamic use S 13.694 mm pitch of spring n 4.25 pc. number of active coils nt pc. total number of coils R 74.127 N/mm Spring rate Weight 136.1427 g weight of one spring Fntol 116 N (+/-) tolerance of maximum force in static use Fndtol 101 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.16 mm (+/-) tolerance of unstressed spring length Price group AC - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364R-03 Spring steel Ø 5.8 x 33.2 x 64 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364R-03 Spring steel Ø 5.8 x 33.2 x 64 mm Metal spring characteristic download pdf file CAD data Compression spring D-364R-03 Spring steel Ø 5.8 x 33.2 x 64 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364R-03 Spring steel Ø 5.8 x 33.2 x 64 mm force-path-calculation Compression spring D-364R-03 Inquiry formular Compression spring D-364R-03 Spring steel Ø 5.8 x 33.2 x 64 mm Inquiry formular Compression spring D-364R-03 Similar compression springs to Compression spring D-364R-03 Spring steel Ø 5.8 x 33.2 x 64 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364R-03 EN 10270-1 5.8 39 64 1784.495 39.93 24.07 4.25 74.127 84.9 | 93.2 | 85.0 | 76.5 VD-364R-03 1.4310 5.8 39 64 1532.695 39.93 24.07 4.25 63.667 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-319 44 71 11.643 EN 10270-1 529.75 25.5 45.5 56.7 | 88.9 | 53.7 | 27.3 D-313J-03 31.6 62.7 11.992 EN 10270-1 331.418 35.06 27.64 49.8 | 80.4 | 52.8 | 16.2 D-325A 36 61 14.471 EN 10270-1 386.199 34.31 26.69 47.0 | 81.6 | 44.5 | 14.9 D-339N-03 41 52 24.545 EN 10270-1 592.036 27.88 24.12 56.5 | 90.3 | 54.0 | 25.3 D-350 45 64 28.425 EN 10270-1 940.013 30.93 33.07 56.4 | 87.8 | 53.9 | 27.6 D-355A 37 63 35.329 EN 10270-1 744.049 41.94 21.06 62.5 | 87.3 | 63.8 | 36.4 D-356 37 75 35.329 EN 10270-1 1168.001 41.94 33.06 88.3 | 90.8 | 91.1 | 82.9 D-339P 32 60.4 36.522 EN 10270-1 832.288 37.61 22.79 68.2 | 84.7 | 70.7 | 49.3 D-364R-81 46 66 37.509 EN 10270-1 581.382 50.5 15.5 59.6 | 94.3 | 48.3 | 36.4 D-364J-09 42 70 42.602 EN 10270-1 1284.016 39.86 30.14 100.0 | 100.0 | 100.0 | 100.0 D-359A-02 34 68 43.511 EN 10270-1 1021.916 44.51 23.49 88.8 | 89.7 | 78.8 | 97.9 D-364L 38 70 49.375 EN 10270-1 1191.939 45.86 24.14 89.9 | 96.8 | 86.5 | 86.3 D-364R-04 39 76 60.008 EN 10270-1 1764.728 46.59 29.41 83.1 | 93.3 | 85.2 | 71.0 D-364R-91 39 68 66.799 EN 10270-1 1215.912 49.8 18.2 78.4 | 93.9 | 77.5 | 63.8 D-364R-03 39 64 74.127 EN 10270-1 1784.495 39.93 24.07 84.9 | 93.2 | 85.0 | 76.5 D-364R-48 33.6 66 82.982 EN 10270-1 1640.136 46.24 19.77 89.9 | 93.2 | 87.0 | 89.4 D-386 38.3 75 89.047 EN 10270-1 2043.089 52.06 22.94 69.3 | 90.6 | 69.5 | 47.8 D-364R-02 39 51 96.935 EN 10270-1 1719.492 33.26 17.74 100.0 | 100.0 | 100.0 | 100.0 D-389A-04 39 76 110.763 EN 10270-1 2301.704 55.22 20.78 63.3 | 89.0 | 62.4 | 38.5 D-385 38.3 50 139.93 EN 10270-1 1719.977 37.71 12.29 83.3 | 96.1 | 84.6 | 69.3 D-389A-03 39 64 162.453 EN 10270-1 2810.439 46.7 17.3 75.9 | 88.8 | 79.4 | 59.7 D-389A-02 39 51 174.057 EN 10270-1 1912.45 40.01 10.99 75.7 | 95.5 | 75.9 | 55.7 D-389P 34 68 225.947 EN 10270-1 2438.149 57.21 10.79 69.3 | 91.3 | 70.9 | 45.6 D-450 46 67 873.414 EN 10270-1 7686.043 58.2 8.8 36.2 | 80.7 | 23.0 | 4.9 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-364R-03 Country of origin: DE, German; Compression spring D-364R-03 Product image - Compression springs D-364R-03 QR-Code: Compression spring D-364R-03
