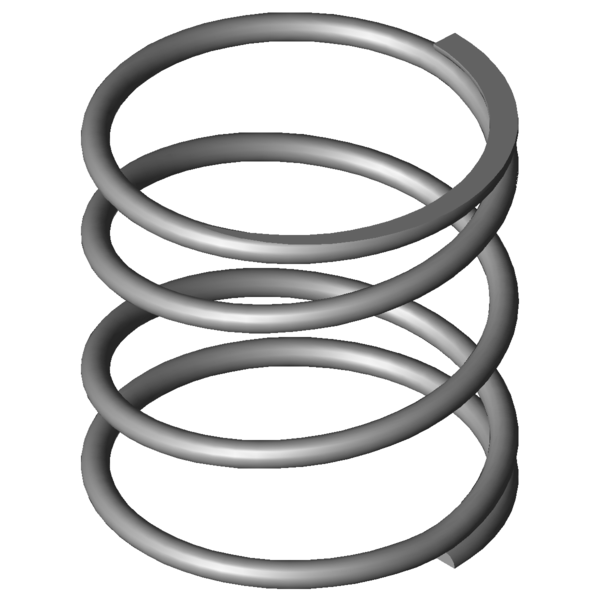

Home » Products » Compression springs » vd-289c-06 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-289C-06 Stainless steel Ø 3.2 x 44.8 x 48 mm Scaled prices - Compression spring VD-289C-06 Quantity Single price [EUR] 1 5.7800 EUR 2 4.0800 EUR 3 3.8900 EUR 7 3.0700 EUR 17 1.5900 EUR 37 1.2800 EUR 75 1.1200 EUR 125 0.8513 EUR 175 0.7951 EUR 250 0.7263 EUR 350 0.6128 EUR 450 0.5811 EUR Compression spring Buy Product image Compression spring VD-289C-06 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-289C-06 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 44.8 mm Mean coil diameter De 48 mm Outer coil diameter Dd 40.4 mm maximum diameter of mandrel Dh 50 mm minimum diameter of bush L0 48 mm unstressed spring length Lk mm buckling length Fn 143.129 N maximum force in static use Ln 16.44 mm Minimum length in static use sn 31.56 mm Maximum spring deflection in static use Fndyn 136.281 N maximum force in dynamic use Lndyn 17.95 mm Minimum length in dynamic use shdyn 19.8 mm Maximum stroke in dynamic use S 19.911 mm pitch of spring n 2.25 pc. number of active coils nt pc. total number of coils R 4.535 N/mm Spring rate Weight 38.0266 g weight of one spring Fntol 16.6 N (+/-) tolerance of maximum force in static use Fndtol 16.6 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 3.2 mm (+/-) tolerance of unstressed spring length Price group O - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-289C-06 Stainless steel Ø 3.2 x 44.8 x 48 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-289C-06 Stainless steel Ø 3.2 x 44.8 x 48 mm Metal spring characteristic download pdf file CAD data Compression spring VD-289C-06 Stainless steel Ø 3.2 x 44.8 x 48 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-289C-06 Stainless steel Ø 3.2 x 44.8 x 48 mm force-path-calculation Compression spring VD-289C-06 Inquiry formular Compression spring VD-289C-06 Stainless steel Ø 3.2 x 44.8 x 48 mm Inquiry formular Compression spring VD-289C-06 Similar compression springs to Compression spring VD-289C-06 Stainless steel Ø 3.2 x 44.8 x 48 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-289C-06 1.4310 3.2 48 48 143.129 16.44 31.56 2.25 4.535 100.0 | 100.0 | 100.0 | 100.0 D-289C-06 EN 10270-1 3.2 48 48 166.643 16.44 31.56 2.25 5.28 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263D-12 42 45 0.433 1.4310 6.221 30.65 14.35 39.3 | 83.3 | 24.9 | 9.6 VD-263VH 46 60 1.846 1.4310 85.355 13.75 46.25 63.1 | 84.7 | 63.9 | 40.7 VD-289C-06 48 48 4.535 1.4310 143.129 16.44 31.56 100.0 | 100.0 | 100.0 | 100.0 VD-288K-11 33 50 4.882 1.4310 147.06 19.87 30.13 91.1 | 84.1 | 96.4 | 92.9 VD-288Z-20 33 48.3 7.5 1.4310 218.813 19.13 29.18 75.6 | 87.3 | 78.9 | 60.5 VD-339J-20 58 50 10.414 1.4310 288.466 22.3 27.7 65.2 | 83.3 | 68.7 | 43.5 VD-364R-41 54 59.4 13.799 1.4310 149.985 48.53 10.87 57.8 | 75.6 | 64.9 | 32.9 VD-349A-02 50 50 18.466 1.4310 379.471 29.45 20.55 53.8 | 85.3 | 51.4 | 24.6 VD-325 36 53.5 19.531 1.4310 561.641 24.74 28.76 54.4 | 81.6 | 58.3 | 23.2 VD-339N-03 41 52 21.082 1.4310 508.076 27.9 24.1 52.2 | 82.9 | 52.3 | 21.5 VD-364R-40 54 38 21.685 1.4310 66.005 34.96 3.04 41.3 | 75.1 | 27.9 | 20.9 VD-364J-01 56 53 27.631 1.4310 740.52 26.2 26.8 48.9 | 78.2 | 52.1 | 16.4 VD-364J-21 48 63 29.801 1.4310 865.705 33.95 29.05 49.2 | 78.1 | 54.3 | 15.2 VD-364J-20 48 45 46.356 1.4310 892.36 25.75 19.25 44.1 | 84.0 | 38.5 | 9.8 VD-355 37 51 47.684 1.4310 985.851 30.33 20.67 42.6 | 78.4 | 40.0 | 9.5 VD-354B 37 43 47.684 1.4310 604.382 30.33 12.67 39.4 | 76.9 | 31.9 | 9.5 VD-364R-80 46 42 50.625 1.4310 278.438 36.5 5.5 40.8 | 78.9 | 34.4 | 9.0 VD-359A-01 34 48 56.058 1.4310 840.347 33.01 14.99 39.5 | 78.3 | 32.3 | 8.1 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring VD-289C-06 Country of origin: DE, German; Compression spring VD-289C-06 Product image - Compression springs VD-289C-06 QR-Code: Compression spring VD-289C-06
