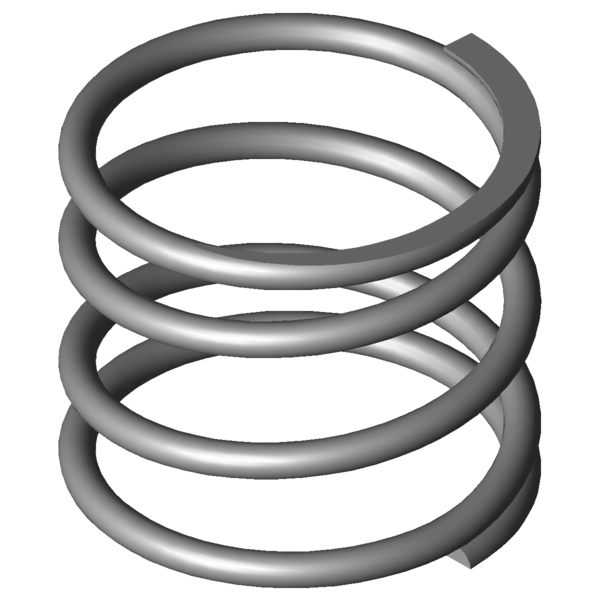

Home » Products » Compression springs » vd-339j-20 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339J-20 Stainless steel Ø 4.5 x 53.5 x 50 mm Scaled prices - Compression spring VD-339J-20 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-339J-20 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339J-20 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 53.5 mm Mean coil diameter De 58 mm Outer coil diameter Dd 47.8 mm maximum diameter of mandrel Dh 59.3 mm minimum diameter of bush L0 50 mm unstressed spring length Lk mm buckling length Fn 288.466 N maximum force in static use Ln 22.3 mm Minimum length in static use sn 27.7 mm Maximum spring deflection in static use Fndyn 271.803 N maximum force in dynamic use Lndyn 23.9 mm Minimum length in dynamic use shdyn 17.3 mm Maximum stroke in dynamic use S 20.222 mm pitch of spring n 2.25 pc. number of active coils nt pc. total number of coils R 10.414 N/mm Spring rate Weight 89.8024 g weight of one spring Fntol 31.5 N (+/-) tolerance of maximum force in static use Fndtol 31.3 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 2.6 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339J-20 Stainless steel Ø 4.5 x 53.5 x 50 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339J-20 Stainless steel Ø 4.5 x 53.5 x 50 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339J-20 Stainless steel Ø 4.5 x 53.5 x 50 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339J-20 Stainless steel Ø 4.5 x 53.5 x 50 mm force-path-calculation Compression spring VD-339J-20 Inquiry formular Compression spring VD-339J-20 Stainless steel Ø 4.5 x 53.5 x 50 mm Inquiry formular Compression spring VD-339J-20 Similar compression springs to Compression spring VD-339J-20 Stainless steel Ø 4.5 x 53.5 x 50 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339J-20 1.4310 4.5 58 50 288.466 22.3 27.7 2.25 10.414 100.0 | 100.0 | 100.0 | 100.0 D-339J-20 EN 10270-1 4.5 58 50 336 22.28 27.72 2.25 12.125 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263D-12 42 45 0.433 1.4310 6.221 30.65 14.35 33.9 | 70.4 | 27.0 | 4.2 VD-263VH 46 60 1.846 1.4310 85.355 13.75 46.25 45.1 | 72.7 | 44.7 | 17.7 VD-289C-06 48 48 4.535 1.4310 143.129 16.44 31.56 65.2 | 83.3 | 68.7 | 43.5 VD-288K-11 33 50 4.882 1.4310 147.06 19.87 30.13 63.8 | 73.0 | 71.5 | 46.9 VD-339J-09 68 45 7.007 1.4310 164.037 21.59 23.41 76.6 | 91.8 | 70.7 | 67.3 VD-364R-30 69 56 9.648 1.4310 187.857 36.53 19.47 71.3 | 84.8 | 39.7 | 89.2 VD-339J-20 58 50 10.414 1.4310 288.466 22.3 27.7 100.0 | 100.0 | 100.0 | 100.0 VD-344B 55 66 12.5 1.4310 426.563 31.88 34.13 81.5 | 86.9 | 74.4 | 83.3 VD-364R-41 54 59.4 13.799 1.4310 149.985 48.53 10.87 69.0 | 85.9 | 45.6 | 75.5 VD-349A-02 50 50 18.466 1.4310 379.471 29.45 20.55 74.5 | 92.1 | 75.1 | 56.4 VD-339N-03 41 52 21.082 1.4310 508.076 27.9 24.1 70.1 | 88.9 | 71.9 | 49.4 VD-364R-40 54 38 21.685 1.4310 66.005 34.96 3.04 49.3 | 83.2 | 16.9 | 48.0 VD-364J-01 56 53 27.631 1.4310 740.52 26.2 26.8 65.5 | 90.9 | 67.9 | 37.7 VD-364J-21 48 63 29.801 1.4310 865.705 33.95 29.05 60.2 | 81.3 | 64.3 | 34.9 VD-374B 56.3 64 31.506 1.4310 789.591 38.94 25.06 59.6 | 82.2 | 63.5 | 33.1 VD-364J-20 48 45 46.356 1.4310 892.36 25.75 19.25 52.7 | 84.9 | 50.9 | 22.5 VD-355 37 51 47.684 1.4310 985.851 30.33 20.67 52.6 | 83.9 | 51.9 | 21.8 VD-364R-80 46 42 50.625 1.4310 278.438 36.5 5.5 52.7 | 79.4 | 58.2 | 20.6 VD-379B 46.3 47 61.535 1.4310 542.226 38.19 8.81 47.1 | 81.8 | 42.5 | 16.9 VD-380 46.3 60 61.535 1.4310 1342.181 38.19 21.81 48.4 | 78.2 | 50.1 | 16.9 VD-364J-08 42 44 65.863 1.4310 1116.375 27.05 16.95 46.7 | 80.7 | 43.5 | 15.8 VD-364K 38 48.6 66.641 1.4310 1027.386 33.18 15.42 46.3 | 81.5 | 41.9 | 15.6 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring VD-339J-20 Country of origin: DE, German; Compression spring VD-339J-20 Product image - Compression springs VD-339J-20 QR-Code: Compression spring VD-339J-20
