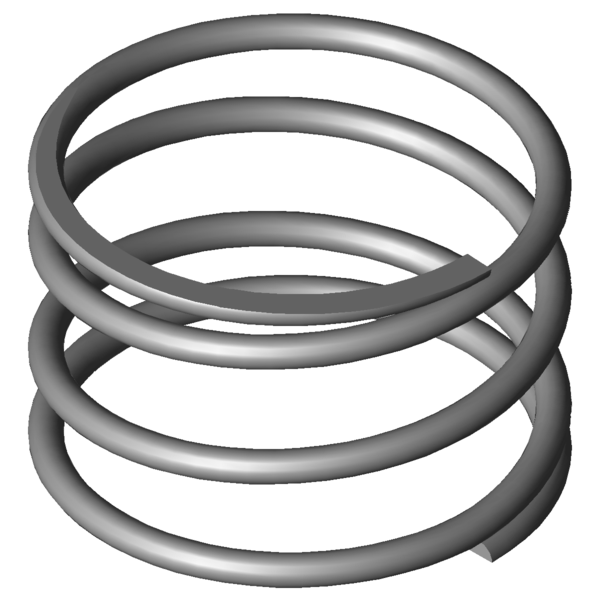

Home » Products » Compression springs » vd-339j-09 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339J-09 Stainless steel Ø 4.5 x 63.5 x 45 mm Scaled prices - Compression spring VD-339J-09 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-339J-09 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339J-09 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 63.5 mm Mean coil diameter De 68 mm Outer coil diameter Dd 57.1 mm maximum diameter of mandrel Dh 70.7 mm minimum diameter of bush L0 45 mm unstressed spring length Lk mm buckling length Fn 164.037 N maximum force in static use Ln 21.59 mm Minimum length in static use sn 23.41 mm Maximum spring deflection in static use Fndyn 150.782 N maximum force in dynamic use Lndyn 23.48 mm Minimum length in dynamic use shdyn 21.52 mm Maximum stroke in dynamic use S 0.143 mm pitch of spring n 2 pc. number of active coils nt pc. total number of coils R 7.007 N/mm Spring rate Weight 100.318 g weight of one spring Fntol 31.4 N (+/-) tolerance of maximum force in static use Fndtol 30.11 N (+/-) tolerance of maximum dynamic force Detol 1.4 mm (+/-) tolerances of outer coil diameter L0tol 2 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339J-09 Stainless steel Ø 4.5 x 63.5 x 45 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339J-09 Stainless steel Ø 4.5 x 63.5 x 45 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339J-09 Stainless steel Ø 4.5 x 63.5 x 45 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339J-09 Stainless steel Ø 4.5 x 63.5 x 45 mm force-path-calculation Compression spring VD-339J-09 Inquiry formular Compression spring VD-339J-09 Stainless steel Ø 4.5 x 63.5 x 45 mm Inquiry formular Compression spring VD-339J-09 Similar compression springs to Compression spring VD-339J-09 Stainless steel Ø 4.5 x 63.5 x 45 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339J-09 1.4310 4.5 68 45 164.037 21.59 23.41 2 7.007 100.0 | 100.0 | 100.0 | 100.0 D-339J-09 EN 10270-1 4.5 68 45 190.986 21.59 23.41 2 8.158 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263D-12 42 45 0.433 1.4310 6.221 30.65 14.35 36.3 | 70.2 | 32.5 | 6.2 VD-268B 31 45 4.219 1.4310 120.943 16.33 28.67 68.3 | 67.0 | 77.7 | 60.2 VD-289C-06 48 48 4.535 1.4310 143.129 16.44 31.56 74.6 | 78.5 | 80.7 | 64.7 VD-263Z-10 34.5 44 4.636 1.4310 145.568 12.6 31.4 71.9 | 68.0 | 81.6 | 66.2 VD-339J-09 68 45 7.007 1.4310 164.037 21.59 23.41 100.0 | 100.0 | 100.0 | 100.0 VD-288Z-20 33 48.3 7.5 1.4310 218.813 19.13 29.18 80.2 | 69.5 | 77.6 | 93.4 VD-364R-30 69 56 9.648 1.4310 187.857 36.53 19.47 81.4 | 86.4 | 85.2 | 72.6 VD-298B 33 43 9.906 1.4310 226.081 20.18 22.82 75.8 | 71.7 | 85.0 | 70.7 VD-339J-20 58 50 10.414 1.4310 288.466 22.3 27.7 76.6 | 91.8 | 70.7 | 67.3 VD-364E-08 70 65 13.262 1.4310 501.29 27.2 37.8 61.0 | 82.7 | 47.3 | 52.8 VD-364R-41 54 59.4 13.799 1.4310 149.985 48.53 10.87 66.1 | 78.5 | 68.9 | 50.8 VD-349A-02 50 50 18.466 1.4310 379.471 29.45 20.55 62.7 | 84.5 | 65.5 | 37.9 VD-324A 36 41 19.531 1.4310 317.5 24.74 16.26 58.0 | 77.6 | 60.6 | 35.9 VD-339N-03 41 52 21.082 1.4310 508.076 27.9 24.1 60.1 | 82.3 | 64.7 | 33.2 VD-364R-40 54 38 21.685 1.4310 66.005 34.96 3.04 46.8 | 81.4 | 26.6 | 32.3 VD-364J-01 56 53 27.631 1.4310 740.52 26.2 26.8 54.4 | 83.0 | 54.8 | 25.4 VD-364J-20 48 45 46.356 1.4310 892.36 25.75 19.25 49.9 | 84.1 | 50.3 | 15.1 VD-354B 37 43 47.684 1.4310 604.382 30.33 12.67 45.1 | 80.0 | 40.6 | 14.7 VD-355 37 51 47.684 1.4310 985.851 30.33 20.67 48.2 | 77.5 | 52.5 | 14.7 VD-364R-80 46 42 50.625 1.4310 278.438 36.5 5.5 44.6 | 78.7 | 41.2 | 13.8 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-339J-09 Country of origin: DE, German; Compression spring VD-339J-09 Product image - Compression springs VD-339J-09 QR-Code: Compression spring VD-339J-09
