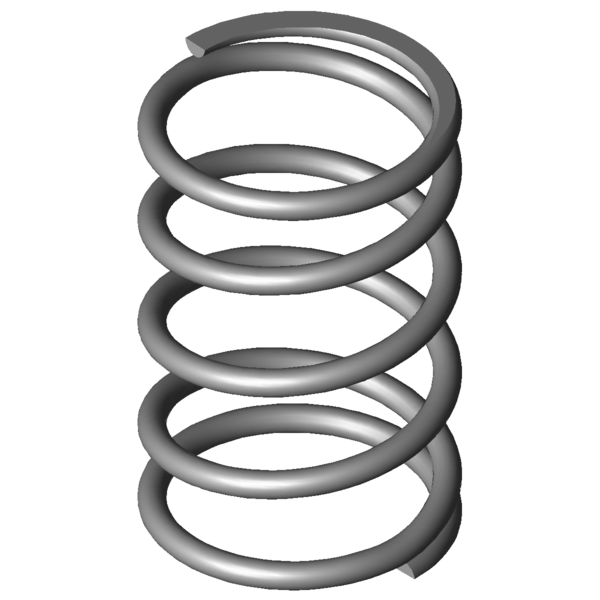

Home » Products » Compression springs » vd-313f Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313F Stainless steel Ø 3.6 x 36.4 x 61.7 mm Scaled prices - Compression spring VD-313F Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.8670 EUR 175 1.8647 EUR 250 1.8186 EUR 350 1.7923 EUR Compression spring Buy Product image Compression spring VD-313F Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313F Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.6 mm Wire diameter Di mm Inner coil diameter D 36.4 mm Mean coil diameter De 40 mm Outer coil diameter Dd 31.8 mm maximum diameter of mandrel Dh 41.6 mm minimum diameter of bush L0 61.7 mm unstressed spring length Lk mm buckling length Fn 337.011 N maximum force in static use Ln 22.99 mm Minimum length in static use sn 38.71 mm Maximum spring deflection in static use Fndyn 323.1 N maximum force in dynamic use Lndyn 24.59 mm Minimum length in dynamic use shdyn 9.14 mm Maximum stroke in dynamic use S 16.6 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 8.707 N/mm Spring rate Weight 50.6045 g weight of one spring Fntol 23.23 N (+/-) tolerance of maximum force in static use Fndtol 22.99 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 1.71 mm (+/-) tolerance of unstressed spring length Price group AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313F Stainless steel Ø 3.6 x 36.4 x 61.7 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313F Stainless steel Ø 3.6 x 36.4 x 61.7 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313F Stainless steel Ø 3.6 x 36.4 x 61.7 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313F Stainless steel Ø 3.6 x 36.4 x 61.7 mm force-path-calculation Compression spring VD-313F Inquiry formular Compression spring VD-313F Stainless steel Ø 3.6 x 36.4 x 61.7 mm Inquiry formular Compression spring VD-313F Similar compression springs to Compression spring VD-313F Stainless steel Ø 3.6 x 36.4 x 61.7 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313F 1.4310 3.6 40 61.7 337.011 22.99 38.71 3.5 8.707 100.0 | 100.0 | 100.0 | 100.0 D-313F EN 10270-1 3.6 40 61.7 392.377 22.99 38.71 3.5 10.137 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263VH 46 60 1.846 1.4310 85.355 13.75 46.25 53.4 | 84.5 | 54.5 | 21.2 VD-288Z-11 37 57.4 5.152 1.4310 194.89 19.57 37.83 75.5 | 89.6 | 77.8 | 59.2 VD-298C 33 64 6.304 1.4310 226.622 28.05 35.95 80.6 | 89.3 | 80.1 | 72.4 VD-294 35.2 58.5 8 1.4310 304.8 20.4 38.1 92.3 | 90.6 | 94.4 | 91.9 VD-313F 40 61.7 8.707 1.4310 337.011 22.99 38.71 100.0 | 100.0 | 100.0 | 100.0 VD-319 44 71 10 1.4310 455 25.5 45.5 85.3 | 89.3 | 79.6 | 87.1 VD-313J-03 31.6 62.7 10.3 1.4310 284.653 35.06 27.64 85.0 | 92.5 | 77.9 | 84.5 VD-325A 36 61 12.429 1.4310 331.705 34.31 26.69 82.2 | 93.0 | 83.7 | 70.1 VD-325 36 53.5 19.531 1.4310 561.641 24.74 28.76 66.9 | 88.9 | 67.2 | 44.6 VD-339N-03 41 52 21.082 1.4310 508.076 27.9 24.1 64.3 | 87.3 | 64.3 | 41.3 VD-350 45 64 24.414 1.4310 807.373 30.93 33.07 61.7 | 85.8 | 63.6 | 35.7 VD-364J-21 48 63 29.801 1.4310 865.705 33.95 29.05 56.1 | 82.2 | 57.0 | 29.2 VD-355A 37 63 30.344 1.4310 639.061 41.94 21.06 56.6 | 87.5 | 53.6 | 28.7 VD-339P 32 60.4 31.369 1.4310 714.848 37.61 22.79 55.6 | 86.0 | 53.0 | 27.8 VD-364R-81 46 66 32.216 1.4310 499.347 50.5 15.5 53.6 | 80.1 | 53.8 | 27.0 VD-364J-09 42 70 36.59 1.4310 1101.372 39.9 30.1 53.6 | 82.9 | 54.2 | 23.8 VD-359A-02 34 68 37.372 1.4310 877.719 44.51 23.49 51.8 | 82.6 | 49.5 | 23.3 VD-364L 38 70 42.408 1.4310 1023.751 45.86 24.14 50.3 | 82.9 | 47.6 | 20.5 VD-355 37 51 47.684 1.4310 985.851 30.33 20.67 48.1 | 82.4 | 43.8 | 18.3 VD-364R-91 39 68 57.373 1.4310 1044.342 49.8 18.2 45.9 | 82.7 | 39.6 | 15.2 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-313F Country of origin: DE, German; Compression spring VD-313F Product image - Compression springs VD-313F QR-Code: Compression spring VD-313F
