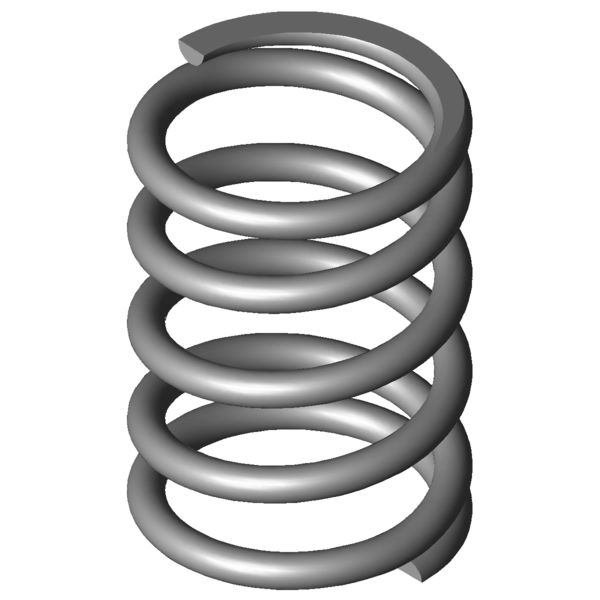

Home » Products » Compression springs » vd-350 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-350 Stainless steel Ø 5 x 40 x 64 mm Scaled prices - Compression spring VD-350 Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0700 EUR 175 2.0700 EUR 250 2.0700 EUR 350 2.0700 EUR Compression spring Buy Product image Compression spring VD-350 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-350 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 40 mm Mean coil diameter De 45 mm Outer coil diameter Dd 34 mm maximum diameter of mandrel Dh 46.5 mm minimum diameter of bush L0 64 mm unstressed spring length Lk mm buckling length Fn 807.373 N maximum force in static use Ln 30.93 mm Minimum length in static use sn 33.07 mm Maximum spring deflection in static use Fndyn 759.277 N maximum force in dynamic use Lndyn 32.9 mm Minimum length in dynamic use shdyn 5.6 mm Maximum stroke in dynamic use S 16.857 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 24.414 N/mm Spring rate Weight 107.2711 g weight of one spring Fntol 53.19 N (+/-) tolerance of maximum force in static use Fndtol 52.46 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.38 mm (+/-) tolerance of unstressed spring length Price group #AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-350 Stainless steel Ø 5 x 40 x 64 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-350 Stainless steel Ø 5 x 40 x 64 mm Metal spring characteristic download pdf file CAD data Compression spring VD-350 Stainless steel Ø 5 x 40 x 64 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-350 Stainless steel Ø 5 x 40 x 64 mm force-path-calculation Compression spring VD-350 Inquiry formular Compression spring VD-350 Stainless steel Ø 5 x 40 x 64 mm Inquiry formular Compression spring VD-350 Similar compression springs to Compression spring VD-350 Stainless steel Ø 5 x 40 x 64 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-350 1.4310 5 45 64 807.373 30.93 33.07 3.5 24.414 100.0 | 100.0 | 100.0 | 100.0 D-350 EN 10270-1 5 45 64 940.013 30.93 33.07 3.5 28.425 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263D-13 42 75 0.26 1.4310 6.984 48.15 26.85 38.8 | 74.2 | 41.0 | 1.1 VD-263VH 46 60 1.846 1.4310 85.355 13.75 46.25 43.0 | 80.5 | 41.0 | 7.6 VD-289C-01 48 76 2.915 1.4310 157.397 22.01 53.99 44.3 | 80.7 | 40.4 | 11.9 VD-298C 33 64 6.304 1.4310 226.622 28.05 35.95 100.0 | 100.0 | 100.0 | 100.0 VD-318B 49 68 7.023 1.4310 294.573 26.06 41.94 58.4 | 88.7 | 57.7 | 28.8 VD-313F 40 61.7 8.707 1.4310 337.011 22.99 38.71 61.7 | 85.8 | 63.6 | 35.7 VD-319 44 71 10 1.4310 455 25.5 45.5 64.9 | 89.3 | 64.5 | 41.0 VD-339K 50 74.4 10.883 1.4310 496.923 28.74 45.66 66.7 | 88.7 | 67.0 | 44.6 VD-349A-04 50 70 10.912 1.4310 295.704 42.9 27.1 65.9 | 93.8 | 59.3 | 44.7 VD-325A 36 61 12.429 1.4310 331.705 34.31 26.69 70.3 | 89.0 | 71.3 | 50.7 VD-344B 55 66 12.5 1.4310 426.563 31.88 34.13 73.0 | 92.9 | 74.9 | 51.2 VD-364R-41 54 59.4 13.799 1.4310 149.985 48.53 10.87 56.9 | 88.5 | 25.7 | 56.5 VD-350A 45 80 15.536 1.4310 576.549 42.89 37.11 79.1 | 93.3 | 80.3 | 63.6 VD-350 45 64 24.414 1.4310 807.373 30.93 33.07 100.0 | 100.0 | 100.0 | 100.0 VD-364J-21 48 63 29.801 1.4310 865.705 33.95 29.05 88.9 | 94.4 | 90.6 | 81.9 VD-355A 37 63 30.344 1.4310 639.061 41.94 21.06 50.6 | 83.9 | 47.0 | 20.8 VD-374B 56.3 64 31.506 1.4310 789.591 38.94 25.06 83.6 | 86.4 | 86.8 | 77.5 VD-364R-81 46 66 32.216 1.4310 499.347 50.5 15.5 74.3 | 92.7 | 54.4 | 75.8 VD-364J-09 42 70 36.59 1.4310 1101.372 39.9 30.1 80.3 | 91.9 | 82.2 | 66.7 VD-380A 46.3 68 39.159 1.4310 594.81 52.81 15.19 70.8 | 90.2 | 59.8 | 62.3 VD-364L 38 70 42.408 1.4310 1023.751 45.86 24.14 74.1 | 88.9 | 75.9 | 57.6 VD-364R-91 39 68 57.373 1.4310 1044.342 49.8 18.2 65.6 | 88.0 | 66.2 | 42.5 VD-380 46.3 60 61.535 1.4310 1342.181 38.19 21.81 64.3 | 90.1 | 63.1 | 39.7 VD-364R-03 39 64 63.667 1.4310 1532.695 39.93 24.07 43.6 | 79.9 | 40.9 | 9.9 VD-389K 50 62.3 75.496 1.4310 1507.155 42.34 19.96 58.5 | 86.3 | 57.0 | 32.3 VD-389N-01 46 68 88.541 1.4310 1938.728 46.1 21.9 56.4 | 87.8 | 53.9 | 27.6 VD-389A-03 39 64 139.53 1.4310 2483.639 46.2 17.8 49.3 | 87.1 | 43.2 | 17.5 VD-410 48 65 160 1.4310 2744 47.85 17.15 46.9 | 84.9 | 40.6 | 15.3 VD-414AB 42 76 165.794 1.4310 1725.562 65.59 10.41 44.6 | 80.0 | 39.1 | 14.7 Number of similar metal springs: 28 Customs tariff number: 73202081; Compression spring VD-350 Country of origin: DE, German; Compression spring VD-350 Product image - Compression springs VD-350 QR-Code: Compression spring VD-350
