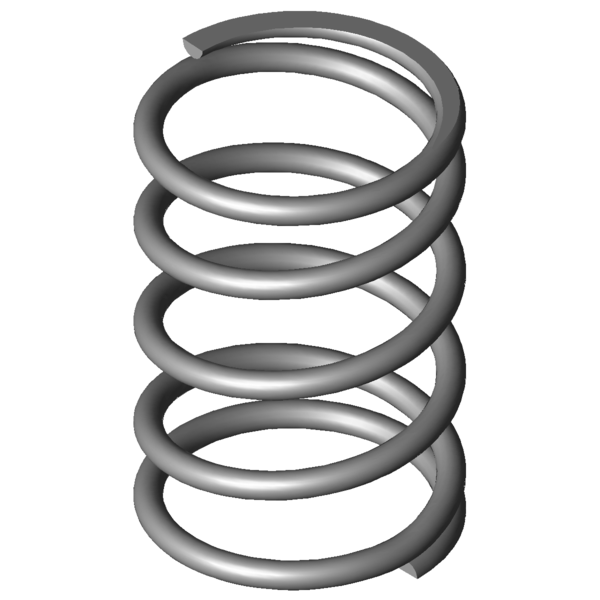

Home » Products » Compression springs » vd-339k Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339K Stainless steel Ø 4.5 x 45.5 x 74.4 mm Scaled prices - Compression spring VD-339K Quantity Single price [EUR] 1 15.4300 EUR 2 12.3000 EUR 3 8.1000 EUR 7 6.2800 EUR 17 4.6900 EUR 37 4.0400 EUR 75 3.9700 EUR 125 3.9700 EUR 175 3.9700 EUR 250 3.9700 EUR 350 3.9700 EUR Compression spring Buy Product image Compression spring VD-339K Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339K Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 45.5 mm Mean coil diameter De 50 mm Outer coil diameter Dd 39.7 mm maximum diameter of mandrel Dh 52 mm minimum diameter of bush L0 74.4 mm unstressed spring length Lk mm buckling length Fn 496.923 N maximum force in static use Ln 28.74 mm Minimum length in static use sn 45.66 mm Maximum spring deflection in static use Fndyn 475.16 N maximum force in dynamic use Lndyn 30.74 mm Minimum length in dynamic use shdyn 9.65 mm Maximum stroke in dynamic use S 19.971 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 10.883 N/mm Spring rate Weight 98.8369 g weight of one spring Fntol 34.03 N (+/-) tolerance of maximum force in static use Fndtol 33.65 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 2 mm (+/-) tolerance of unstressed spring length Price group #AO - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339K Stainless steel Ø 4.5 x 45.5 x 74.4 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339K Stainless steel Ø 4.5 x 45.5 x 74.4 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339K Stainless steel Ø 4.5 x 45.5 x 74.4 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339K Stainless steel Ø 4.5 x 45.5 x 74.4 mm force-path-calculation Compression spring VD-339K Inquiry formular Compression spring VD-339K Stainless steel Ø 4.5 x 45.5 x 74.4 mm Inquiry formular Compression spring VD-339K Similar compression springs to Compression spring VD-339K Stainless steel Ø 4.5 x 45.5 x 74.4 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339K 1.4310 4.5 50 74.4 496.923 28.74 45.66 3.5 10.883 51.9 | 82.6 | 50.3 | 22.7 D-339K EN 10270-1 4.5 50 74.4 578.56 28.74 45.66 3.5 12.671 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263D-13 42 75 0.26 1.4310 6.984 48.15 26.85 36.6 | 77.4 | 30.1 | 2.4 VD-288X-20 48 88 2.222 1.4310 148.681 21.09 66.91 50.6 | 82.4 | 49.1 | 20.4 VD-289C-01 48 76 2.915 1.4310 157.397 22.01 53.99 52.6 | 84.7 | 51.3 | 21.7 VD-289D 43.2 82 4.096 1.4310 248.443 21.35 60.66 57.8 | 87.0 | 56.0 | 30.5 VD-313E-10 48 80 4.198 1.4310 225.308 26.33 53.67 59.0 | 87.6 | 58.0 | 31.3 VD-339J-21 58 78 6.695 1.4310 323.352 29.7 48.3 78.4 | 93.9 | 79.8 | 61.5 VD-318B 49 68 7.023 1.4310 294.573 26.06 41.94 77.6 | 92.8 | 75.6 | 64.5 VD-319 44 71 10 1.4310 455 25.5 45.5 84.0 | 91.0 | 86.3 | 74.5 VD-339K 50 74.4 10.883 1.4310 496.923 28.74 45.66 51.9 | 82.6 | 50.3 | 22.7 VD-349A-04 50 70 10.912 1.4310 295.704 42.9 27.1 53.5 | 83.4 | 54.6 | 22.7 VD-344B 55 66 12.5 1.4310 426.563 31.88 34.13 85.7 | 89.9 | 80.3 | 87.1 VD-339N-04 41 78 13.416 1.4310 527.241 38.7 39.3 100.0 | 100.0 | 100.0 | 100.0 VD-350A 45 80 15.536 1.4310 576.549 42.89 37.11 59.0 | 83.8 | 60.7 | 32.3 VD-364J-02 56 77 17.763 1.4310 752.264 34.65 42.35 76.6 | 89.2 | 79.4 | 61.3 VD-350 45 64 24.414 1.4310 807.373 30.93 33.07 66.7 | 88.7 | 67.0 | 44.6 VD-364J-21 48 63 29.801 1.4310 865.705 33.95 29.05 61.5 | 87.5 | 60.5 | 36.5 VD-375 56.3 80 31.506 1.4310 1293.686 38.94 41.06 61.0 | 84.4 | 64.2 | 34.5 VD-364R-81 46 66 32.216 1.4310 499.347 50.5 15.5 61.9 | 85.2 | 66.7 | 33.8 VD-364J-09 42 70 36.59 1.4310 1101.372 39.9 30.1 62.9 | 89.7 | 62.2 | 36.7 VD-380A 46.3 68 39.159 1.4310 594.81 52.81 15.19 57.1 | 85.1 | 58.4 | 27.8 VD-389L 50 89 48.043 1.4310 1463.917 58.53 30.47 100.0 | 100.0 | 100.0 | 100.0 VD-364R-04 39 76 51.54 1.4310 1515.717 46.59 29.41 57.0 | 90.0 | 54.8 | 26.0 VD-389K 50 62.3 75.496 1.4310 1507.155 42.34 19.96 45.1 | 82.7 | 38.3 | 14.4 VD-405 58 75 81.92 1.4310 2175.744 48.44 26.56 44.8 | 80.6 | 40.5 | 13.3 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-339K Country of origin: DE, German; Compression spring VD-339K Product image - Compression springs VD-339K QR-Code: Compression spring VD-339K
