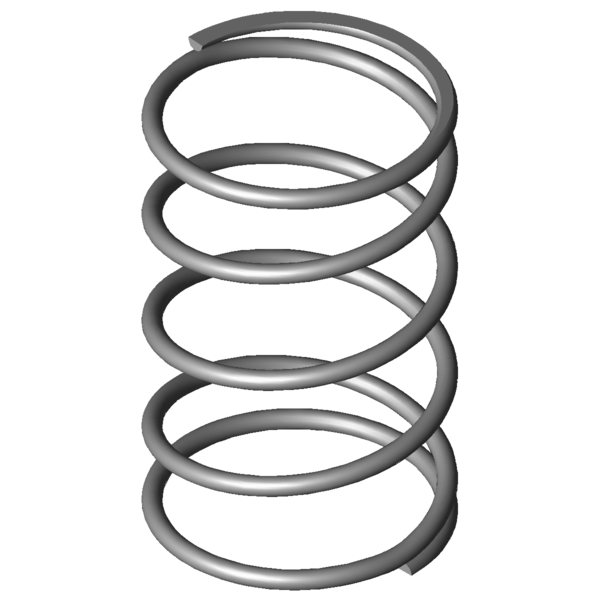

Home » Products » Compression springs » vd-289c-01 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-289C-01 Stainless steel Ø 3.2 x 44.8 x 76 mm Scaled prices - Compression spring VD-289C-01 Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-289C-01 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-289C-01 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 44.8 mm Mean coil diameter De 48 mm Outer coil diameter Dd 40.4 mm maximum diameter of mandrel Dh 50 mm minimum diameter of bush L0 76 mm unstressed spring length Lk mm buckling length Fn 157.397 N maximum force in static use Ln 22.01 mm Minimum length in static use sn 53.99 mm Maximum spring deflection in static use Fndyn 150.962 N maximum force in dynamic use Lndyn 24.22 mm Minimum length in dynamic use shdyn 26.09 mm Maximum stroke in dynamic use S 20.8 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 2.915 N/mm Spring rate Weight 49.2108 g weight of one spring Fntol 15.13 N (+/-) tolerance of maximum force in static use Fndtol 15.02 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 3.65 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-289C-01 Stainless steel Ø 3.2 x 44.8 x 76 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-289C-01 Stainless steel Ø 3.2 x 44.8 x 76 mm Metal spring characteristic download pdf file CAD data Compression spring VD-289C-01 Stainless steel Ø 3.2 x 44.8 x 76 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-289C-01 Stainless steel Ø 3.2 x 44.8 x 76 mm force-path-calculation Compression spring VD-289C-01 Inquiry formular Compression spring VD-289C-01 Stainless steel Ø 3.2 x 44.8 x 76 mm Inquiry formular Compression spring VD-289C-01 Similar compression springs to Compression spring VD-289C-01 Stainless steel Ø 3.2 x 44.8 x 76 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-289C-01 1.4310 3.2 48 76 157.397 22.01 53.99 3.5 2.915 100.0 | 100.0 | 100.0 | 100.0 D-289C-01 EN 10270-1 3.2 48 76 183.255 22.01 53.99 3.5 3.394 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263D-13 42 75 0.26 1.4310 6.984 48.15 26.85 40.3 | 85.0 | 27.1 | 8.9 VD-263V-19 46 87 1.186 1.4310 81.151 18.6 68.4 64.3 | 87.1 | 65.2 | 40.7 VD-288X-20 48 88 2.222 1.4310 148.681 21.09 66.91 85.7 | 93.4 | 87.6 | 76.2 VD-289C-01 48 76 2.915 1.4310 157.397 22.01 53.99 100.0 | 100.0 | 100.0 | 100.0 VD-289D 43.2 82 4.096 1.4310 248.443 21.35 60.66 80.5 | 94.2 | 76.2 | 71.2 VD-313E-10 48 80 4.198 1.4310 225.308 26.33 53.67 82.9 | 94.6 | 84.6 | 69.4 VD-318B 49 68 7.023 1.4310 294.573 26.06 41.94 65.4 | 89.1 | 65.6 | 41.5 VD-319 44 71 10 1.4310 455 25.5 45.5 59.0 | 88.4 | 59.4 | 29.2 VD-339K 50 74.4 10.883 1.4310 496.923 28.74 45.66 57.7 | 88.3 | 58.1 | 26.8 VD-349A-04 50 70 10.912 1.4310 295.704 42.9 27.1 54.2 | 84.0 | 51.7 | 26.7 VD-339N-04 41 78 13.416 1.4310 527.241 38.7 39.3 52.6 | 84.7 | 51.3 | 21.7 VD-350A 45 80 15.536 1.4310 576.549 42.89 37.11 50.3 | 84.3 | 48.0 | 18.8 VD-364J-02 56 77 17.763 1.4310 752.264 34.65 42.35 49.0 | 80.9 | 49.7 | 16.4 VD-364J-22 48 92 18.964 1.4310 853.379 47 45 48.8 | 80.3 | 50.9 | 15.4 VD-350 45 64 24.414 1.4310 807.373 30.93 33.07 44.3 | 80.7 | 40.4 | 11.9 VD-364J-21 48 63 29.801 1.4310 865.705 33.95 29.05 42.0 | 80.4 | 36.0 | 9.8 VD-364R-81 46 66 32.216 1.4310 499.347 50.5 15.5 39.3 | 78.7 | 30.1 | 9.0 VD-364J-09 42 70 36.59 1.4310 1101.372 39.9 30.1 40.8 | 79.3 | 35.0 | 8.0 VD-380A 46.3 68 39.159 1.4310 594.81 52.81 15.19 37.9 | 78.9 | 27.3 | 7.4 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-289C-01 Country of origin: DE, German; Compression spring VD-289C-01 Product image - Compression springs VD-289C-01 QR-Code: Compression spring VD-289C-01
