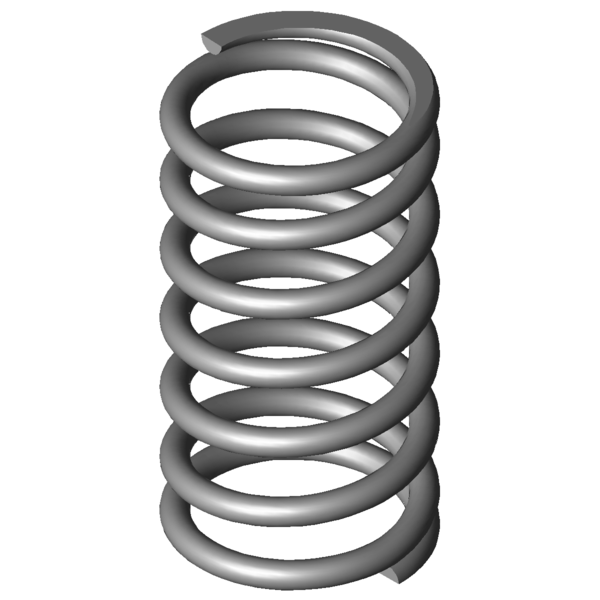

Home » Products » Compression springs » vd-339n-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339N-04 Stainless steel Ø 4.5 x 36.5 x 78 mm Scaled prices - Compression spring VD-339N-04 Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2400 EUR 175 3.2400 EUR 250 3.2400 EUR 350 3.2400 EUR Compression spring Buy Product image Compression spring VD-339N-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339N-04 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 36.5 mm Mean coil diameter De 41 mm Outer coil diameter Dd 31.2 mm maximum diameter of mandrel Dh 41.9 mm minimum diameter of bush L0 78 mm unstressed spring length Lk mm buckling length Fn 527.241 N maximum force in static use Ln 38.7 mm Minimum length in static use sn 39.3 mm Maximum spring deflection in static use Fndyn 493.702 N maximum force in dynamic use Lndyn 41.2 mm Minimum length in dynamic use shdyn 13 mm Maximum stroke in dynamic use S 13.364 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 13.416 N/mm Spring rate Weight 108.1183 g weight of one spring Fntol 36.06 N (+/-) tolerance of maximum force in static use Fndtol 35.6 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 2.1 mm (+/-) tolerance of unstressed spring length Price group #AL - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339N-04 Stainless steel Ø 4.5 x 36.5 x 78 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339N-04 Stainless steel Ø 4.5 x 36.5 x 78 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339N-04 Stainless steel Ø 4.5 x 36.5 x 78 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339N-04 Stainless steel Ø 4.5 x 36.5 x 78 mm force-path-calculation Compression spring VD-339N-04 Inquiry formular Compression spring VD-339N-04 Stainless steel Ø 4.5 x 36.5 x 78 mm Inquiry formular Compression spring VD-339N-04 Similar compression springs to Compression spring VD-339N-04 Stainless steel Ø 4.5 x 36.5 x 78 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339N-04 1.4310 4.5 41 78 527.241 38.7 39.3 5.5 13.416 100.0 | 100.0 | 100.0 | 100.0 D-339N-04 EN 10270-1 4.5 41 78 614.328 38.67 39.33 5.5 15.62 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JA 35.5 74.5 0.322 1.4310 19.861 12.82 61.68 36.0 | 71.8 | 33.7 | 2.4 VD-234G 34 78.1 1.221 1.4310 77.773 14.39 63.71 41.0 | 75.7 | 38.2 | 9.1 VD-263E 38 86.6 1.276 1.4310 90.204 15.93 70.67 41.0 | 77.2 | 36.4 | 9.5 VD-288Y 41 92 1.435 1.4310 71.474 42.2 49.8 46.9 | 83.8 | 46.2 | 10.7 VD-263W 42 91.7 1.585 1.4310 116.938 17.9 73.8 43.0 | 79.4 | 37.7 | 11.8 VD-289C-01 48 76 2.915 1.4310 157.397 22.01 53.99 52.6 | 84.7 | 51.3 | 21.7 VD-288Z-12 37 87.1 3.279 1.4310 195.968 27.33 59.77 52.7 | 82.2 | 51.5 | 24.4 VD-289D 43.2 82 4.096 1.4310 248.443 21.35 60.66 57.8 | 87.0 | 56.0 | 30.5 VD-313E-10 48 80 4.198 1.4310 225.308 26.33 53.67 59.0 | 87.6 | 58.0 | 31.3 VD-313G 40 92.8 5.541 1.4310 336.773 32.02 60.78 64.3 | 87.2 | 64.3 | 41.3 VD-313F 40 61.7 8.707 1.4310 337.011 22.99 38.71 77.2 | 85.6 | 81.2 | 64.9 VD-319 44 71 10 1.4310 455 25.5 45.5 84.0 | 91.0 | 86.3 | 74.5 VD-329B 35 76 10.741 1.4310 372.487 41.32 34.68 83.4 | 90.6 | 79.4 | 80.1 VD-326 36 79.5 12.429 1.4310 561.641 34.31 45.19 91.6 | 91.6 | 90.4 | 92.6 VD-339N-04 41 78 13.416 1.4310 527.241 38.7 39.3 100.0 | 100.0 | 100.0 | 100.0 VD-350A 45 80 15.536 1.4310 576.549 42.89 37.11 90.7 | 92.9 | 92.9 | 86.4 VD-356 37 75 30.344 1.4310 1003.191 41.94 33.06 68.2 | 92.1 | 68.3 | 44.2 VD-364J-09 42 70 36.59 1.4310 1101.372 39.9 30.1 62.9 | 89.7 | 62.2 | 36.7 VD-364L 38 70 42.408 1.4310 1023.751 45.86 24.14 58.7 | 88.1 | 56.5 | 31.6 VD-364R-05 39 89 45.098 1.4310 1628.027 52.9 36.1 59.6 | 86.8 | 62.1 | 29.7 VD-364R-04 39 76 51.54 1.4310 1515.717 46.59 29.41 57.0 | 90.0 | 54.8 | 26.0 VD-386A 38.3 85 56.087 1.4310 1043.01 66.4 18.6 52.8 | 85.5 | 48.9 | 23.9 VD-364R-91 39 68 57.373 1.4310 1044.342 49.8 18.2 52.5 | 85.8 | 48.4 | 23.4 VD-364R-03 39 64 63.667 1.4310 1532.695 39.93 24.07 51.3 | 84.9 | 47.8 | 21.1 VD-389A-20 37.8 85 67.846 1.4310 1751.745 59.18 25.82 50.9 | 85.1 | 47.9 | 19.8 VD-389A-05 39 89 69.765 1.4310 1295.762 70.43 18.57 48.8 | 83.3 | 44.0 | 19.2 VD-386 38.3 75 76.482 1.4310 1754.8 52.06 22.94 49.6 | 87.0 | 44.2 | 17.5 VD-389A-04 39 76 95.134 1.4310 1976.924 55.22 20.78 46.8 | 86.6 | 39.8 | 14.1 VD-389A-03 39 64 139.53 1.4310 2483.639 46.2 17.8 41.4 | 81.4 | 33.3 | 9.6 VD-414AB 42 76 165.794 1.4310 1725.562 65.59 10.41 40.1 | 83.8 | 28.5 | 8.1 Number of similar metal springs: 29 Customs tariff number: 73202081; Compression spring VD-339N-04 Country of origin: DE, German; Compression spring VD-339N-04 Product image - Compression springs VD-339N-04 QR-Code: Compression spring VD-339N-04
