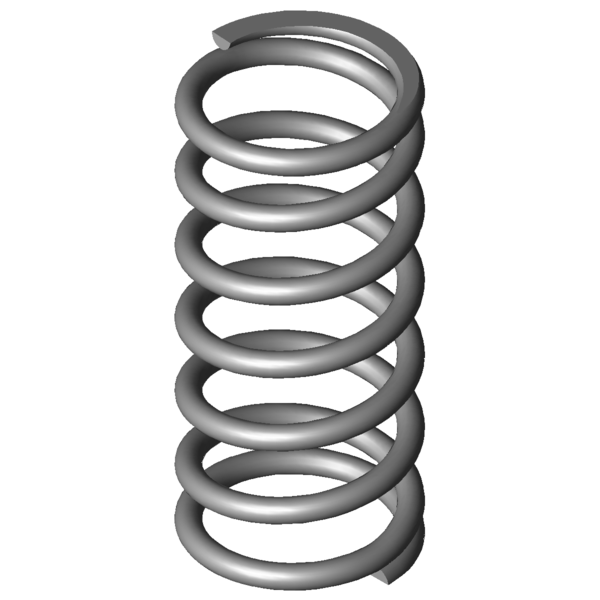

Home » Products » Compression springs » vd-326 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-326 Stainless steel Ø 4 x 32 x 79.5 mm Scaled prices - Compression spring VD-326 Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.9100 EUR 175 1.9100 EUR 250 1.9100 EUR 350 1.9100 EUR Compression spring Buy Product image Compression spring VD-326 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-326 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 36 mm Outer coil diameter Dd 27.1 mm maximum diameter of mandrel Dh 37.1 mm minimum diameter of bush L0 79.5 mm unstressed spring length Lk mm buckling length Fn 561.641 N maximum force in static use Ln 34.31 mm Minimum length in static use sn 45.19 mm Maximum spring deflection in static use Fndyn 502.379 N maximum force in dynamic use Lndyn 39.08 mm Minimum length in dynamic use shdyn 7.35 mm Maximum stroke in dynamic use S 13.727 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 12.429 N/mm Spring rate Weight 74.8948 g weight of one spring Fntol 33.3 N (+/-) tolerance of maximum force in static use Fndtol 32.83 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.62 mm (+/-) tolerance of unstressed spring length Price group #AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-326 Stainless steel Ø 4 x 32 x 79.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-326 Stainless steel Ø 4 x 32 x 79.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-326 Stainless steel Ø 4 x 32 x 79.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-326 Stainless steel Ø 4 x 32 x 79.5 mm force-path-calculation Compression spring VD-326 Inquiry formular Compression spring VD-326 Stainless steel Ø 4 x 32 x 79.5 mm Inquiry formular Compression spring VD-326 Similar compression springs to Compression spring VD-326 Stainless steel Ø 4 x 32 x 79.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-326 1.4310 4 36 79.5 561.641 34.31 45.19 5.5 12.429 100.0 | 100.0 | 100.0 | 100.0 D-326 EN 10270-1 4 36 79.5 653.91 34.31 45.19 5.5 14.471 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JA 35.5 74.5 0.322 1.4310 19.861 12.82 61.68 39.2 | 76.6 | 38.4 | 2.6 VD-207JF 34 69.1 0.369 1.4310 20.878 12.47 56.63 39.2 | 73.0 | 41.8 | 3.0 VD-234M 30 76 1.16 1.4310 65.707 19.33 56.67 43.8 | 76.3 | 45.7 | 9.3 VD-234G 34 78.1 1.221 1.4310 77.773 14.39 63.71 44.4 | 80.9 | 42.4 | 9.8 VD-263E 38 86.6 1.276 1.4310 90.204 15.93 70.67 43.6 | 80.5 | 40.0 | 10.3 VD-264B 34.5 71.5 1.897 1.4310 91.025 23.5 48 51.1 | 82.8 | 55.2 | 15.3 VD-264 34.5 71.5 2.98 1.4310 159.442 18 53.5 54.4 | 82.8 | 56.4 | 24.0 VD-288Z-12 37 87.1 3.279 1.4310 195.968 27.33 59.77 56.5 | 87.9 | 55.2 | 26.4 VD-288Z-21 33 72.5 4.773 1.4310 218.949 26.63 45.88 64.4 | 86.0 | 68.7 | 38.4 VD-295 35.2 88.5 5.091 1.4310 305.964 28.4 60.1 65.0 | 89.2 | 64.8 | 41.0 VD-300A 28.2 79.4 6.181 1.4310 227.32 42.62 36.78 65.6 | 86.1 | 60.9 | 49.7 VD-326A 36 92 8.042 1.4310 348.52 48.66 43.34 79.7 | 95.5 | 79.0 | 64.7 VD-313J-04 31.6 72.2 8.927 1.4310 293.237 39.35 32.85 74.6 | 89.5 | 62.5 | 71.8 VD-329B 35 76 10.741 1.4310 372.487 41.32 34.68 85.2 | 97.6 | 71.5 | 86.4 VD-326 36 79.5 12.429 1.4310 561.641 34.31 45.19 100.0 | 100.0 | 100.0 | 100.0 VD-339N-04 41 78 13.416 1.4310 527.241 38.7 39.3 91.6 | 91.6 | 90.4 | 92.6 VD-356A 37 94 19.634 1.4310 680.115 59.36 34.64 76.7 | 87.3 | 79.6 | 63.3 VD-359A-03 34 88 28.029 1.4310 896.405 56.02 31.98 66.4 | 88.3 | 66.7 | 44.3 VD-356 37 75 30.344 1.4310 1003.191 41.94 33.06 65.4 | 90.5 | 64.6 | 41.0 VD-359A-02 34 68 37.372 1.4310 877.719 44.51 23.49 59.3 | 86.7 | 58.0 | 33.3 VD-364L 38 70 42.408 1.4310 1023.751 45.86 24.14 56.2 | 85.2 | 54.1 | 29.3 VD-364R-05 39 89 45.098 1.4310 1628.027 52.9 36.1 56.1 | 83.5 | 57.2 | 27.6 VD-364R-04 39 76 51.54 1.4310 1515.717 46.59 29.41 53.6 | 85.6 | 51.1 | 24.1 VD-386A 38.3 85 56.087 1.4310 1043.01 66.4 18.6 51.1 | 83.7 | 47.5 | 22.2 VD-389A-20 37.8 85 67.846 1.4310 1751.745 59.18 25.82 49.0 | 84.1 | 44.6 | 18.3 VD-389A-05 39 89 69.765 1.4310 1295.762 70.43 18.57 46.8 | 80.4 | 42.2 | 17.8 VD-386 38.3 75 76.482 1.4310 1754.8 52.06 22.94 47.2 | 83.9 | 41.4 | 16.2 VD-389A-04 39 76 95.134 1.4310 1976.924 55.22 20.78 44.3 | 82.5 | 37.2 | 13.1 VD-414AB 42 76 165.794 1.4310 1725.562 65.59 10.41 37.5 | 77.1 | 27.8 | 7.5 VD-389P 34 68 194.065 1.4310 2094.116 57.21 10.79 36.9 | 79.0 | 25.3 | 6.4 Number of similar metal springs: 29 Customs tariff number: 73202081; Compression spring VD-326 Country of origin: DE, German; Compression spring VD-326 Product image - Compression springs VD-326 QR-Code: Compression spring VD-326
