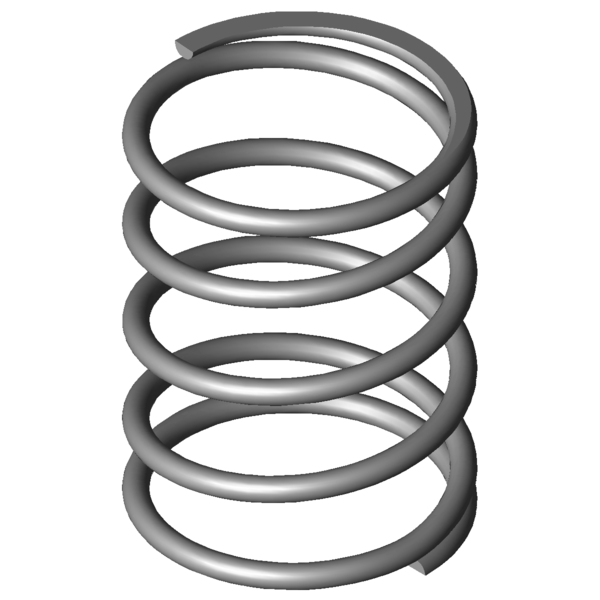

Home » Products » Compression springs » vd-339j-21 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339J-21 Stainless steel Ø 4.5 x 53.5 x 78 mm Scaled prices - Compression spring VD-339J-21 Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 3.8200 EUR 37 3.3100 EUR 75 3.2400 EUR 125 3.2400 EUR 175 3.2400 EUR 250 3.2400 EUR 350 3.2400 EUR Compression spring Buy Product image Compression spring VD-339J-21 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339J-21 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 53.5 mm Mean coil diameter De 58 mm Outer coil diameter Dd 47.8 mm maximum diameter of mandrel Dh 59.3 mm minimum diameter of bush L0 78 mm unstressed spring length Lk mm buckling length Fn 323.352 N maximum force in static use Ln 29.7 mm Minimum length in static use sn 48.3 mm Maximum spring deflection in static use Fndyn 306.616 N maximum force in dynamic use Lndyn 32.2 mm Minimum length in dynamic use shdyn 23.4 mm Maximum stroke in dynamic use S 21 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 6.695 N/mm Spring rate Weight 116.2149 g weight of one spring Fntol 28 N (+/-) tolerance of maximum force in static use Fndtol 27.8 N (+/-) tolerance of maximum dynamic force Detol 1 mm (+/-) tolerances of outer coil diameter L0tol 3.4 mm (+/-) tolerance of unstressed spring length Price group #AL - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339J-21 Stainless steel Ø 4.5 x 53.5 x 78 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339J-21 Stainless steel Ø 4.5 x 53.5 x 78 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339J-21 Stainless steel Ø 4.5 x 53.5 x 78 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339J-21 Stainless steel Ø 4.5 x 53.5 x 78 mm force-path-calculation Compression spring VD-339J-21 Inquiry formular Compression spring VD-339J-21 Stainless steel Ø 4.5 x 53.5 x 78 mm Inquiry formular Compression spring VD-339J-21 Similar compression springs to Compression spring VD-339J-21 Stainless steel Ø 4.5 x 53.5 x 78 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339J-21 1.4310 4.5 58 78 323.352 29.7 48.3 3.5 6.695 100.0 | 100.0 | 100.0 | 100.0 D-339J-21 EN 10270-1 4.5 58 78 376.4 29.7 48.3 3.5 7.795 93.0 | 100.0 | 93.0 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288X-20 48 88 2.222 1.4310 148.681 21.09 66.91 57.2 | 79.4 | 59.1 | 33.2 VD-289C-01 48 76 2.915 1.4310 157.397 22.01 53.99 65.5 | 83.8 | 69.1 | 43.5 VD-289D 43.2 82 4.096 1.4310 248.443 21.35 60.66 73.2 | 80.2 | 78.2 | 61.2 VD-313E-10 48 80 4.198 1.4310 225.308 26.33 53.67 76.4 | 86.8 | 79.8 | 62.7 VD-313W 54 90 5.12 1.4310 324.192 26.68 63.32 84.7 | 89.6 | 88.0 | 76.5 VD-339J-21 58 78 6.695 1.4310 323.352 29.7 48.3 100.0 | 100.0 | 100.0 | 100.0 VD-318B 49 68 7.023 1.4310 294.573 26.06 41.94 90.4 | 86.9 | 89.0 | 95.3 VD-364R-42 54 92 8.929 1.4310 206.319 68.89 23.11 72.3 | 86.1 | 55.8 | 75.0 VD-344A-12 60 80 9.391 1.4310 446.563 32.45 47.55 83.8 | 94.7 | 85.4 | 71.3 VD-339K 50 74.4 10.883 1.4310 496.923 28.74 45.66 78.4 | 93.9 | 79.8 | 61.5 VD-349A-04 50 70 10.912 1.4310 295.704 42.9 27.1 74.6 | 88.7 | 73.8 | 61.4 VD-345 55 85 12.5 1.4310 664.063 31.88 53.13 71.9 | 92.2 | 69.8 | 53.6 VD-344B 55 66 12.5 1.4310 426.563 31.88 34.13 72.2 | 89.8 | 73.2 | 53.6 VD-339N-04 41 78 13.416 1.4310 527.241 38.7 39.3 70.5 | 90.2 | 71.3 | 49.9 VD-364R-41 54 59.4 13.799 1.4310 149.985 48.53 10.87 55.4 | 83.2 | 34.4 | 48.5 VD-364F 60 85.4 14.132 1.4310 712.104 35.01 50.39 69.3 | 89.9 | 70.6 | 47.4 VD-350A 45 80 15.536 1.4310 576.549 42.89 37.11 66.0 | 88.4 | 66.5 | 43.1 VD-364J-02 56 77 17.763 1.4310 752.264 34.65 42.35 65.1 | 92.4 | 65.3 | 37.7 VD-364R-70 61 85 19.474 1.4310 919.177 37.8 47.2 62.7 | 87.3 | 66.5 | 34.4 VD-375A 56.3 94 20.049 1.4310 802.193 53.99 40.01 59.6 | 83.8 | 61.6 | 33.4 VD-375 56.3 80 31.506 1.4310 1293.686 38.94 41.06 55.0 | 88.7 | 55.0 | 21.2 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-339J-21 Country of origin: DE, German; Compression spring VD-339J-21 Product image - Compression springs VD-339J-21 QR-Code: Compression spring VD-339J-21
