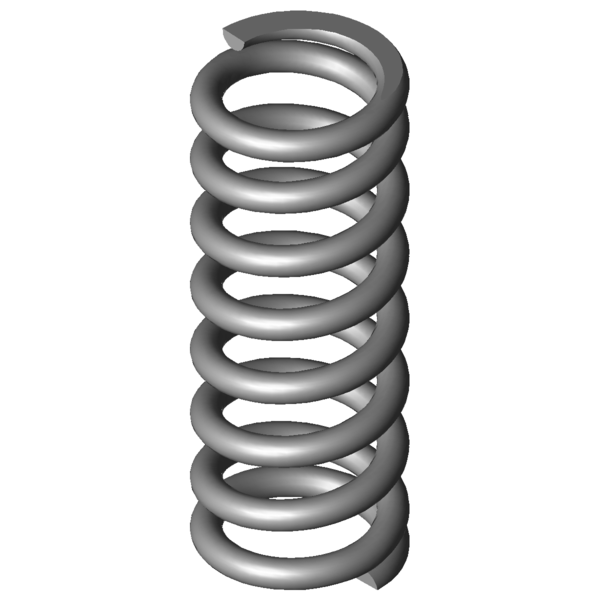

Home » Products » Compression springs » vd-288x-06 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288X-06 Stainless steel Ø 2.9 x 16.5 x 51 mm Scaled prices - Compression spring VD-288X-06 Quantity Single price [EUR] 1 6.0600 EUR 2 4.2700 EUR 3 4.0700 EUR 7 3.2700 EUR 17 1.9600 EUR 37 1.5300 EUR 75 1.4100 EUR 125 1.1143 EUR 175 1.0455 EUR 250 0.9455 EUR 350 0.8716 EUR 450 0.8148 EUR Compression spring Buy Product image Compression spring VD-288X-06 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288X-06 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.9 mm Wire diameter Di mm Inner coil diameter D 16.5 mm Mean coil diameter De 19.4 mm Outer coil diameter Dd 12.9 mm maximum diameter of mandrel Dh 20.4 mm minimum diameter of bush L0 51 mm unstressed spring length Lk mm buckling length Fn 467.351 N maximum force in static use Ln 28.95 mm Minimum length in static use sn 22.05 mm Maximum spring deflection in static use Fndyn 370.914 N maximum force in dynamic use Lndyn 33.5 mm Minimum length in dynamic use shdyn 4.33 mm Maximum stroke in dynamic use S 7.4 mm pitch of spring n 6.5 pc. number of active coils nt pc. total number of coils R 21.195 N/mm Spring rate Weight 23.0048 g weight of one spring Fntol 32.84 N (+/-) tolerance of maximum force in static use Fndtol 31.6 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 0.98 mm (+/-) tolerance of unstressed spring length Price group Q - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288X-06 Stainless steel Ø 2.9 x 16.5 x 51 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288X-06 Stainless steel Ø 2.9 x 16.5 x 51 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288X-06 Stainless steel Ø 2.9 x 16.5 x 51 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288X-06 Stainless steel Ø 2.9 x 16.5 x 51 mm force-path-calculation Compression spring VD-288X-06 Inquiry formular Compression spring VD-288X-06 Stainless steel Ø 2.9 x 16.5 x 51 mm Inquiry formular Compression spring VD-288X-06 Similar compression springs to Compression spring VD-288X-06 Stainless steel Ø 2.9 x 16.5 x 51 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288X-06 1.4310 2.9 19.4 51 467.351 28.95 22.05 6.5 21.195 100.0 | 100.0 | 100.0 | 100.0 D-288X-06 EN 10270-1 2.9 19.4 51 542.897 29 22 6.5 24.677 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JR 22 50.7 0.935 1.4310 33.948 14.39 36.31 39.4 | 79.8 | 34.0 | 4.4 VD-207J-71 20 55 1.272 1.4310 52.153 14 41 39.7 | 80.5 | 32.5 | 6.0 VD-206D-02 17.4 53.9 1.492 1.4310 61.146 12.92 40.98 39.3 | 77.5 | 33.4 | 7.0 VD-207J-04 16.5 52.5 1.544 1.4310 51.824 18.94 33.56 41.2 | 78.0 | 38.4 | 7.3 VD-212C 19.8 44 1.729 1.4310 50.867 14.59 29.41 43.6 | 79.8 | 42.9 | 8.2 VD-208 21.6 48 2.048 1.4310 71.066 13.3 34.7 42.9 | 79.7 | 39.4 | 9.7 VD-247D-06 20 50 2.182 1.4310 41.741 30.87 19.13 48.7 | 88.0 | 47.8 | 10.3 VD-232L-01 20 56 2.344 1.4310 88.455 18.26 37.74 44.4 | 83.4 | 38.7 | 11.1 VD-214 17.6 51.1 2.545 1.4310 88.709 16.25 34.85 45.0 | 81.9 | 41.1 | 12.0 VD-232L 20 51.5 2.77 1.4310 98.322 16.01 35.49 46.9 | 86.0 | 41.6 | 13.1 VD-247D-05 20 43.5 4.001 1.4310 99.391 18.66 24.84 52.5 | 83.8 | 55.0 | 18.9 VD-249A 18 56 4.021 1.4310 127.341 24.33 31.67 50.6 | 84.3 | 48.4 | 19.0 VD-263M-01 19 57 5.086 1.4310 154.577 26.61 30.39 54.9 | 87.8 | 52.8 | 24.0 VD-283A-10 16.5 52 16.608 1.4310 365.381 30 22 85.7 | 89.8 | 89.0 | 78.4 VD-288X-06 19.4 51 21.195 1.4310 467.351 28.95 22.05 100.0 | 100.0 | 100.0 | 100.0 VD-288X-05 19.4 44 22.961 1.4310 418.243 25.78 18.22 91.3 | 95.4 | 86.1 | 92.3 VD-310A 19.2 54 23.579 1.4310 306.998 40.98 13.02 82.3 | 94.7 | 62.4 | 89.9 VD-288ZD 17.5 50 25.831 1.4310 344.948 36.65 13.35 81.4 | 95.0 | 67.2 | 82.0 VD-311 19.2 59 26.353 1.4310 570.805 37.34 21.66 87.5 | 92.0 | 90.1 | 80.4 VD-288Z-62 17 49.8 30.387 1.4310 453.285 34.88 14.92 82.0 | 94.0 | 82.3 | 69.8 VD-313A-06 19.5 51 30.509 1.4310 439.503 36.59 14.41 81.7 | 95.8 | 79.7 | 69.5 VD-313A-05 19.5 44 36.159 1.4310 437.244 31.91 12.09 74.7 | 91.2 | 74.2 | 58.6 VD-339A-01 21.5 50 64.301 1.4310 813.639 37.35 12.65 59.1 | 86.9 | 57.4 | 33.0 VD-339E-03 18 53 96.038 1.4310 669.892 46.02 6.98 53.3 | 87.2 | 50.7 | 22.1 VD-339T-10 22 50 121.725 1.4310 1491.136 37.75 12.25 48.1 | 83.6 | 43.4 | 17.4 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-288X-06 Country of origin: DE, German; Compression spring VD-288X-06 Product image - Compression springs VD-288X-06 QR-Code: Compression spring VD-288X-06
