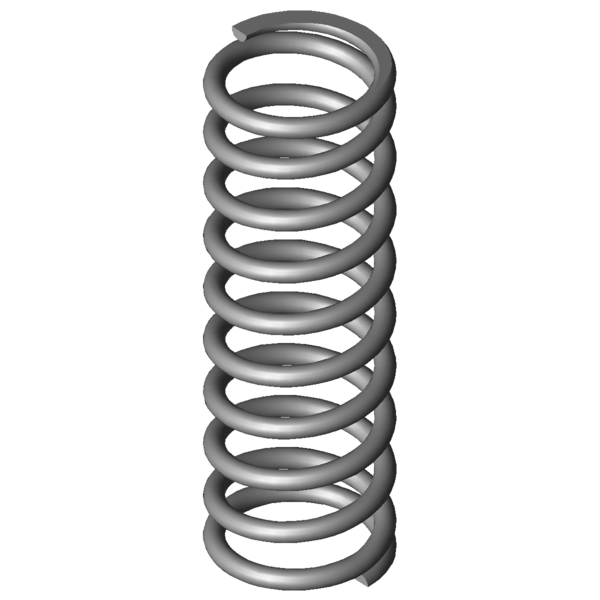

Home » Products » Compression springs » vd-263vc Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-263VC Stainless steel Ø 2.3 x 17.7 x 60.9 mm Scaled prices - Compression spring VD-263VC Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-263VC Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-263VC Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.3 mm Wire diameter Di mm Inner coil diameter D 17.7 mm Mean coil diameter De 20 mm Outer coil diameter Dd 14.7 mm maximum diameter of mandrel Dh 20.9 mm minimum diameter of bush L0 60.9 mm unstressed spring length Lk mm buckling length Fn 171.736 N maximum force in static use Ln 27.84 mm Minimum length in static use sn 33.06 mm Maximum spring deflection in static use Fndyn 162.134 N maximum force in dynamic use Lndyn 29.69 mm Minimum length in dynamic use shdyn 13.38 mm Maximum stroke in dynamic use S 6.894 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 5.195 N/mm Spring rate Weight 19.1751 g weight of one spring Fntol 11.85 N (+/-) tolerance of maximum force in static use Fndtol 11.68 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.46 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-263VC Stainless steel Ø 2.3 x 17.7 x 60.9 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-263VC Stainless steel Ø 2.3 x 17.7 x 60.9 mm Metal spring characteristic download pdf file CAD data Compression spring VD-263VC Stainless steel Ø 2.3 x 17.7 x 60.9 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-263VC Stainless steel Ø 2.3 x 17.7 x 60.9 mm force-path-calculation Compression spring VD-263VC Inquiry formular Compression spring VD-263VC Stainless steel Ø 2.3 x 17.7 x 60.9 mm Inquiry formular Compression spring VD-263VC Similar compression springs to Compression spring VD-263VC Stainless steel Ø 2.3 x 17.7 x 60.9 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-263VC 1.4310 2.3 20 60.9 171.736 27.84 33.06 8.5 5.195 100.0 | 100.0 | 100.0 | 100.0 D-263VC EN 10270-1 2.3 20 60.9 199.95 27.84 33.06 8.5 6.048 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206D-14 20.4 58 0.891 1.4310 39.74 13.4 44.6 50.2 | 84.7 | 48.6 | 17.2 VD-182 17.25 62 0.948 1.4310 44.805 14.75 47.25 48.6 | 79.6 | 48.0 | 18.3 VD-207JX 18.5 59.5 1.061 1.4310 42.449 19.48 40.02 53.1 | 85.1 | 53.7 | 20.4 VD-212D 19.8 66 1.119 1.4310 50.582 20.8 45.2 53.3 | 86.9 | 51.3 | 21.5 VD-207J-71 20 55 1.272 1.4310 52.153 14 41 55.1 | 85.2 | 55.5 | 24.5 VD-247D-07 20 65 1.334 1.4310 22.707 47.97 17.03 50.5 | 93.5 | 32.4 | 25.7 VD-232L-02 20 69 1.793 1.4310 82.857 22.78 46.22 61.1 | 88.8 | 59.9 | 34.5 VD-232L-01 20 56 2.344 1.4310 88.455 18.26 37.74 68.2 | 90.1 | 69.6 | 45.1 VD-247C 20.5 62 2.601 1.4310 96.556 24.88 37.12 72.3 | 94.2 | 72.6 | 50.1 VD-232L 20 51.5 2.77 1.4310 98.322 16.01 35.49 72.0 | 87.6 | 75.2 | 53.3 VD-241 22 62 3.182 1.4310 134.591 19.7 42.3 77.2 | 92.0 | 78.3 | 61.3 VD-247D-20 18.5 66 3.667 1.4310 152.398 24.44 41.56 81.8 | 90.6 | 84.1 | 70.6 VD-275A 22.5 60 5.026 1.4310 148.707 30.42 29.59 92.6 | 93.1 | 88.0 | 96.7 VD-263M-01 19 57 5.086 1.4310 154.577 26.61 30.39 94.5 | 94.7 | 91.0 | 97.9 VD-263VC 20 60.9 5.195 1.4310 171.736 27.84 33.06 100.0 | 100.0 | 100.0 | 100.0 VD-278B-10 20 65 7.503 1.4310 263.079 29.94 35.06 81.4 | 95.2 | 79.8 | 69.2 VD-281 18.5 61 9.817 1.4310 307.47 29.68 31.32 74.3 | 94.8 | 75.3 | 52.9 VD-288R 20 64.2 11.126 1.4310 309.68 36.37 27.83 69.6 | 92.3 | 69.8 | 46.7 VD-288Z-52 21 60.5 14.297 1.4310 358.478 35.43 25.07 62.9 | 90.4 | 61.9 | 36.3 VD-288X-07 19.4 64 16.699 1.4310 468.411 35.95 28.05 60.8 | 90.5 | 60.8 | 31.1 VD-288S-10 18.9 65 19.827 1.4310 432.221 43.2 21.8 56.4 | 90.1 | 52.8 | 26.2 VD-310A 19.2 54 23.579 1.4310 306.998 40.98 13.02 51.7 | 85.5 | 47.7 | 22.0 VD-313A-30 18.6 65 23.925 1.4310 489.815 44.53 20.47 52.1 | 86.2 | 48.5 | 21.7 VD-313A-07 19.5 64 25.033 1.4310 521.8 43.16 20.84 52.1 | 87.5 | 48.0 | 20.7 VD-311 19.2 59 26.353 1.4310 570.805 37.34 21.66 51.9 | 88.3 | 47.8 | 19.7 VD-313N-10 22.5 60 29.025 1.4310 638.076 38.02 21.98 49.5 | 83.8 | 46.7 | 17.9 VD-313Q 18 58.3 51.809 1.4310 655.863 45.64 12.66 41.8 | 83.2 | 32.2 | 10.0 VD-339A-04 21 65 53.639 1.4310 1000.371 46.35 18.65 42.9 | 82.1 | 36.8 | 9.7 VD-339D 20 64.4 57.566 1.4310 787.961 50.71 13.69 41.5 | 84.0 | 31.6 | 9.0 VD-339V-06 19 63 138.463 1.4310 1568.791 51.67 11.33 35.8 | 80.9 | 22.6 | 3.8 Number of similar metal springs: 29 Customs tariff number: 73202081; Compression spring VD-263VC Country of origin: DE, German; Compression spring VD-263VC Product image - Compression springs VD-263VC QR-Code: Compression spring VD-263VC
