Compression spring VD-313Q Stainless steel Ø 3.6 x 14.4 x 58.3 mm

Scaled prices - Compression spring VD-313Q

Quantity	Single price [EUR]
1	12.9200 EUR
2	10.2900 EUR
3	5.8600 EUR
7	3.7100 EUR
17	2.3700 EUR
37	2.0000 EUR
75	1.9100 EUR
125	1.8670 EUR
175	1.8647 EUR
250	1.8186 EUR
350	1.7923 EUR

Compression spring Buy

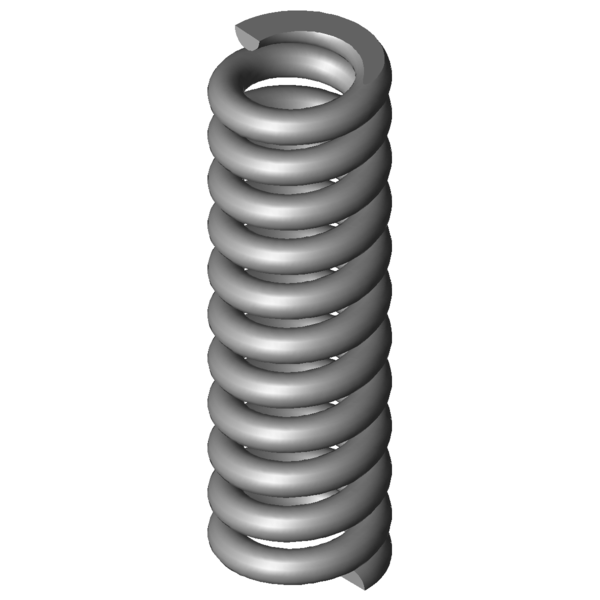

Product image Compression spring VD-313Q

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-313Q

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	3.6	mm	Wire diameter
Di		mm	Inner coil diameter
D	14.4	mm	Mean coil diameter
De	18	mm	Outer coil diameter
Dd	10	mm	maximum diameter of mandrel
Dh	18.9	mm	minimum diameter of bush
L0	58.3	mm	unstressed spring length
Lk		mm	buckling length
Fn	655.863	N	maximum force in static use
Ln	45.64	mm	Minimum length in static use
sn	12.66	mm	Maximum spring deflection in static use
Fndyn	546.069	N	maximum force in dynamic use
Lndyn	47.76	mm	Minimum length in dynamic use
shdyn	4.4	mm	Maximum stroke in dynamic use
S	5.758	mm	pitch of spring
n	9.5	pc.	number of active coils
nt		pc.	total number of coils
R	51.809	N/mm	Spring rate
Weight	41.8587	g	weight of one spring
Fntol	80.53	N	(+/-) tolerance of maximum force in static use
Fndtol	78.62	N	(+/-) tolerance of maximum dynamic force
Detol	0.35	mm	(+/-) tolerances of outer coil diameter
L0tol	1.15	mm	(+/-) tolerance of unstressed spring length
Price group	AD	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-313Q Stainless steel Ø 3.6 x 14.4 x 58.3 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-313Q Stainless steel Ø 3.6 x 14.4 x 58.3 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-313Q Stainless steel Ø 3.6 x 14.4 x 58.3 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-313Q Stainless steel Ø 3.6 x 14.4 x 58.3 mm

force-path-calculation Compression spring VD-313Q

Inquiry formular Compression spring VD-313Q Stainless steel Ø 3.6 x 14.4 x 58.3 mm

Inquiry formular Compression spring VD-313Q

Similar compression springs to Compression spring VD-313Q Stainless steel Ø 3.6 x 14.4 x 58.3 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-313Q	1.4310	3.6	18	58.3	655.863	45.64	12.66	9.5	51.809	100.0 \| 100.0 \| 100.0 \| 100.0
D-313Q	EN 10270-1	3.6	18	58.3	763.612	45.64	12.66	9.5	60.321	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-249A	18	56	4.021	1.4310	127.341	24.33	31.67	40.4 \| 83.9 \| 29.7 \| 7.8
VD-263M-01	19	57	5.086	1.4310	154.577	26.61	30.39	42.3 \| 84.5 \| 32.6 \| 9.8
VD-263VC	20	60.9	5.195	1.4310	171.736	27.84	33.06	41.8 \| 83.2 \| 32.2 \| 10.0
VD-281	18.5	61	9.817	1.4310	307.47	29.68	31.32	50.0 \| 87.4 \| 43.7 \| 18.9
VD-283A-17	15.5	59	14.817	1.4310	356.492	34.94	24.06	55.6 \| 84.8 \| 53.5 \| 28.6
VD-283A-10	16.5	52	16.608	1.4310	365.381	30	22	57.4 \| 83.4 \| 56.6 \| 32.1
VD-288X-07	19.4	64	16.699	1.4310	468.411	35.95	28.05	59.6 \| 88.1 \| 58.3 \| 32.2
VD-288S-10	18.9	65	19.827	1.4310	432.221	43.2	21.8	62.6 \| 87.6 \| 62.0 \| 38.3
VD-310A	19.2	54	23.579	1.4310	306.998	40.98	13.02	69.8 \| 91.8 \| 72.0 \| 45.5
VD-313A-30	18.6	65	23.925	1.4310	489.815	44.53	20.47	68.7 \| 91.8 \| 68.3 \| 46.2
VD-313A-07	19.5	64	25.033	1.4310	521.8	43.16	20.84	70.1 \| 91.7 \| 70.2 \| 48.3
VD-288ZD	17.5	50	25.831	1.4310	344.948	36.65	13.35	70.8 \| 88.8 \| 73.7 \| 49.9
VD-311	19.2	59	26.353	1.4310	570.805	37.34	21.66	72.5 \| 93.8 \| 72.7 \| 50.9
VD-288Z-62	17	49.8	30.387	1.4310	453.285	34.88	14.92	74.5 \| 87.7 \| 77.0 \| 58.6
VD-313Q	18	58.3	51.809	1.4310	655.863	45.64	12.66	100.0 \| 100.0 \| 100.0 \| 100.0
VD-339E-03	18	53	96.038	1.4310	669.892	46.02	6.98	74.7 \| 93.6 \| 76.5 \| 54.0
VD-339V-06	19	63	138.463	1.4310	1568.791	51.67	11.33	64.1 \| 89.1 \| 65.7 \| 37.4
