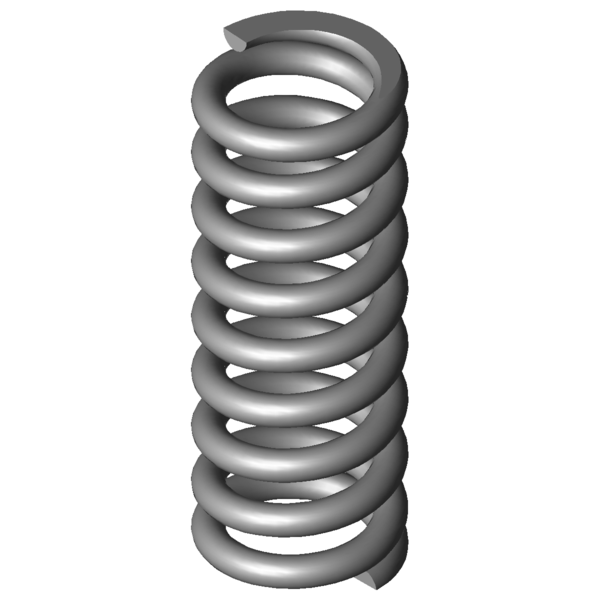

Home » Products » Compression springs » vd-313n-10 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313N-10 Stainless steel Ø 3.6 x 18.9 x 60 mm Scaled prices - Compression spring VD-313N-10 Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0408 EUR 175 2.0281 EUR 250 1.9902 EUR 350 1.9446 EUR Compression spring Buy Product image Compression spring VD-313N-10 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313N-10 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.6 mm Wire diameter Di mm Inner coil diameter D 18.9 mm Mean coil diameter De 22.5 mm Outer coil diameter Dd 14.6 mm maximum diameter of mandrel Dh 23.4 mm minimum diameter of bush L0 60 mm unstressed spring length Lk mm buckling length Fn 638.076 N maximum force in static use Ln 38.02 mm Minimum length in static use sn 21.98 mm Maximum spring deflection in static use Fndyn 565.986 N maximum force in dynamic use Lndyn 40.5 mm Minimum length in dynamic use shdyn 4.16 mm Maximum stroke in dynamic use S 7.52 mm pitch of spring n 7.5 pc. number of active coils nt pc. total number of coils R 29.025 N/mm Spring rate Weight 45.3848 g weight of one spring Fntol 51.15 N (+/-) tolerance of maximum force in static use Fndtol 50.18 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.18 mm (+/-) tolerance of unstressed spring length Price group AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313N-10 Stainless steel Ø 3.6 x 18.9 x 60 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313N-10 Stainless steel Ø 3.6 x 18.9 x 60 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313N-10 Stainless steel Ø 3.6 x 18.9 x 60 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313N-10 Stainless steel Ø 3.6 x 18.9 x 60 mm force-path-calculation Compression spring VD-313N-10 Inquiry formular Compression spring VD-313N-10 Stainless steel Ø 3.6 x 18.9 x 60 mm Inquiry formular Compression spring VD-313N-10 Similar compression springs to Compression spring VD-313N-10 Stainless steel Ø 3.6 x 18.9 x 60 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313N-10 1.4310 3.6 22.5 60 638.076 38.02 21.98 7.5 29.025 100.0 | 100.0 | 100.0 | 100.0 D-313N-10 EN 10270-1 3.6 22.5 60 742.903 38.02 21.98 7.5 33.793 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-241 22 62 3.182 1.4310 134.591 19.7 42.3 43.6 | 83.4 | 36.5 | 11.0 VD-240A 22 55.4 3.182 1.4310 119.795 17.75 37.65 43.8 | 81.9 | 38.6 | 11.0 VD-263K 24 59.1 3.597 1.4310 142.478 19.49 39.61 45.3 | 84.5 | 38.9 | 12.4 VD-275A 22.5 60 5.026 1.4310 148.707 30.42 29.59 52.0 | 89.8 | 48.8 | 17.3 VD-263VC 20 60.9 5.195 1.4310 171.736 27.84 33.06 49.5 | 83.8 | 46.7 | 17.9 VD-275 22.5 54 7.768 1.4310 252.891 21.45 32.56 55.6 | 86.5 | 53.6 | 26.8 VD-288R 20 64.2 11.126 1.4310 309.68 36.37 27.83 62.9 | 86.7 | 63.8 | 38.3 VD-305A 23.2 61 13.493 1.4310 311.496 37.91 23.09 71.1 | 94.7 | 72.0 | 46.5 VD-288Z-52 21 60.5 14.297 1.4310 358.478 35.43 25.07 71.0 | 91.9 | 71.9 | 49.3 VD-308A-02 22 70 14.535 1.4310 415.495 41.41 28.59 70.6 | 90.8 | 71.0 | 50.1 VD-313L-01 25 63.5 17.642 1.4310 370.809 42.48 21.02 77.5 | 94.8 | 76.9 | 60.8 VD-308A-01 22 56 18.411 1.4310 404.254 34.04 21.96 79.5 | 93.3 | 81.6 | 63.4 VD-313L-02 25 57 21.423 1.4310 444.403 36.26 20.74 83.6 | 95.0 | 82.0 | 73.8 VD-311 19.2 59 26.353 1.4310 570.805 37.34 21.66 91.9 | 90.9 | 94.0 | 90.8 VD-313N-10 22.5 60 29.025 1.4310 638.076 38.02 21.98 100.0 | 100.0 | 100.0 | 100.0 VD-336A 24 65 32.941 1.4310 603.647 46.68 18.33 89.7 | 92.0 | 89.0 | 88.2 VD-339A-04 21 65 53.639 1.4310 1000.371 46.35 18.65 73.4 | 91.9 | 74.3 | 54.1 VD-339D 20 64.4 57.566 1.4310 787.961 50.71 13.69 70.9 | 90.7 | 71.6 | 50.4 VD-339R-01 22.5 70 82.031 1.4310 1451.953 52.3 17.7 62.1 | 88.6 | 62.2 | 35.4 VD-339T-10 22 50 121.725 1.4310 1491.136 37.75 12.25 53.4 | 87.0 | 49.3 | 23.8 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-313N-10 Country of origin: DE, German; Compression spring VD-313N-10 Product image - Compression springs VD-313N-10 QR-Code: Compression spring VD-313N-10
