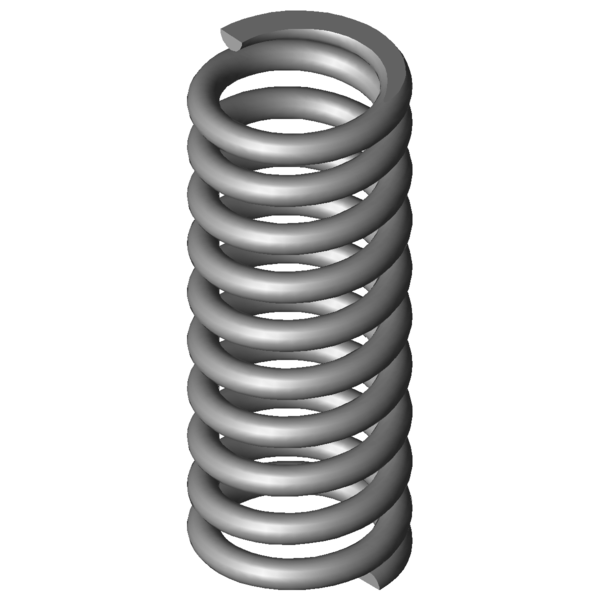

Home » Products » Compression springs » vd-313l-01 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313L-01 Stainless steel Ø 3.6 x 21.4 x 63.5 mm Scaled prices - Compression spring VD-313L-01 Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.8670 EUR 175 1.8647 EUR 250 1.8186 EUR 350 1.7923 EUR Compression spring Buy Product image Compression spring VD-313L-01 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313L-01 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.6 mm Wire diameter Di mm Inner coil diameter D 21.4 mm Mean coil diameter De 25 mm Outer coil diameter Dd 17 mm maximum diameter of mandrel Dh 26 mm minimum diameter of bush L0 63.5 mm unstressed spring length Lk mm buckling length Fn 370.809 N maximum force in static use Ln 42.48 mm Minimum length in static use sn 21.02 mm Maximum spring deflection in static use Fndyn 329.56 N maximum force in dynamic use Lndyn 44.82 mm Minimum length in dynamic use shdyn 12.03 mm Maximum stroke in dynamic use S 7.047 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 17.642 N/mm Spring rate Weight 56.7974 g weight of one spring Fntol 36.66 N (+/-) tolerance of maximum force in static use Fndtol 35.94 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.47 mm (+/-) tolerance of unstressed spring length Price group AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313L-01 Stainless steel Ø 3.6 x 21.4 x 63.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313L-01 Stainless steel Ø 3.6 x 21.4 x 63.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313L-01 Stainless steel Ø 3.6 x 21.4 x 63.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313L-01 Stainless steel Ø 3.6 x 21.4 x 63.5 mm force-path-calculation Compression spring VD-313L-01 Inquiry formular Compression spring VD-313L-01 Stainless steel Ø 3.6 x 21.4 x 63.5 mm Inquiry formular Compression spring VD-313L-01 Similar compression springs to Compression spring VD-313L-01 Stainless steel Ø 3.6 x 21.4 x 63.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313L-01 1.4310 3.6 25 63.5 370.809 42.48 21.02 8.5 17.642 100.0 | 100.0 | 100.0 | 100.0 D-313L-01 EN 10270-1 3.6 25 63.5 431.728 42.48 21.02 8.5 20.541 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-239A-03 25 63 2.557 1.4310 116.983 17.25 45.75 46.1 | 84.9 | 38.7 | 14.5 VD-235 27 58 2.56 1.4310 107.776 15.9 42.1 44.6 | 79.8 | 39.5 | 14.5 VD-239A-14 23.5 58 2.561 1.4310 102.321 18.05 39.95 45.0 | 80.3 | 40.1 | 14.5 VD-247C 20.5 62 2.601 1.4310 96.556 24.88 37.12 44.8 | 78.4 | 41.3 | 14.7 VD-241 22 62 3.182 1.4310 134.591 19.7 42.3 47.1 | 80.4 | 43.0 | 18.0 VD-263K 24 59.1 3.597 1.4310 142.478 19.49 39.61 49.8 | 83.4 | 45.7 | 20.4 VD-275A 22.5 60 5.026 1.4310 148.707 30.42 29.59 56.2 | 84.6 | 55.6 | 28.5 VD-288Z-32 28 63 8.247 1.4310 306.232 25.87 37.13 69.0 | 90.6 | 69.6 | 46.8 VD-288Z-42 27 55.1 9.322 1.4310 273.742 25.73 29.37 71.0 | 87.6 | 72.7 | 52.8 VD-300 28.2 63.5 10.676 1.4310 385.725 27.37 36.13 76.7 | 92.5 | 77.2 | 60.5 VD-288R 20 64.2 11.126 1.4310 309.68 36.37 27.83 76.1 | 85.6 | 79.5 | 63.1 VD-305A 23.2 61 13.493 1.4310 311.496 37.91 23.09 85.5 | 92.6 | 87.5 | 76.5 VD-288Z-52 21 60.5 14.297 1.4310 358.478 35.43 25.07 86.3 | 87.5 | 90.3 | 81.1 VD-313L-03 25 72 16.662 1.4310 457.257 44.56 27.44 89.8 | 96.1 | 78.8 | 94.5 VD-313L-01 25 63.5 17.642 1.4310 370.809 42.48 21.02 100.0 | 100.0 | 100.0 | 100.0 VD-313L-02 25 57 21.423 1.4310 444.403 36.26 20.74 90.0 | 96.6 | 91.1 | 82.3 VD-331 29 60.5 26.065 1.4310 704.052 33.49 27.01 74.5 | 90.5 | 65.2 | 67.7 VD-313N-10 22.5 60 29.025 1.4310 638.076 38.02 21.98 77.5 | 94.8 | 76.9 | 60.8 VD-336A 24 65 32.941 1.4310 603.647 46.68 18.33 74.1 | 94.6 | 74.3 | 53.6 VD-337 24 72 32.941 1.4310 834.235 46.68 25.33 69.6 | 91.4 | 63.7 | 53.6 VD-339R-10 27 70 42 1.4310 949.594 47.39 22.61 65.3 | 87.8 | 66.0 | 42.0 VD-339A-04 21 65 53.639 1.4310 1000.371 46.35 18.65 62.1 | 90.6 | 62.9 | 32.9 VD-339D 20 64.4 57.566 1.4310 787.961 50.71 13.69 58.8 | 89.5 | 56.1 | 30.6 VD-339R-01 22.5 70 82.031 1.4310 1451.953 52.3 17.7 54.4 | 86.9 | 54.9 | 21.5 VD-365RA 28 66 102.083 1.4310 775.017 58.41 7.59 47.5 | 83.3 | 42.0 | 17.3 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-313L-01 Country of origin: DE, German; Compression spring VD-313L-01 Product image - Compression springs VD-313L-01 QR-Code: Compression spring VD-313L-01
