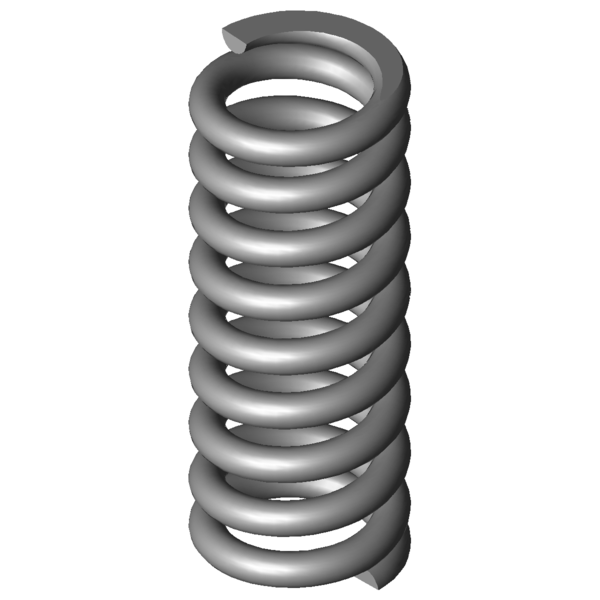

Home » Products » Compression springs » vd-339r-10 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339R-10 Stainless steel Ø 4.5 x 22.5 x 70 mm Scaled prices - Compression spring VD-339R-10 Quantity Single price [EUR] 1 13.3600 EUR 2 10.6400 EUR 3 6.1500 EUR 7 4.0000 EUR 17 2.6100 EUR 37 2.2000 EUR 75 2.1400 EUR 125 2.1400 EUR 175 2.1400 EUR 250 2.1400 EUR 350 2.1400 EUR Compression spring Buy Product image Compression spring VD-339R-10 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339R-10 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 22.5 mm Mean coil diameter De 27 mm Outer coil diameter Dd 17.2 mm maximum diameter of mandrel Dh 28 mm minimum diameter of bush L0 70 mm unstressed spring length Lk mm buckling length Fn 949.594 N maximum force in static use Ln 47.39 mm Minimum length in static use sn 22.61 mm Maximum spring deflection in static use Fndyn 852.18 N maximum force in dynamic use Lndyn 49.71 mm Minimum length in dynamic use shdyn 4.29 mm Maximum stroke in dynamic use S 8.733 mm pitch of spring n 7.5 pc. number of active coils nt pc. total number of coils R 42 N/mm Spring rate Weight 84.4212 g weight of one spring Fntol 86.45 N (+/-) tolerance of maximum force in static use Fndtol 79.78 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.33 mm (+/-) tolerance of unstressed spring length Price group #AF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339R-10 Stainless steel Ø 4.5 x 22.5 x 70 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339R-10 Stainless steel Ø 4.5 x 22.5 x 70 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339R-10 Stainless steel Ø 4.5 x 22.5 x 70 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339R-10 Stainless steel Ø 4.5 x 22.5 x 70 mm force-path-calculation Compression spring VD-339R-10 Inquiry formular Compression spring VD-339R-10 Stainless steel Ø 4.5 x 22.5 x 70 mm Inquiry formular Compression spring VD-339R-10 Similar compression springs to Compression spring VD-339R-10 Stainless steel Ø 4.5 x 22.5 x 70 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339R-10 1.4310 4.5 27 70 949.594 47.39 22.61 7.5 42 100.0 | 100.0 | 100.0 | 100.0 D-339R-10 EN 10270-1 4.5 27 70 1105.598 47.39 22.61 7.5 48.9 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-300A 28.2 79.4 6.181 1.4310 227.32 42.62 36.78 47.5 | 85.0 | 42.7 | 14.7 VD-288Z-32 28 63 8.247 1.4310 306.232 25.87 37.13 50.2 | 84.4 | 46.6 | 19.6 VD-300 28.2 63.5 10.676 1.4310 385.725 27.37 36.13 54.3 | 85.9 | 51.6 | 25.4 VD-313J-08 28.6 74.6 12.541 1.4310 448.306 38.85 35.75 58.2 | 89.4 | 55.2 | 29.9 VD-306 23.2 74 13.493 1.4310 486.901 37.91 36.09 57.7 | 83.9 | 57.0 | 32.1 VD-308A-02 22 70 14.535 1.4310 415.495 41.41 28.59 60.1 | 84.2 | 61.4 | 34.6 VD-313M 25 78 15.785 1.4310 495.142 46.63 31.37 62.4 | 87.4 | 62.1 | 37.6 VD-313L-03 25 72 16.662 1.4310 457.257 44.56 27.44 65.0 | 89.9 | 65.3 | 39.7 VD-313L-01 25 63.5 17.642 1.4310 370.809 42.48 21.02 65.3 | 87.8 | 66.0 | 42.0 VD-329B-01 30 70 19.607 1.4310 622.571 38.25 31.75 69.3 | 93.0 | 68.4 | 46.7 VD-334A-03 27 78 21.659 1.4310 669.274 47.1 30.9 72.1 | 92.9 | 71.8 | 51.6 VD-337 24 72 32.941 1.4310 834.235 46.68 25.33 86.2 | 91.7 | 88.6 | 78.4 VD-336A 24 65 32.941 1.4310 603.647 46.68 18.33 80.3 | 90.2 | 72.3 | 78.4 VD-361A 30 72 41.176 1.4310 562.316 58.34 13.66 83.4 | 92.4 | 59.8 | 98.0 VD-339R-10 27 70 42 1.4310 949.594 47.39 22.61 100.0 | 100.0 | 100.0 | 100.0 VD-339U 22 70.9 70.473 1.4310 979.936 56.99 13.91 77.4 | 93.4 | 79.2 | 59.6 VD-339R-01 22.5 70 82.031 1.4310 1451.953 52.3 17.7 72.5 | 94.4 | 71.8 | 51.2 VD-365RA 28 66 102.083 1.4310 775.017 58.41 7.59 63.0 | 90.4 | 57.6 | 41.1 VD-389R-01 27.8 70 389.098 1.4310 3596.724 60.76 9.24 43.9 | 87.1 | 33.6 | 10.8 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-339R-10 Country of origin: DE, German; Compression spring VD-339R-10 Product image - Compression springs VD-339R-10 QR-Code: Compression spring VD-339R-10
