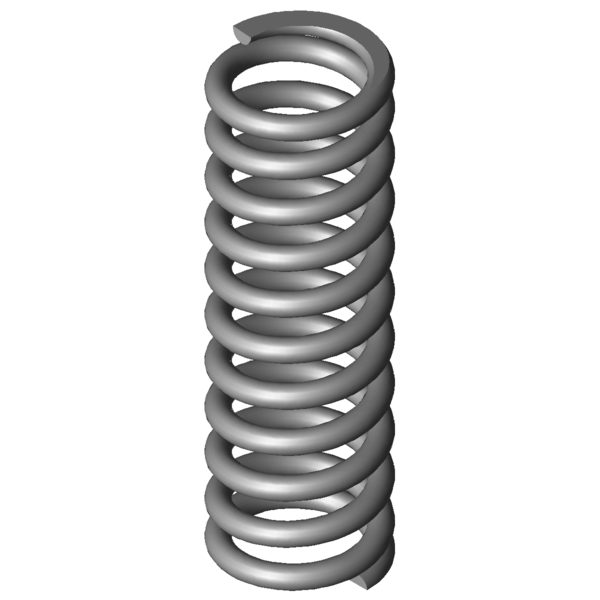

Home » Products » Compression springs » vd-313m Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313M Stainless steel Ø 3.6 x 21.4 x 78 mm Scaled prices - Compression spring VD-313M Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.8670 EUR 175 1.8647 EUR 250 1.8186 EUR 350 1.7923 EUR Compression spring Buy Product image Compression spring VD-313M Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313M Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.6 mm Wire diameter Di mm Inner coil diameter D 21.4 mm Mean coil diameter De 25 mm Outer coil diameter Dd 17 mm maximum diameter of mandrel Dh 26 mm minimum diameter of bush L0 78 mm unstressed spring length Lk mm buckling length Fn 495.142 N maximum force in static use Ln 46.63 mm Minimum length in static use sn 31.37 mm Maximum spring deflection in static use Fndyn 453.828 N maximum force in dynamic use Lndyn 49.25 mm Minimum length in dynamic use shdyn 9.42 mm Maximum stroke in dynamic use S 7.832 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 15.785 N/mm Spring rate Weight 62.2067 g weight of one spring Fntol 38.25 N (+/-) tolerance of maximum force in static use Fndtol 37.53 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.61 mm (+/-) tolerance of unstressed spring length Price group AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313M Stainless steel Ø 3.6 x 21.4 x 78 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313M Stainless steel Ø 3.6 x 21.4 x 78 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313M Stainless steel Ø 3.6 x 21.4 x 78 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313M Stainless steel Ø 3.6 x 21.4 x 78 mm force-path-calculation Compression spring VD-313M Inquiry formular Compression spring VD-313M Stainless steel Ø 3.6 x 21.4 x 78 mm Inquiry formular Compression spring VD-313M Similar compression springs to Compression spring VD-313M Stainless steel Ø 3.6 x 21.4 x 78 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313M 1.4310 3.6 25 78 495.142 46.63 31.37 9.5 15.785 100.0 | 100.0 | 100.0 | 100.0 D-313M EN 10270-1 3.6 25 78 576.486 46.63 31.37 9.5 18.379 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-236 27 88.5 1.629 1.4310 107.927 22.25 66.25 41.2 | 78.8 | 34.6 | 10.3 VD-241A 22 79 2.059 1.4310 110.662 25.25 53.75 44.7 | 80.8 | 40.4 | 13.0 VD-239A-02 25 62.5 2.092 1.4310 92.508 18.28 44.22 45.5 | 78.6 | 44.8 | 13.3 VD-247D-08 20 77.5 2.182 1.4310 101.755 30.87 46.63 45.3 | 78.3 | 43.9 | 13.8 VD-239A-03 25 63 2.557 1.4310 116.983 17.25 45.75 47.0 | 78.8 | 46.1 | 16.2 VD-270 27.5 74.5 3.977 1.4310 203.636 23.3 51.2 53.9 | 85.3 | 51.2 | 25.2 VD-273A-10 24 85 4.586 1.4310 237.531 33.2 51.8 56.4 | 85.7 | 54.3 | 29.1 VD-276 22.5 81.5 5.026 1.4310 255.594 30.65 50.85 57.9 | 85.0 | 56.7 | 31.8 VD-288Z-43 27 81.8 6.032 1.4310 273.249 36.5 45.3 63.6 | 90.4 | 62.2 | 38.2 VD-300A 28.2 79.4 6.181 1.4310 227.32 42.62 36.78 65.6 | 91.9 | 65.6 | 39.2 VD-308A-03 22 82 12.007 1.4310 398.811 48.79 33.21 84.8 | 90.7 | 87.5 | 76.1 VD-313J-08 28.6 74.6 12.541 1.4310 448.306 38.85 35.75 87.6 | 94.4 | 89.1 | 79.4 VD-306 23.2 74 13.493 1.4310 486.901 37.91 36.09 90.1 | 92.2 | 92.6 | 85.5 VD-313M-02 25 86 13.633 1.4310 451.804 52.86 33.14 92.1 | 96.9 | 93.0 | 86.4 VD-313M 25 78 15.785 1.4310 495.142 46.63 31.37 100.0 | 100.0 | 100.0 | 100.0 VD-313L-03 25 72 16.662 1.4310 457.257 44.56 27.44 94.0 | 97.4 | 89.9 | 94.7 VD-313L-01 25 63.5 17.642 1.4310 370.809 42.48 21.02 84.7 | 93.8 | 70.9 | 89.5 VD-334A-03 27 78 21.659 1.4310 669.274 47.1 30.9 84.4 | 94.2 | 86.2 | 72.9 VD-337 24 72 32.941 1.4310 834.235 46.68 25.33 70.2 | 92.8 | 70.0 | 47.9 VD-336A 24 65 32.941 1.4310 603.647 46.68 18.33 69.3 | 89.8 | 70.2 | 47.9 VD-339R-10 27 70 42 1.4310 949.594 47.39 22.61 62.4 | 87.4 | 62.1 | 37.6 VD-339D-10 20 77 52.083 1.4310 1135 55.21 21.79 58.8 | 89.6 | 56.5 | 30.3 VD-339U 22 70.9 70.473 1.4310 979.936 56.99 13.91 52.0 | 86.3 | 47.4 | 22.4 VD-339R-01 22.5 70 82.031 1.4310 1451.953 52.3 17.7 50.4 | 86.6 | 45.3 | 19.2 VD-389R-01 27.8 70 389.098 1.4310 3596.724 60.76 9.24 34.2 | 77.0 | 21.6 | 4.1 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-313M Country of origin: DE, German; Compression spring VD-313M Product image - Compression springs VD-313M QR-Code: Compression spring VD-313M
