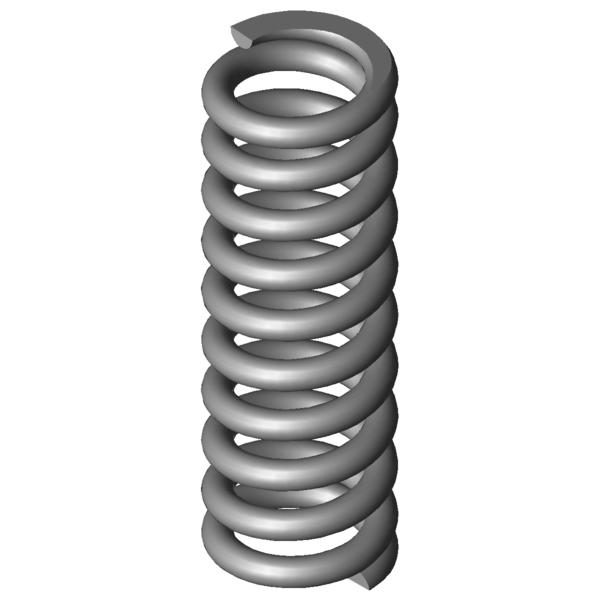

Home » Products » Compression springs » vd-337 Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-337 Stainless steel Ø 4 x 20 x 72 mm Scaled prices - Compression spring VD-337 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-337 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-337 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 4 mm Wire diameter Di - mm Inner coil diameter D 20 mm Mean coil diameter De 24 mm Outer coil diameter Dd 15.2 mm maximum diameter of mandrel Dh 25.1 mm minimum diameter of bush L0 72 mm unstressed spring length Lk mm buckling length Fn 834.235 N maximum force in static use Ln 46.68 mm Minimum length in static use sn 25.33 mm Maximum spring deflection in static use Fndyn 726.353 N maximum force in dynamic use Lndyn 49.95 mm Minimum length in dynamic use shdyn 4.05 mm Maximum stroke in dynamic use S 8 mm pitch of spring n 8.5 pc. number of active coils nt - pc. total number of coils R 32.941 N/mm Spring rate Weight 65.5329 g weight of one spring Fntol 66.44 N (+/-) tolerance of maximum force in static use Fndtol 65.09 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.35 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-337 Stainless steel Ø 4 x 20 x 72 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-337 Stainless steel Ø 4 x 20 x 72 mm Metal spring characteristic download pdf file CAD data Compression spring VD-337 Stainless steel Ø 4 x 20 x 72 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-337 Stainless steel Ø 4 x 20 x 72 mm force-path-calculation Compression spring VD-337 Inquiry formular Compression spring VD-337 Stainless steel Ø 4 x 20 x 72 mm Inquiry formular Compression spring VD-337 Similar compression springs to Compression spring VD-337 Stainless steel Ø 4 x 20 x 72 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-337 1.4310 4 24 72 834.235 46.68 25.33 8.5 32.941 100.0 | 100.0 | 100.0 | 100.0 D-337 EN 10270-1 4 24 72 971.288 46.68 25.33 8.5 38.353 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-239A-03 25 63 2.557 1.4310 116.983 17.25 45.75 40.1 | 77.8 | 34.7 | 7.8 VD-239A-14 23.5 58 2.561 1.4310 102.321 18.05 39.95 40.6 | 76.2 | 37.8 | 7.8 VD-241 22 62 3.182 1.4310 134.591 19.7 42.3 41.2 | 75.9 | 38.0 | 9.7 VD-263K 24 59.1 3.597 1.4310 142.478 19.49 39.61 43.5 | 79.0 | 40.5 | 10.9 VD-270 27.5 74.5 3.977 1.4310 203.636 23.3 51.2 43.7 | 82.1 | 36.9 | 12.1 VD-273A-10 24 85 4.586 1.4310 237.531 33.2 51.8 45.0 | 82.4 | 38.7 | 13.9 VD-276 22.5 81.5 5.026 1.4310 255.594 30.65 50.85 45.7 | 81.5 | 40.2 | 15.3 VD-306 23.2 74 13.493 1.4310 486.901 37.91 36.09 65.5 | 91.3 | 64.3 | 41.0 VD-305A 23.2 61 13.493 1.4310 311.496 37.91 23.09 64.1 | 87.1 | 64.2 | 41.0 VD-308A-02 22 70 14.535 1.4310 415.495 41.41 28.59 67.7 | 89.6 | 69.2 | 44.1 VD-313M 25 78 15.785 1.4310 495.142 46.63 31.37 70.2 | 92.8 | 70.0 | 47.9 VD-313L-03 25 72 16.662 1.4310 457.257 44.56 27.44 73.2 | 95.3 | 73.6 | 50.6 VD-313L-01 25 63.5 17.642 1.4310 370.809 42.48 21.02 69.6 | 91.4 | 63.7 | 53.6 VD-334A-03 27 78 21.659 1.4310 669.274 47.1 30.9 80.2 | 93.7 | 81.1 | 65.8 VD-337 24 72 32.941 1.4310 834.235 46.68 25.33 100.0 | 100.0 | 100.0 | 100.0 VD-339R-10 27 70 42 1.4310 949.594 47.39 22.61 86.2 | 91.7 | 88.6 | 78.4 VD-339U 22 70.9 70.473 1.4310 979.936 56.99 13.91 69.9 | 93.0 | 70.0 | 46.8 VD-339R-01 22.5 70 82.031 1.4310 1451.953 52.3 17.7 65.7 | 93.3 | 63.7 | 40.1 VD-389R-01 27.8 70 389.098 1.4310 3596.724 60.76 9.24 39.5 | 80.2 | 29.8 | 8.5 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-337 Country of origin: DE, German; Compression spring VD-337 Product image - Compression springs VD-337 QR-Code: Compression spring VD-337
