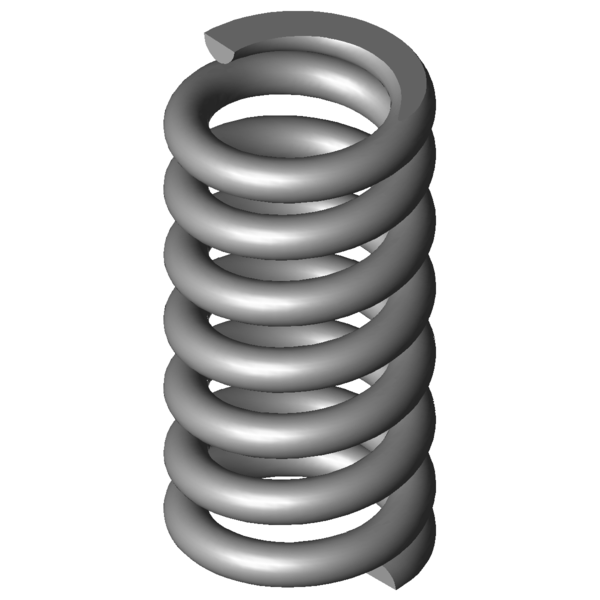

Home » Products » Compression springs » vd-361 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-361 Stainless steel Ø 5 x 25 x 60 mm Scaled prices - Compression spring VD-361 Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0700 EUR 175 2.0700 EUR 250 2.0700 EUR 350 2.0700 EUR Compression spring Buy Product image Compression spring VD-361 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-361 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 30 mm Outer coil diameter Dd 19.1 mm maximum diameter of mandrel Dh 31 mm minimum diameter of bush L0 60 mm unstressed spring length Lk mm buckling length Fn 1191.193 N maximum force in static use Ln 41.28 mm Minimum length in static use sn 18.72 mm Maximum spring deflection in static use Fndyn 1071 N maximum force in dynamic use Lndyn 43.17 mm Minimum length in dynamic use shdyn 3.3 mm Maximum stroke in dynamic use S 10 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 63.636 N/mm Spring rate Weight 91.4243 g weight of one spring Fntol 104 N (+/-) tolerance of maximum force in static use Fndtol 101 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.12 mm (+/-) tolerance of unstressed spring length Price group #AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-361 Stainless steel Ø 5 x 25 x 60 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-361 Stainless steel Ø 5 x 25 x 60 mm Metal spring characteristic download pdf file CAD data Compression spring VD-361 Stainless steel Ø 5 x 25 x 60 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-361 Stainless steel Ø 5 x 25 x 60 mm force-path-calculation Compression spring VD-361 Inquiry formular Compression spring VD-361 Stainless steel Ø 5 x 25 x 60 mm Inquiry formular Compression spring VD-361 Similar compression springs to Compression spring VD-361 Stainless steel Ø 5 x 25 x 60 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-361 1.4310 5 30 60 1191.193 41.28 18.72 5.5 63.636 100.0 | 100.0 | 100.0 | 100.0 D-361 EN 10270-1 5 30 60 1386.889 41.28 18.72 5.5 74.091 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288L 30 47 7.636 1.4310 223.221 17.77 29.23 43.8 | 78.1 | 41.4 | 12.0 VD-294 35.2 58.5 8 1.4310 304.8 20.4 38.1 44.1 | 82.2 | 37.4 | 12.6 VD-288Z-32 28 63 8.247 1.4310 306.232 25.87 37.13 44.6 | 82.9 | 38.1 | 13.0 VD-288Z-42 27 55.1 9.322 1.4310 273.742 25.73 29.37 46.2 | 80.6 | 43.4 | 14.6 VD-313J-03 31.6 62.7 10.3 1.4310 284.653 35.06 27.64 49.8 | 87.5 | 45.8 | 16.2 VD-300 28.2 63.5 10.676 1.4310 385.725 27.37 36.13 47.7 | 84.2 | 42.1 | 16.8 VD-299A 28.2 50.8 10.676 1.4310 250.134 27.37 23.43 49.4 | 80.9 | 50.4 | 16.8 VD-313J-02 31.6 53.9 12.173 1.4310 281.47 30.78 23.12 52.3 | 85.6 | 52.3 | 19.1 VD-325A 36 61 12.429 1.4310 331.705 34.31 26.69 51.9 | 87.2 | 49.0 | 19.5 VD-313J-07 28.6 56 17.102 1.4310 437.589 30.41 25.59 56.2 | 86.9 | 54.9 | 26.9 VD-329B-01 30 70 19.607 1.4310 622.571 38.25 31.75 58.3 | 88.6 | 55.6 | 30.8 VD-331 29 60.5 26.065 1.4310 704.052 33.49 27.01 65.7 | 91.9 | 64.2 | 41.0 VD-339P 32 60.4 31.369 1.4310 714.848 37.61 22.79 71.6 | 94.4 | 71.1 | 49.3 VD-361A 30 72 41.176 1.4310 562.316 58.34 13.66 73.1 | 94.4 | 60.1 | 64.7 VD-361 30 60 63.636 1.4310 1191.193 41.28 18.72 100.0 | 100.0 | 100.0 | 100.0 VD-365RA 28 66 102.083 1.4310 775.017 58.41 7.59 68.8 | 91.2 | 52.8 | 62.3 VD-364P 28 55.5 127.805 1.4310 1337.561 45.03 10.47 71.5 | 92.2 | 72.5 | 49.8 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring VD-361 Country of origin: DE, German; Compression spring VD-361 Product image - Compression springs VD-361 QR-Code: Compression spring VD-361
