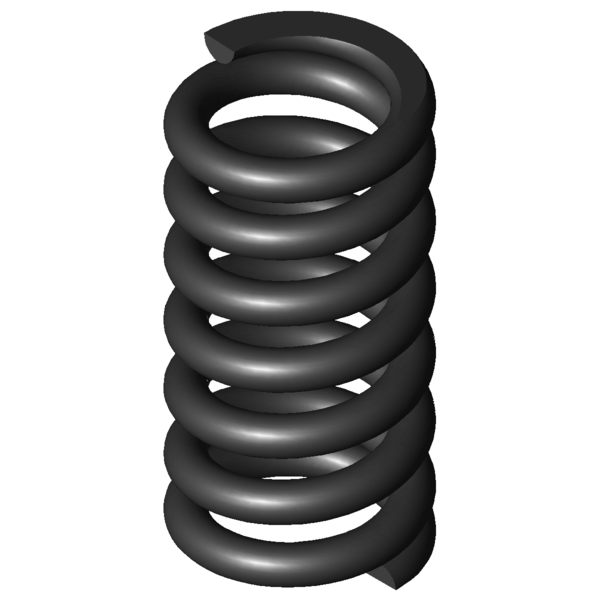

Home » Products » Compression springs » d-361 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-361 Spring steel Ø 5 x 25 x 60 mm Scaled prices - Compression spring D-361 Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 1.8300 EUR 37 1.5400 EUR 75 1.5100 EUR 125 1.4634 EUR 175 1.4586 EUR 250 1.4345 EUR 350 1.4116 EUR Compression spring Buy Product image Compression spring D-361 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-361 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 30 mm Outer coil diameter Dd 19.1 mm maximum diameter of mandrel Dh 31 mm minimum diameter of bush L0 60 mm unstressed spring length Lk mm buckling length Fn 1386.889 N maximum force in static use Ln 41.28 mm Minimum length in static use sn 18.72 mm Maximum spring deflection in static use Fndyn 1246.95 N maximum force in dynamic use Lndyn 43.17 mm Minimum length in dynamic use shdyn 6.51 mm Maximum stroke in dynamic use S 10 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 74.091 N/mm Spring rate Weight 91.4243 g weight of one spring Fntol 104 N (+/-) tolerance of maximum force in static use Fndtol 101 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.12 mm (+/-) tolerance of unstressed spring length Price group AB - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-361 Spring steel Ø 5 x 25 x 60 mm Datasheet download pdf file Metal spring characteristic Compression spring D-361 Spring steel Ø 5 x 25 x 60 mm Metal spring characteristic download pdf file CAD data Compression spring D-361 Spring steel Ø 5 x 25 x 60 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-361 Spring steel Ø 5 x 25 x 60 mm force-path-calculation Compression spring D-361 Inquiry formular Compression spring D-361 Spring steel Ø 5 x 25 x 60 mm Inquiry formular Compression spring D-361 Similar compression springs to Compression spring D-361 Spring steel Ø 5 x 25 x 60 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-361 EN 10270-1 5 30 60 1386.889 41.28 18.72 5.5 74.091 100.0 | 100.0 | 100.0 | 100.0 VD-361 1.4310 5 30 60 1191.193 41.28 18.72 5.5 63.636 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-288L 30 47 8.89 EN 10270-1 259.893 17.77 29.23 43.8 | 78.1 | 41.4 | 12.0 D-294 35.2 58.5 9.314 EN 10270-1 354.874 20.4 38.1 44.1 | 82.2 | 37.4 | 12.6 D-288Z-32 28 63 9.602 EN 10270-1 356.541 25.87 37.13 44.6 | 82.9 | 38.1 | 13.0 D-288Z-42 27 55.1 10.853 EN 10270-1 318.714 25.73 29.37 46.2 | 80.6 | 43.4 | 14.6 D-313J-03 31.6 62.7 11.992 EN 10270-1 331.418 35.06 27.64 49.8 | 87.5 | 45.8 | 16.2 D-300 28.2 63.5 12.43 EN 10270-1 449.094 27.37 36.13 47.7 | 84.2 | 42.1 | 16.8 D-299A 28.2 50.8 12.43 EN 10270-1 291.228 27.37 23.43 49.4 | 80.9 | 50.4 | 16.8 D-313J-02 31.6 53.9 14.172 EN 10270-1 327.711 30.78 23.12 52.3 | 85.6 | 52.3 | 19.1 D-325A 36 61 14.471 EN 10270-1 386.199 34.31 26.69 51.9 | 87.2 | 49.0 | 19.5 D-313J-07 28.6 56 19.911 EN 10270-1 509.479 30.41 25.59 56.2 | 86.9 | 54.9 | 26.9 D-329B-01 30 70 22.828 EN 10270-1 724.851 38.25 31.75 58.3 | 88.6 | 55.6 | 30.8 D-331 29 60.5 30.348 EN 10270-1 819.718 33.49 27.01 65.7 | 91.9 | 64.2 | 41.0 D-339P 32 60.4 36.522 EN 10270-1 832.288 37.61 22.79 71.6 | 94.4 | 71.1 | 49.3 D-361A 30 72 47.941 EN 10270-1 654.697 58.34 13.66 73.1 | 94.4 | 60.1 | 64.7 D-361 30 60 74.091 EN 10270-1 1386.889 41.28 18.72 100.0 | 100.0 | 100.0 | 100.0 D-365RA 28 66 118.854 EN 10270-1 902.341 58.41 7.59 68.8 | 91.2 | 52.8 | 62.3 D-364P 28 55.5 148.802 EN 10270-1 1557.304 45.03 10.47 71.5 | 92.2 | 72.5 | 49.8 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring D-361 Country of origin: DE, German; Compression spring D-361 Product image - Compression springs D-361 QR-Code: Compression spring D-361
