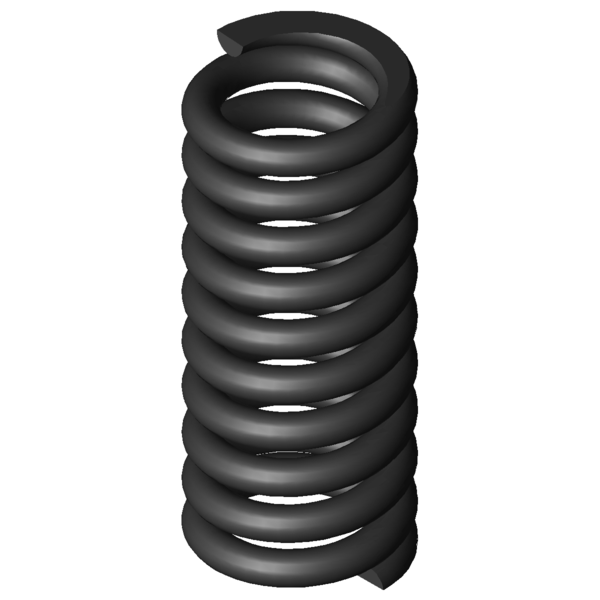

Home » Products » Compression springs » d-361a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-361A Spring steel Ø 5 x 25 x 72 mm Scaled prices - Compression spring D-361A Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 2.1700 EUR 37 1.8100 EUR 75 1.7400 EUR 125 1.7081 EUR 175 1.7063 EUR 250 1.6746 EUR 350 1.6471 EUR Compression spring Buy Product image Compression spring D-361A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-361A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 30 mm Outer coil diameter Dd 19.1 mm maximum diameter of mandrel Dh 31 mm minimum diameter of bush L0 72 mm unstressed spring length Lk mm buckling length Fn 654.697 N maximum force in static use Ln 58.34 mm Minimum length in static use sn 13.66 mm Maximum spring deflection in static use Fndyn 514.888 N maximum force in dynamic use Lndyn 61.26 mm Minimum length in dynamic use shdyn 10.74 mm Maximum stroke in dynamic use S 7.882 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 47.941 N/mm Spring rate Weight 127.994 g weight of one spring Fntol 85.63 N (+/-) tolerance of maximum force in static use Fndtol 83.53 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.58 mm (+/-) tolerance of unstressed spring length Price group AC - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-361A Spring steel Ø 5 x 25 x 72 mm Datasheet download pdf file Metal spring characteristic Compression spring D-361A Spring steel Ø 5 x 25 x 72 mm Metal spring characteristic download pdf file CAD data Compression spring D-361A Spring steel Ø 5 x 25 x 72 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-361A Spring steel Ø 5 x 25 x 72 mm force-path-calculation Compression spring D-361A Inquiry formular Compression spring D-361A Spring steel Ø 5 x 25 x 72 mm Inquiry formular Compression spring D-361A Similar compression springs to Compression spring D-361A Spring steel Ø 5 x 25 x 72 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-361A EN 10270-1 5 30 72 654.697 58.34 13.66 8.5 47.941 100.0 | 100.0 | 100.0 | 100.0 VD-361A 1.4310 5 30 72 562.316 58.34 13.66 8.5 41.176 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-288M 30 70.7 5.658 EN 10270-1 260.136 24.72 45.98 43.8 | 84.7 | 34.7 | 11.8 D-300A 28.2 79.4 7.197 EN 10270-1 264.666 42.62 36.78 45.6 | 82.9 | 38.8 | 15.0 D-298C 33 64 7.339 EN 10270-1 263.853 28.05 35.95 45.2 | 81.3 | 39.1 | 15.3 D-288Z-32 28 63 9.602 EN 10270-1 356.541 25.87 37.13 48.6 | 80.3 | 45.6 | 20.0 D-313J-04 31.6 72.2 10.393 EN 10270-1 341.411 39.35 32.85 52.5 | 88.9 | 46.9 | 21.7 D-313J-03 31.6 62.7 11.992 EN 10270-1 331.418 35.06 27.64 53.2 | 84.7 | 50.0 | 25.0 D-300 28.2 63.5 12.43 EN 10270-1 449.094 27.37 36.13 53.7 | 82.1 | 53.2 | 25.9 D-313J-08 28.6 74.6 14.601 EN 10270-1 521.957 38.85 35.75 59.1 | 87.9 | 59.0 | 30.5 D-313L-03 25 72 19.4 EN 10270-1 532.378 44.56 27.44 63.7 | 85.1 | 65.5 | 40.5 D-329B-01 30 70 22.828 EN 10270-1 724.851 38.25 31.75 68.9 | 92.4 | 66.7 | 47.6 D-334A-03 27 78 25.218 EN 10270-1 779.479 47.09 30.91 68.0 | 87.4 | 64.1 | 52.6 D-331 29 60.5 30.348 EN 10270-1 819.718 33.49 27.01 71.8 | 86.9 | 65.2 | 63.3 D-337 24 72 38.353 EN 10270-1 971.288 46.68 25.33 75.8 | 86.7 | 60.7 | 80.0 D-359A-02 34 68 43.511 EN 10270-1 1021.916 44.51 23.49 82.0 | 94.2 | 61.1 | 90.8 D-361A 30 72 47.941 EN 10270-1 654.697 58.34 13.66 100.0 | 100.0 | 100.0 | 100.0 D-339R-10 27 70 48.9 EN 10270-1 1105.598 47.39 22.61 83.4 | 92.4 | 59.8 | 98.0 D-361 30 60 74.091 EN 10270-1 1386.889 41.28 18.72 73.1 | 94.4 | 60.1 | 64.7 D-364R-48 33.6 66 82.982 EN 10270-1 1640.136 46.24 19.77 67.5 | 90.1 | 54.5 | 57.8 D-365RA 28 66 118.854 EN 10270-1 902.341 58.41 7.59 65.3 | 91.4 | 64.1 | 40.3 D-389P 34 68 225.947 EN 10270-1 2438.149 57.21 10.79 52.9 | 84.7 | 52.9 | 21.2 D-389R-01 27.8 70 453.021 EN 10270-1 4187.614 60.76 9.24 46.4 | 87.1 | 41.6 | 10.6 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring D-361A Country of origin: DE, German; Compression spring D-361A Product image - Compression springs D-361A QR-Code: Compression spring D-361A
