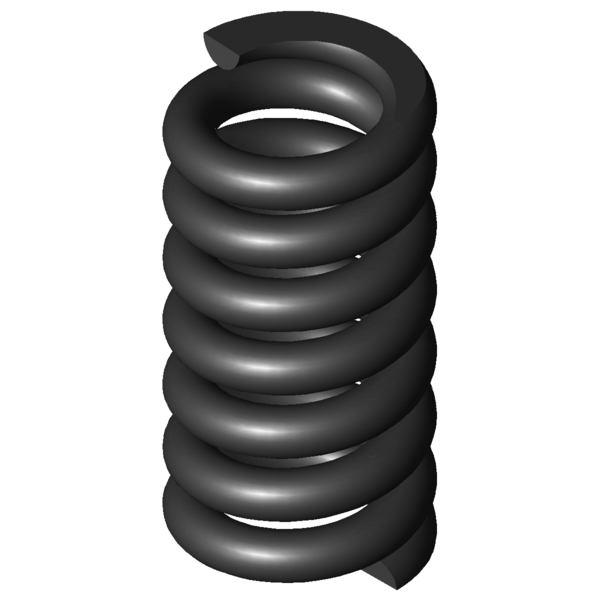

Home » Products » Compression springs » d-364p Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364P Spring steel Ø 5.5 x 22.5 x 55.5 mm Scaled prices - Compression spring D-364P Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 2.1700 EUR 37 1.8100 EUR 75 1.7400 EUR 125 1.7081 EUR 175 1.7063 EUR 250 1.6746 EUR 350 1.6471 EUR Compression spring Buy Product image Compression spring D-364P Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364P Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.5 mm Wire diameter Di mm Inner coil diameter D 22.5 mm Mean coil diameter De 28 mm Outer coil diameter Dd 16 mm maximum diameter of mandrel Dh 29 mm minimum diameter of bush L0 55.5 mm unstressed spring length Lk mm buckling length Fn 1557.304 N maximum force in static use Ln 45.03 mm Minimum length in static use sn 10.47 mm Maximum spring deflection in static use Fndyn 1276.719 N maximum force in dynamic use Lndyn 46.92 mm Minimum length in dynamic use shdyn 5.52 mm Maximum stroke in dynamic use S 9.091 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 148.802 N/mm Spring rate Weight 99.561 g weight of one spring Fntol 174 N (+/-) tolerance of maximum force in static use Fndtol 170 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.02 mm (+/-) tolerance of unstressed spring length Price group AC - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364P Spring steel Ø 5.5 x 22.5 x 55.5 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364P Spring steel Ø 5.5 x 22.5 x 55.5 mm Metal spring characteristic download pdf file CAD data Compression spring D-364P Spring steel Ø 5.5 x 22.5 x 55.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364P Spring steel Ø 5.5 x 22.5 x 55.5 mm force-path-calculation Compression spring D-364P Inquiry formular Compression spring D-364P Spring steel Ø 5.5 x 22.5 x 55.5 mm Inquiry formular Compression spring D-364P Similar compression springs to Compression spring D-364P Spring steel Ø 5.5 x 22.5 x 55.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364P EN 10270-1 5.5 28 55.5 1557.304 45.03 10.47 5.5 148.802 100.0 | 100.0 | 100.0 | 100.0 VD-364P 1.4310 5.5 28 55.5 1337.561 45.03 10.47 5.5 127.805 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-288Z-42 27 55.1 10.853 EN 10270-1 318.714 25.73 29.37 39.6 | 83.4 | 28.1 | 7.3 D-299A 28.2 50.8 12.43 EN 10270-1 291.228 27.37 23.43 41.0 | 83.0 | 31.7 | 8.4 D-300 28.2 63.5 12.43 EN 10270-1 449.094 27.37 36.13 39.6 | 81.6 | 28.9 | 8.4 D-313J-02 31.6 53.9 14.172 EN 10270-1 327.711 30.78 23.12 42.1 | 83.7 | 33.2 | 9.5 D-299 28.2 42.5 19.533 EN 10270-1 444.477 19.75 22.75 42.8 | 78.0 | 37.3 | 13.1 D-313J-07 28.6 56 19.911 EN 10270-1 509.479 30.41 25.59 45.9 | 87.5 | 36.8 | 13.4 D-308A-01 22 56 21.435 EN 10270-1 470.668 34.04 21.96 44.0 | 78.6 | 39.0 | 14.4 D-313L-02 25 57 24.942 EN 10270-1 517.412 36.26 20.74 47.6 | 84.0 | 41.9 | 16.8 D-331 29 60.5 30.348 EN 10270-1 819.718 33.49 27.01 51.0 | 87.0 | 45.7 | 20.4 D-313L 25 48.2 31.745 EN 10270-1 576.821 30.03 18.17 49.7 | 80.5 | 47.3 | 21.3 D-339P 32 60.4 36.522 EN 10270-1 832.288 37.61 22.79 53.8 | 87.1 | 49.7 | 24.6 D-361 30 60 74.091 EN 10270-1 1386.889 41.28 18.72 71.5 | 92.2 | 72.5 | 49.8 D-360A 30 50 74.091 EN 10270-1 645.98 41.28 8.72 67.9 | 91.4 | 62.4 | 49.8 D-365RA 28 66 118.854 EN 10270-1 902.341 58.41 7.59 79.7 | 94.1 | 65.2 | 79.9 D-364P 28 55.5 148.802 EN 10270-1 1557.304 45.03 10.47 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202081; Compression spring D-364P Country of origin: DE, German; Compression spring D-364P Product image - Compression springs D-364P QR-Code: Compression spring D-364P
