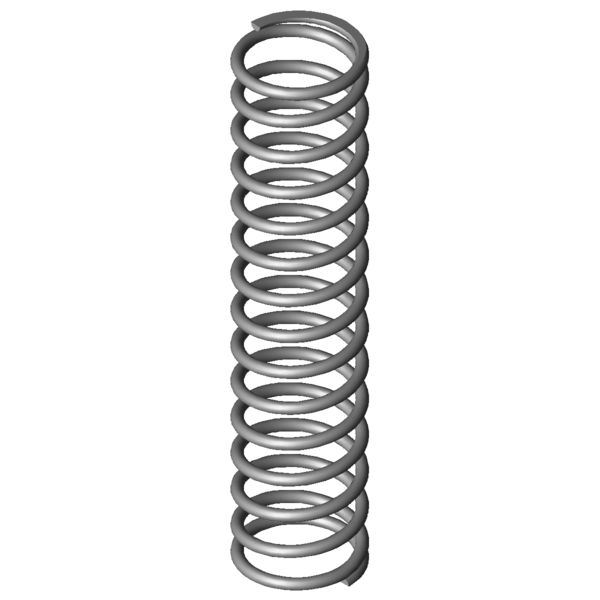

Home » Products » Compression springs » vd-298e Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-298E Stainless steel Ø 3.2 x 29.8 x 148 mm Scaled prices - Compression spring VD-298E Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-298E Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-298E Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 29.8 mm Mean coil diameter De 33 mm Outer coil diameter Dd 25.7 mm maximum diameter of mandrel Dh 34.2 mm minimum diameter of bush L0 148 mm unstressed spring length Lk mm buckling length Fn 227.182 N maximum force in static use Ln 59.54 mm Minimum length in static use sn 88.46 mm Maximum spring deflection in static use Fndyn 214.417 N maximum force in dynamic use Lndyn 64.51 mm Minimum length in dynamic use shdyn 42.97 mm Maximum stroke in dynamic use S 10.726 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 2.568 N/mm Spring rate Weight 92.2504 g weight of one spring Fntol 15.34 N (+/-) tolerance of maximum force in static use Fndtol 15.12 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 3.8 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-298E Stainless steel Ø 3.2 x 29.8 x 148 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-298E Stainless steel Ø 3.2 x 29.8 x 148 mm Metal spring characteristic download pdf file CAD data Compression spring VD-298E Stainless steel Ø 3.2 x 29.8 x 148 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-298E Stainless steel Ø 3.2 x 29.8 x 148 mm force-path-calculation Compression spring VD-298E Inquiry formular Compression spring VD-298E Stainless steel Ø 3.2 x 29.8 x 148 mm Inquiry formular Compression spring VD-298E Similar compression springs to Compression spring VD-298E Stainless steel Ø 3.2 x 29.8 x 148 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-298E 1.4310 3.2 33 148 227.182 59.54 88.46 13.5 2.568 100.0 | 100.0 | 100.0 | 100.0 D-298E EN 10270-1 3.2 33 148 264.505 59.54 88.46 13.5 2.99 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206A-22 34 153 0.052 1.4310 5.278 52.36 100.64 42.1 | 79.2 | 45.1 | 2.0 VD-207JH 34 164 0.152 1.4310 20.949 26 138 40.2 | 78.1 | 36.7 | 5.9 VD-234H 34 120 0.777 1.4310 77.429 20.32 99.68 57.3 | 80.2 | 61.4 | 30.2 VD-268E 31 163 1.094 1.4310 125.006 48.7 114.3 65.5 | 87.6 | 66.2 | 42.6 VD-266 34.5 170 1.227 1.4310 159.653 39.9 130.1 68.0 | 86.9 | 69.1 | 47.8 VD-288N-10 30 135 1.62 1.4310 116.688 62.96 72.04 73.1 | 89.9 | 66.4 | 63.1 VD-288K-13 33 150 1.627 1.4310 165.285 48.42 101.58 79.6 | 95.4 | 79.9 | 63.4 VD-288Z-23 33 157 2.1 1.4310 218.663 52.88 104.13 89.5 | 96.0 | 90.6 | 81.8 VD-298E 33 148 2.568 1.4310 227.182 59.54 88.46 100.0 | 100.0 | 100.0 | 100.0 VD-296 35.2 135 3.294 1.4310 311.624 40.4 94.6 85.4 | 95.0 | 83.2 | 78.0 VD-288Z-34 28 142 3.629 1.4310 329.654 51.16 90.84 81.8 | 91.5 | 83.1 | 70.8 VD-313JA 34 145 4.185 1.4310 349.385 61.51 83.49 78.6 | 94.6 | 79.7 | 61.4 VD-327A 36 141 5.064 1.4310 346.435 72.58 68.42 70.4 | 89.0 | 71.5 | 50.7 VD-324 37 135 6.561 1.4310 533.559 53.68 81.32 64.4 | 86.8 | 67.3 | 39.1 VD-358A 37 160 9.021 1.4310 384.005 117.43 42.57 54.7 | 81.9 | 53.6 | 28.5 VD-339R 32 154 11.131 1.4310 716.467 89.63 64.37 54.5 | 88.1 | 52.2 | 23.1 VD-357A 37 144 12.362 1.4310 687.387 88.4 55.6 50.7 | 83.5 | 48.0 | 20.8 VD-358 37 160 13.351 1.4310 1033.535 82.59 77.41 52.0 | 81.9 | 54.7 | 19.2 VD-359A-07 34 166 14.014 1.4310 896.405 102.04 63.96 50.2 | 83.4 | 48.8 | 18.3 VD-359A-06 34 147 16.016 1.4310 904.413 90.53 56.47 49.1 | 86.8 | 44.5 | 16.0 VD-359A-05 34 127 18.686 1.4310 896.405 79.03 47.97 45.3 | 82.3 | 39.8 | 13.7 VD-363A 30 160 21.212 1.4310 1191.193 103.84 56.16 45.3 | 82.5 | 41.3 | 12.1 VD-364R-93 39 152 23.374 1.4310 1103.84 104.78 47.22 42.1 | 78.4 | 37.0 | 11.0 VD-364R-09 39 152 25.77 1.4310 1628.672 88.8 63.2 43.9 | 79.1 | 42.7 | 10.0 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-298E Country of origin: DE, German; Compression spring VD-298E Product image - Compression springs VD-298E QR-Code: Compression spring VD-298E
