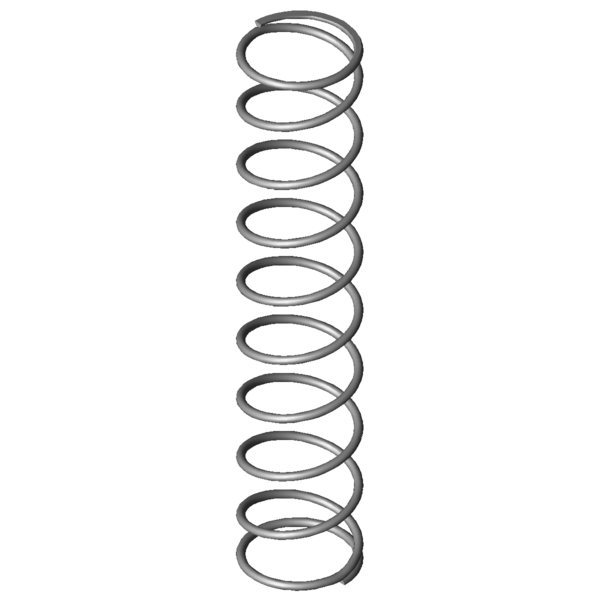

Home » Products » Compression springs » vd-266 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-266 Stainless steel Ø 2.5 x 32 x 170 mm Scaled prices - Compression spring VD-266 Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-266 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-266 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 34.5 mm Outer coil diameter Dd 28.7 mm maximum diameter of mandrel Dh 35.3 mm minimum diameter of bush L0 170 mm unstressed spring length Lk 62.66 mm buckling length Fn 159.653 N maximum force in static use Ln 39.9 mm Minimum length in static use sn 130.1 mm Maximum spring deflection in static use Fndyn 143.454 N maximum force in dynamic use Lndyn 53.1 mm Minimum length in dynamic use shdyn 30.1 mm Maximum stroke in dynamic use S 19.706 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 1.227 N/mm Spring rate Weight 40.9581 g weight of one spring Fntol 9.59 N (+/-) tolerance of maximum force in static use Fndtol 9.51 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 4.66 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-266 Stainless steel Ø 2.5 x 32 x 170 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-266 Stainless steel Ø 2.5 x 32 x 170 mm Metal spring characteristic download pdf file CAD data Compression spring VD-266 Stainless steel Ø 2.5 x 32 x 170 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-266 Stainless steel Ø 2.5 x 32 x 170 mm force-path-calculation Compression spring VD-266 Inquiry formular Compression spring VD-266 Stainless steel Ø 2.5 x 32 x 170 mm Inquiry formular Compression spring VD-266 Similar compression springs to Compression spring VD-266 Stainless steel Ø 2.5 x 32 x 170 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-266 1.4310 2.5 34.5 170 159.653 39.9 130.1 8.5 1.227 100.0 | 100.0 | 100.0 | 100.0 D-266 EN 10270-1 2.5 34.5 170 182.881 42 128 8.5 1.429 92.9 | 100.0 | 92.8 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206A-22 34 153 0.052 1.4310 5.278 52.36 100.64 42.0 | 81.5 | 40.3 | 4.3 VD-207JC 35.5 176 0.133 1.4310 19.776 26.85 149.15 48.4 | 84.6 | 49.8 | 10.8 VD-207JH 34 164 0.152 1.4310 20.949 26 138 50.4 | 85.0 | 53.7 | 12.4 VD-232H 30 181 0.431 1.4310 65.662 28.71 152.29 60.9 | 84.3 | 63.3 | 35.1 VD-234N-10 30 170 0.472 1.4310 60.64 41.64 128.36 65.3 | 89.0 | 68.3 | 38.5 VD-268E 31 163 1.094 1.4310 125.006 48.7 114.3 89.1 | 95.2 | 83.1 | 89.1 VD-266 34.5 170 1.227 1.4310 159.653 39.9 130.1 100.0 | 100.0 | 100.0 | 100.0 VD-288Z-14 37 190 1.443 1.4310 195.509 54.48 135.53 87.5 | 88.7 | 88.8 | 85.1 VD-297A 35.2 190 1.514 1.4310 165.881 80.4 109.6 86.6 | 88.5 | 90.2 | 81.1 VD-288K-13 33 150 1.627 1.4310 165.285 48.42 101.58 84.6 | 91.1 | 87.3 | 75.4 VD-288Z-23 33 157 2.1 1.4310 218.663 52.88 104.13 75.1 | 90.4 | 76.5 | 58.4 VD-297 35.2 190 2.24 1.4310 299.264 56.4 133.6 72.9 | 88.5 | 75.4 | 54.8 VD-298E 33 148 2.568 1.4310 227.182 59.54 88.46 68.0 | 86.9 | 69.1 | 47.8 VD-328A 36 170 3.695 1.4310 271.575 96.5 73.5 59.0 | 86.1 | 57.6 | 33.2 VD-313JA 34 145 4.185 1.4310 349.385 61.51 83.49 56.2 | 84.4 | 54.9 | 29.3 VD-328 36 170 5.469 1.4310 558.906 67.8 102.2 54.0 | 86.1 | 53.6 | 22.4 VD-358A 37 160 9.021 1.4310 384.005 117.43 42.57 43.3 | 79.1 | 37.1 | 13.6 VD-339R 32 154 11.131 1.4310 716.467 89.63 64.37 42.2 | 79.6 | 35.9 | 11.0 VD-359A-08 34 186 12.457 1.4310 902.634 113.54 72.46 42.2 | 80.0 | 36.7 | 9.9 VD-358 37 160 13.351 1.4310 1033.535 82.59 77.41 41.9 | 79.1 | 37.5 | 9.2 VD-359A-07 34 166 14.014 1.4310 896.405 102.04 63.96 41.4 | 82.1 | 33.5 | 8.8 VD-364N 38 177 15.048 1.4310 1019.648 109.24 67.76 39.8 | 77.4 | 33.9 | 8.2 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring VD-266 Country of origin: DE, German; Compression spring VD-266 Product image - Compression springs VD-266 QR-Code: Compression spring VD-266
