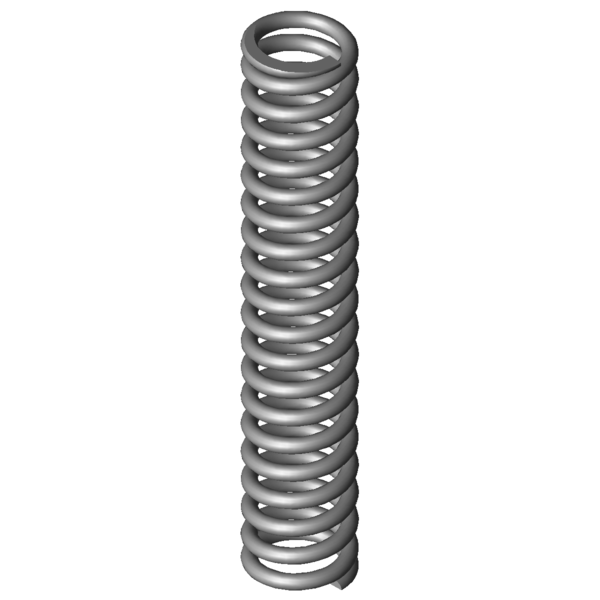

Home » Products » Compression springs » vd-359a-08 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-359A-08 Stainless steel Ø 5 x 29 x 186 mm Scaled prices - Compression spring VD-359A-08 Quantity Single price [EUR] 1 13.8800 EUR 2 11.0500 EUR 3 6.5900 EUR 7 4.6100 EUR 17 2.9500 EUR 37 2.4600 EUR 75 2.3800 EUR 125 2.3800 EUR 175 2.3800 EUR 250 2.3800 EUR 350 2.3800 EUR Compression spring Buy Product image Compression spring VD-359A-08 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-359A-08 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 29 mm Mean coil diameter De 34 mm Outer coil diameter Dd 23.1 mm maximum diameter of mandrel Dh 35.2 mm minimum diameter of bush L0 186 mm unstressed spring length Lk 123.47 mm buckling length Fn 902.634 N maximum force in static use Ln 113.54 mm Minimum length in static use sn 72.46 mm Maximum spring deflection in static use Fndyn 818.316 N maximum force in dynamic use Lndyn 120.31 mm Minimum length in dynamic use shdyn 21.42 mm Maximum stroke in dynamic use S 10.056 mm pitch of spring n 18 pc. number of active coils nt pc. total number of coils R 12.457 N/mm Spring rate Weight 282.8057 g weight of one spring Fntol 66.3 N (+/-) tolerance of maximum force in static use Fndtol 64.91 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 3.45 mm (+/-) tolerance of unstressed spring length Price group #AH - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-359A-08 Stainless steel Ø 5 x 29 x 186 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-359A-08 Stainless steel Ø 5 x 29 x 186 mm Metal spring characteristic download pdf file CAD data Compression spring VD-359A-08 Stainless steel Ø 5 x 29 x 186 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-359A-08 Stainless steel Ø 5 x 29 x 186 mm force-path-calculation Compression spring VD-359A-08 Inquiry formular Compression spring VD-359A-08 Stainless steel Ø 5 x 29 x 186 mm Inquiry formular Compression spring VD-359A-08 Similar compression springs to Compression spring VD-359A-08 Stainless steel Ø 5 x 29 x 186 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-359A-08 1.4310 5 34 186 902.634 113.54 72.46 18 12.457 80.8 | 95.0 | 81.5 | 65.8 D-359A-08 EN 10270-1 5 34 186 1050.923 113.54 72.46 18 14.504 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-268E 31 163 1.094 1.4310 125.006 48.7 114.3 41.2 | 76.3 | 38.6 | 8.8 VD-266 34.5 170 1.227 1.4310 159.653 39.9 130.1 42.2 | 80.0 | 36.7 | 9.9 VD-288Z-14 37 190 1.443 1.4310 195.509 54.48 135.53 44.1 | 83.3 | 37.6 | 11.6 VD-297A 35.2 190 1.514 1.4310 165.881 80.4 109.6 41.9 | 81.3 | 36.3 | 8.0 VD-288K-13 33 150 1.627 1.4310 165.285 48.42 101.58 45.3 | 77.9 | 44.8 | 13.1 VD-288O 30 189 1.724 1.4310 223.32 59.48 129.52 42.3 | 83.7 | 34.1 | 9.1 VD-288Z-23 33 157 2.1 1.4310 218.663 52.88 104.13 43.5 | 79.4 | 40.0 | 11.1 VD-297 35.2 190 2.24 1.4310 299.264 56.4 133.6 43.2 | 81.3 | 36.5 | 11.8 VD-328A 36 170 3.695 1.4310 271.575 96.5 73.5 60.9 | 88.6 | 64.3 | 29.7 VD-313JA 34 145 4.185 1.4310 349.385 61.51 83.49 59.9 | 83.3 | 62.7 | 33.6 VD-328 36 170 5.469 1.4310 558.906 67.8 102.2 66.3 | 88.6 | 66.4 | 43.9 VD-334A 29 185 6.372 1.4310 463.381 112.27 72.73 62.8 | 91.3 | 63.4 | 33.7 VD-334 29 185 7.749 1.4310 707.222 93.74 91.26 65.5 | 91.3 | 64.3 | 41.0 VD-359A-09 34 206 11.212 1.4310 907.617 125.05 80.95 93.8 | 96.8 | 94.5 | 90.0 VD-359A-08 34 186 12.457 1.4310 902.634 113.54 72.46 80.8 | 95.0 | 81.5 | 65.8 VD-359A-07 34 166 14.014 1.4310 896.405 102.04 63.96 84.5 | 93.5 | 85.9 | 74.1 VD-364N 38 177 15.048 1.4310 1019.648 109.24 67.76 88.5 | 91.8 | 91.0 | 82.8 VD-364A 30 180 15.556 1.4310 653.819 137.97 42.03 80.4 | 100.0 | 59.1 | 82.2 VD-359A-06 34 147 16.016 1.4310 904.413 90.53 56.47 86.6 | 93.0 | 88.9 | 77.8 VD-364 30 180 18.919 1.4310 1225.591 115.22 64.78 100.0 | 100.0 | 100.0 | 100.0 VD-364R-10 39 178 21.647 1.4310 1627.847 102.8 75.2 74.4 | 89.7 | 75.9 | 57.5 VD-389A-10 39 178 34.883 1.4310 1763.189 127.45 50.55 60.7 | 85.8 | 60.5 | 35.7 VD-389R 34 166 68.862 1.4310 2081.596 135.77 30.23 54.7 | 84.0 | 52.8 | 27.5 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring VD-359A-08 Country of origin: DE, German; Compression spring VD-359A-08 Product image - Compression springs VD-359A-08 QR-Code: Compression spring VD-359A-08
