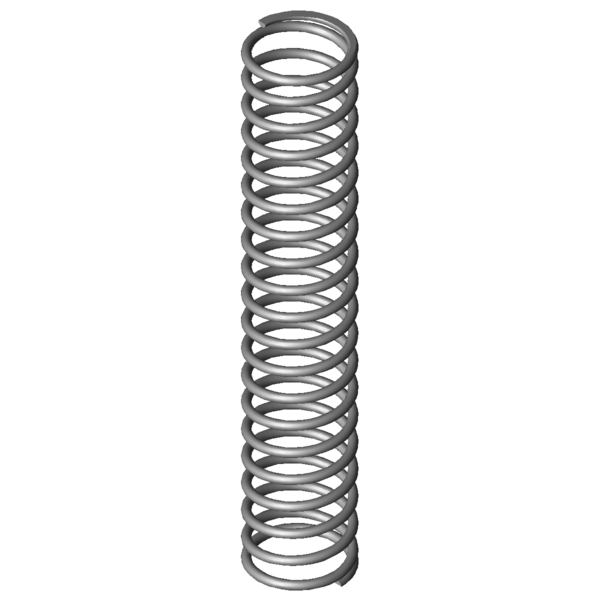

Home » Products » Compression springs » vd-297a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-297A Stainless steel Ø 3.2 x 32 x 190 mm Scaled prices - Compression spring VD-297A Quantity Single price [EUR] 1 6.3100 EUR 2 4.4500 EUR 3 4.2400 EUR 7 3.4500 EUR 17 2.2200 EUR 37 1.7500 EUR 75 1.6000 EUR Compression spring Buy Product image Compression spring VD-297A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-297A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 35.2 mm Outer coil diameter Dd 27.8 mm maximum diameter of mandrel Dh 36.9 mm minimum diameter of bush L0 190 mm unstressed spring length Lk 110.5 mm buckling length Fn 165.881 N maximum force in static use Ln 80.4 mm Minimum length in static use sn 109.6 mm Maximum spring deflection in static use Fndyn 154.681 N maximum force in dynamic use Lndyn 87.8 mm Minimum length in dynamic use shdyn 84.37 mm Maximum stroke in dynamic use S 10.097 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 1.514 N/mm Spring rate Weight 131.0159 g weight of one spring Fntol 13.22 N (+/-) tolerance of maximum force in static use Fndtol 13.02 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 5.86 mm (+/-) tolerance of unstressed spring length Price group S - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-297A Stainless steel Ø 3.2 x 32 x 190 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-297A Stainless steel Ø 3.2 x 32 x 190 mm Metal spring characteristic download pdf file CAD data Compression spring VD-297A Stainless steel Ø 3.2 x 32 x 190 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-297A Stainless steel Ø 3.2 x 32 x 190 mm force-path-calculation Compression spring VD-297A Inquiry formular Compression spring VD-297A Stainless steel Ø 3.2 x 32 x 190 mm Inquiry formular Compression spring VD-297A Similar compression springs to Compression spring VD-297A Stainless steel Ø 3.2 x 32 x 190 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-297A 1.4310 3.2 35.2 190 165.881 80.4 109.6 18.5 1.514 100.0 | 100.0 | 100.0 | 100.0 D-297A EN 10270-1 3.2 35.2 190 193.133 80.4 109.6 18.5 1.762 92.9 | 100.0 | 92.9 | 85.9 D-297 EN 10270-1 3.2 35.2 190 348.429 56.4 133.6 12.5 2.608 74.3 | 100.0 | 64.8 | 58.0 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206A-22 34 153 0.052 1.4310 5.278 52.36 100.64 41.5 | 73.6 | 47.5 | 3.5 VD-207JC 35.5 176 0.133 1.4310 19.776 26.85 149.15 43.7 | 79.6 | 42.7 | 8.8 VD-207JH 34 164 0.152 1.4310 20.949 26 138 44.2 | 76.6 | 46.0 | 10.0 VD-232H 30 181 0.431 1.4310 65.662 28.71 152.29 54.4 | 78.9 | 55.8 | 28.5 VD-234J 34 205 0.45 1.4310 77.716 32.2 172.8 56.3 | 83.9 | 55.1 | 29.7 VD-234O 30 182 0.472 1.4310 66.309 41.64 140.36 57.1 | 81.2 | 59.0 | 31.2 VD-266 34.5 170 1.227 1.4310 159.653 39.9 130.1 86.6 | 88.5 | 90.2 | 81.1 VD-288Z-14 37 190 1.443 1.4310 195.509 54.48 135.53 91.5 | 96.3 | 82.9 | 95.3 VD-297A 35.2 190 1.514 1.4310 165.881 80.4 109.6 100.0 | 100.0 | 100.0 | 100.0 VD-297B 35.2 230 1.6 1.4310 245.76 76.4 153.6 86.1 | 94.2 | 69.4 | 94.6 VD-291 43.2 190 1.687 1.4310 248.443 42.7 147.31 84.7 | 93.8 | 70.6 | 89.7 VD-288O 30 189 1.724 1.4310 223.32 59.48 129.52 86.0 | 90.7 | 79.4 | 87.8 VD-288Z-23 33 157 2.1 1.4310 218.663 52.88 104.13 82.5 | 90.0 | 85.4 | 72.1 VD-297 35.2 190 2.24 1.4310 299.264 56.4 133.6 78.8 | 100.0 | 68.7 | 67.6 VD-328A 36 170 3.695 1.4310 271.575 96.5 73.5 64.7 | 89.1 | 64.1 | 41.0 VD-328 36 170 5.469 1.4310 558.906 67.8 102.2 59.4 | 89.1 | 61.5 | 27.7 VD-334A 29 185 6.372 1.4310 463.381 112.27 72.73 53.8 | 86.6 | 51.1 | 23.8 VD-334 29 185 7.749 1.4310 707.222 93.74 91.26 53.2 | 86.6 | 53.4 | 19.5 VD-358A 37 160 9.021 1.4310 384.005 117.43 42.57 46.3 | 81.1 | 41.0 | 16.8 VD-359A-09 34 206 11.212 1.4310 907.617 125.05 80.95 47.9 | 84.3 | 46.1 | 13.5 VD-359A-08 34 186 12.457 1.4310 902.634 113.54 72.46 46.9 | 86.2 | 42.2 | 12.1 VD-358 37 160 13.351 1.4310 1033.535 82.59 77.41 45.3 | 81.1 | 43.3 | 11.3 VD-359A-07 34 166 14.014 1.4310 896.405 102.04 63.96 44.0 | 82.7 | 38.4 | 10.8 VD-364N 38 177 15.048 1.4310 1019.648 109.24 67.76 43.5 | 81.3 | 39.0 | 10.1 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-297A Country of origin: DE, German; Compression spring VD-297A Product image - Compression springs VD-297A QR-Code: Compression spring VD-297A
