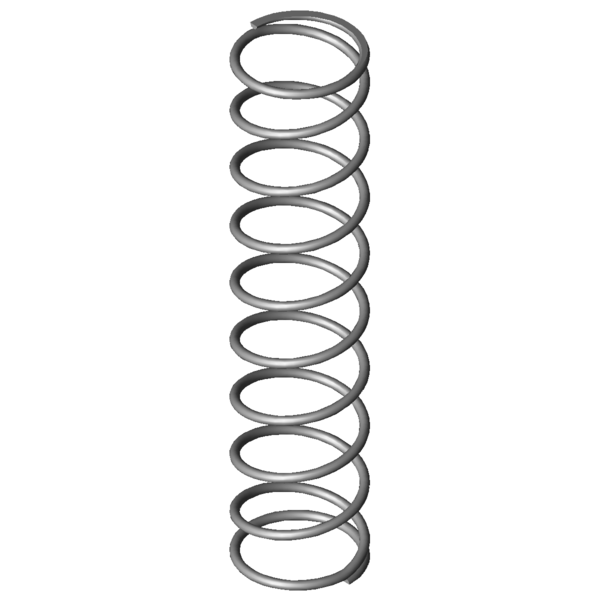

Home » Products » Compression springs » vd-291 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-291 Stainless steel Ø 3.2 x 40 x 190 mm Scaled prices - Compression spring VD-291 Quantity Single price [EUR] 1 6.1900 EUR 2 4.3600 EUR 3 4.1600 EUR 7 3.3600 EUR 17 2.1300 EUR 37 1.6200 EUR 75 1.5200 EUR 125 1.2327 EUR 175 1.1268 EUR 250 1.0518 EUR 350 0.9700 EUR 450 0.9095 EUR Compression spring Buy Product image Compression spring VD-291 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-291 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 40 mm Mean coil diameter De 43.2 mm Outer coil diameter Dd 35.8 mm maximum diameter of mandrel Dh 45.3 mm minimum diameter of bush L0 190 mm unstressed spring length Lk mm buckling length Fn 248.443 N maximum force in static use Ln 42.7 mm Minimum length in static use sn 147.31 mm Maximum spring deflection in static use Fndyn 223.473 N maximum force in dynamic use Lndyn 57.5 mm Minimum length in dynamic use shdyn 30.94 mm Maximum stroke in dynamic use S 21.976 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 1.687 N/mm Spring rate Weight 83.8821 g weight of one spring Fntol 14.55 N (+/-) tolerance of maximum force in static use Fndtol 14.41 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 5.2 mm (+/-) tolerance of unstressed spring length Price group R - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-291 Stainless steel Ø 3.2 x 40 x 190 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-291 Stainless steel Ø 3.2 x 40 x 190 mm Metal spring characteristic download pdf file CAD data Compression spring VD-291 Stainless steel Ø 3.2 x 40 x 190 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-291 Stainless steel Ø 3.2 x 40 x 190 mm force-path-calculation Compression spring VD-291 Inquiry formular Compression spring VD-291 Stainless steel Ø 3.2 x 40 x 190 mm Inquiry formular Compression spring VD-291 Similar compression springs to Compression spring VD-291 Stainless steel Ø 3.2 x 40 x 190 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-291 1.4310 3.2 43.2 190 248.443 42.7 147.31 8.5 1.687 100.0 | 100.0 | 100.0 | 100.0 D-291 EN 10270-1 3.2 43.2 190 289.258 42.7 147.31 8.5 1.964 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JC 35.5 176 0.133 1.4310 19.776 26.85 149.15 45.0 | 73.9 | 53.4 | 7.9 VD-263V-21 46 208 0.489 1.4310 83.036 38.03 169.97 58.9 | 87.8 | 60.0 | 29.0 VD-288X-22 48 203 0.915 1.4310 146.72 42.66 160.34 74.1 | 92.4 | 75.5 | 54.3 VD-289C-03 48 176 1.2 1.4310 158.083 44.32 131.68 80.6 | 94.2 | 76.5 | 71.2 VD-288Z-14 37 190 1.443 1.4310 195.509 54.48 135.53 88.0 | 93.1 | 85.3 | 85.5 VD-297A 35.2 190 1.514 1.4310 165.881 80.4 109.6 84.7 | 93.8 | 70.6 | 89.7 VD-313E-13 48 200 1.679 1.4310 243.442 55.01 144.99 96.4 | 91.3 | 98.2 | 99.6 VD-291 43.2 190 1.687 1.4310 248.443 42.7 147.31 100.0 | 100.0 | 100.0 | 100.0 VD-322A 44 235 1.892 1.4310 254.459 100.5 134.5 90.0 | 86.3 | 94.5 | 89.1 VD-297 35.2 190 2.24 1.4310 299.264 56.4 133.6 85.3 | 93.8 | 86.9 | 75.3 VD-322 44 235 2.8 1.4310 460.6 70.5 164.5 72.8 | 86.3 | 71.7 | 60.2 VD-313H 40 155 3.208 1.4310 336.599 50.06 104.94 70.9 | 87.7 | 72.5 | 52.6 VD-339M 50 187 4.01 1.4310 498.87 62.58 124.42 64.8 | 85.3 | 67.1 | 42.1 VD-321 44 160 4.118 1.4310 450.882 50.5 109.5 64.4 | 87.5 | 64.7 | 41.0 VD-353A 45 205 4.619 1.4310 389.695 120.63 84.37 60.4 | 84.2 | 60.5 | 36.5 VD-339N-06 41 165 5.903 1.4310 522.707 76.45 88.55 55.6 | 84.3 | 53.8 | 28.6 VD-353 45 205 6.836 1.4310 822.021 84.75 120.25 54.9 | 84.2 | 55.9 | 24.7 VD-364J-24 48 185 8.344 1.4310 769.33 92.8 92.2 49.8 | 81.9 | 47.4 | 20.2 VD-364R-84 46 220 9.578 1.4310 751.85 141.5 78.5 46.2 | 77.9 | 43.2 | 17.6 VD-383A 46.3 195 11.642 1.4310 548.878 147.85 47.15 44.5 | 80.5 | 38.6 | 14.5 VD-359A-08 34 186 12.457 1.4310 902.634 113.54 72.46 44.0 | 80.2 | 38.4 | 13.5 VD-364N 38 177 15.048 1.4310 1019.648 109.24 67.76 42.1 | 79.8 | 35.2 | 11.2 VD-383 46.3 195 17.23 1.4310 1568.138 103.99 91.01 43.0 | 80.5 | 38.8 | 9.8 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring VD-291 Country of origin: DE, German; Compression spring VD-291 Product image - Compression springs VD-291 QR-Code: Compression spring VD-291
