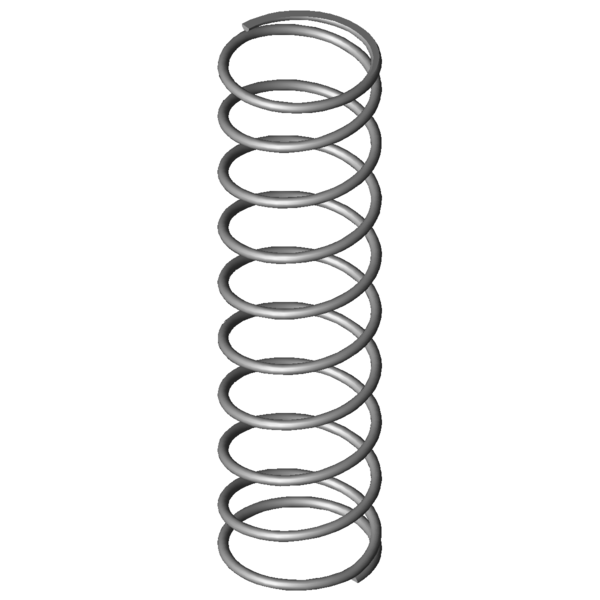

Home » Products » Compression springs » vd-289c-03 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-289C-03 Stainless steel Ø 3.2 x 44.8 x 176 mm Scaled prices - Compression spring VD-289C-03 Quantity Single price [EUR] 1 6.0600 EUR 2 4.2700 EUR 3 4.0700 EUR 7 3.2700 EUR 17 1.9600 EUR 37 1.5300 EUR 75 1.4100 EUR 125 1.1143 EUR 175 1.0455 EUR 250 0.9455 EUR 350 0.8716 EUR 450 0.8148 EUR Compression spring Buy Product image Compression spring VD-289C-03 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-289C-03 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 44.8 mm Mean coil diameter De 48 mm Outer coil diameter Dd 40.4 mm maximum diameter of mandrel Dh 50 mm minimum diameter of bush L0 176 mm unstressed spring length Lk mm buckling length Fn 158.083 N maximum force in static use Ln 44.32 mm Minimum length in static use sn 131.68 mm Maximum spring deflection in static use Fndyn 151.645 N maximum force in dynamic use Lndyn 49.68 mm Minimum length in dynamic use shdyn 63.08 mm Maximum stroke in dynamic use S 20.329 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 1.2 N/mm Spring rate Weight 93.948 g weight of one spring Fntol 12.67 N (+/-) tolerance of maximum force in static use Fndtol 12.56 N (+/-) tolerance of maximum dynamic force Detol 0.8 mm (+/-) tolerances of outer coil diameter L0tol 7.09 mm (+/-) tolerance of unstressed spring length Price group Q - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-289C-03 Stainless steel Ø 3.2 x 44.8 x 176 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-289C-03 Stainless steel Ø 3.2 x 44.8 x 176 mm Metal spring characteristic download pdf file CAD data Compression spring VD-289C-03 Stainless steel Ø 3.2 x 44.8 x 176 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-289C-03 Stainless steel Ø 3.2 x 44.8 x 176 mm force-path-calculation Compression spring VD-289C-03 Inquiry formular Compression spring VD-289C-03 Stainless steel Ø 3.2 x 44.8 x 176 mm Inquiry formular Compression spring VD-289C-03 Similar compression springs to Compression spring VD-289C-03 Stainless steel Ø 3.2 x 44.8 x 176 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-289C-03 1.4310 3.2 48 176 158.083 44.32 131.68 8.5 1.2 100.0 | 100.0 | 100.0 | 100.0 D-289C-03 EN 10270-1 3.2 48 176 184.054 44.32 131.68 8.5 1.398 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263V-21 46 208 0.489 1.4310 83.036 38.03 169.97 64.0 | 86.2 | 65.0 | 40.7 VD-288X-22 48 203 0.915 1.4310 146.72 42.66 160.34 85.7 | 93.5 | 87.5 | 76.2 VD-288H 48 161 1.059 1.4310 140.243 28.56 132.44 91.8 | 93.0 | 94.1 | 88.2 VD-289C-03 48 176 1.2 1.4310 158.083 44.32 131.68 100.0 | 100.0 | 100.0 | 100.0 VD-313E-13 48 200 1.679 1.4310 243.442 55.01 144.99 80.6 | 92.3 | 77.9 | 71.5 VD-291 43.2 190 1.687 1.4310 248.443 42.7 147.31 80.6 | 94.2 | 76.5 | 71.2 VD-313E-12 48 160 2.099 1.4310 240.42 45.45 114.55 75.6 | 93.3 | 76.4 | 57.2 VD-318D 49 156 2.892 1.4310 301.184 51.85 104.15 65.4 | 88.9 | 65.8 | 41.5 VD-339M 50 187 4.01 1.4310 498.87 62.58 124.42 60.0 | 87.1 | 63.1 | 29.9 VD-321 44 160 4.118 1.4310 450.882 50.5 109.5 58.6 | 87.5 | 59.1 | 29.2 VD-339L-10 50 160 4.481 1.4310 461.841 56.94 103.06 56.3 | 86.0 | 56.2 | 26.8 VD-353A 45 205 4.619 1.4310 389.695 120.63 84.37 53.2 | 81.2 | 52.3 | 26.0 VD-339N-06 41 165 5.903 1.4310 522.707 76.45 88.55 50.8 | 83.4 | 48.7 | 20.3 VD-353 45 205 6.836 1.4310 822.021 84.75 120.25 51.3 | 81.2 | 55.3 | 17.6 VD-364J-04 56 175 7.314 1.4310 780.11 68.34 106.66 49.4 | 81.1 | 50.6 | 16.4 VD-364J-24 48 185 8.344 1.4310 769.33 92.8 92.2 51.2 | 86.0 | 47.6 | 20.1 VD-383A 46.3 195 11.642 1.4310 548.878 147.85 47.15 45.5 | 83.7 | 38.4 | 14.4 VD-364J-23 48 135 12.271 1.4310 838.71 66.65 68.35 41.2 | 78.3 | 35.4 | 9.8 VD-377 56.3 175 12.973 1.4310 1277.006 76.56 98.44 43.8 | 78.5 | 43.6 | 9.3 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-289C-03 Country of origin: DE, German; Compression spring VD-289C-03 Product image - Compression springs VD-289C-03 QR-Code: Compression spring VD-289C-03
